C13ENTM50.10

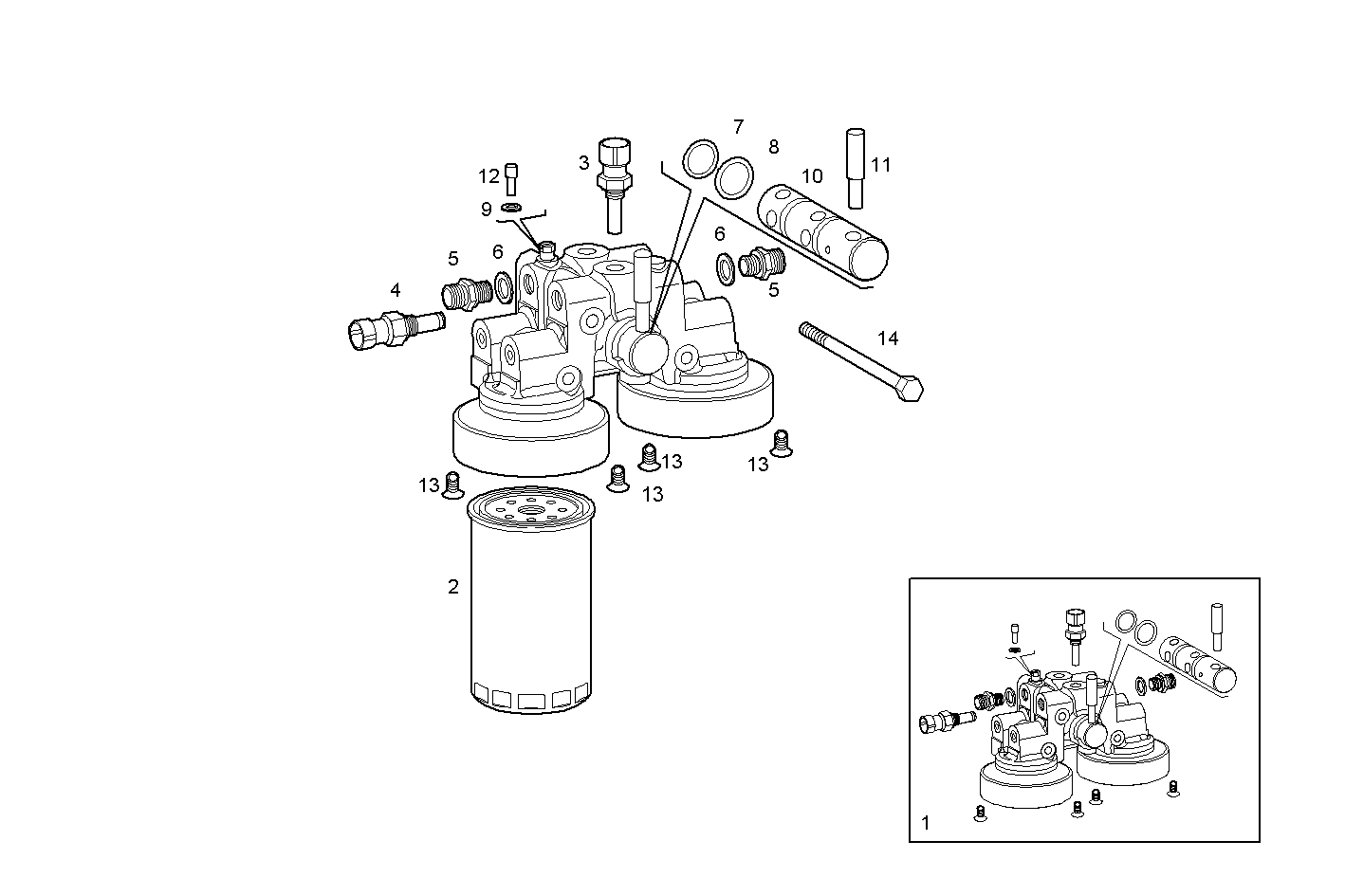

A15010504 DOUBLE FUEL FILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 8036586 | FILTER SUPPORT ASSY |
| 2 | 2991585 | FUEL FILTER ELEM. |
| 3 | 500382599 | TEMP. TRANSMITTER PRESS. & TEMPER. |
| 4 | 504080406 | TRANSMITTER |
| 5 | 41905554 | PIPE SOCKET M14X1,5 - M16X1,5 |
| 6 | 98474308 | SEAL GASKET Ø14X22 MM |
| 7 | 17282089 | O-RING dia 20,2x2,62 |
| 8 | 17282289 | O-RING dia 23,4x2,68 |
| 9 | 10297760 | SEAL GASKET Ø6,2 MM |
| 10 | 8036552 | LEVER |
| 11 | 8009717 | HANDLE BALL |
| 12 | 8033457 | DRAIN SCREW |
| 13 | 17342524 | C'SUNK SCREW M5X10 |
| 14 | 16598425 | HEXAGON BOLT M8X110 MM |
