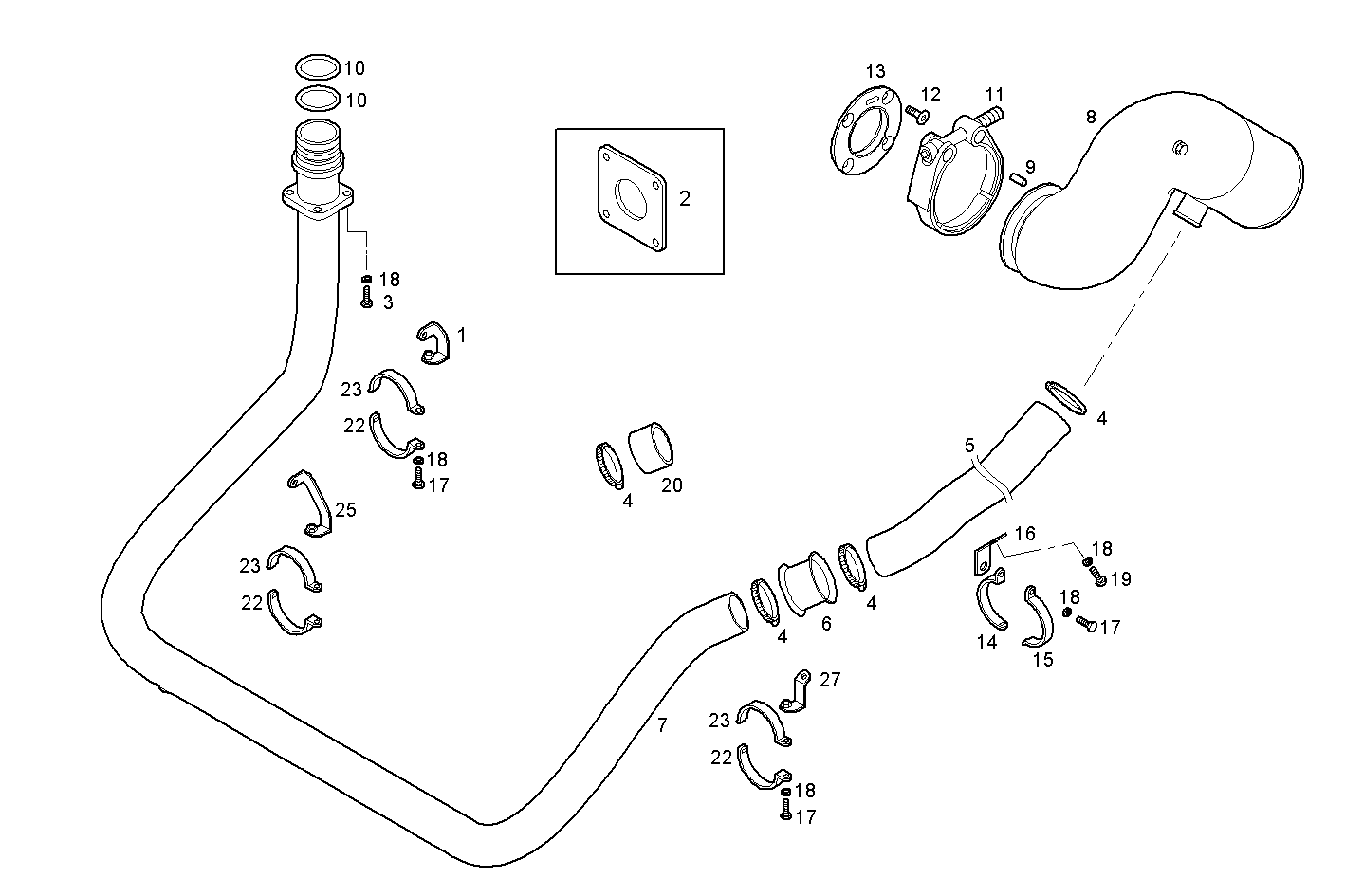

| Item |
Part number |
Description |
|
1 |
8042153 |
FASTENING BRACKET |
|
2 |
8039361 |
FLAT ENGINE GASKET |
|
3 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
4 |
17765093 |
CLIP Ø60/80 MM |
|
5 |
8041337 |
HOSE |
|
6 |
8042966 |
RUBBER SLEEVE |
|
7 |
8042520 |
WATER PIPE |
|
8 |
8044447 |
MARINE EXHAUST PIPE |
|
9 |
17238424 |
PIN |
|
10 |
17290481 |
O-RING 3,53x69,44 [UP TO # 328594] |
|
11 |
504064329 |
CLIP |
|
12 |
17345224 |
SOCKET-HEAD SCREW M10X30 |
|
13 |
8042164 |
FLANGE |
|
14 |
8013655 |
CLAMP |
|
15 |
8013656 |
CLAMP |
|
16 |
8042299 |
RETAINER |
|
17 |
16605424 |
SCREW M8X16 MM (8.8) |
|
18 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
19 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
20 |
8044778 |
RUBBER SLEEVE |
|
22 |
8017811 |
CLAMP |
|
23 |
8017810 |
CLAMP |
|
25 |
8042249 |
FASTENING BRACKET |
|
27 |
8041570 |
FASTENING BRACKET |
