C13ENTM50.10

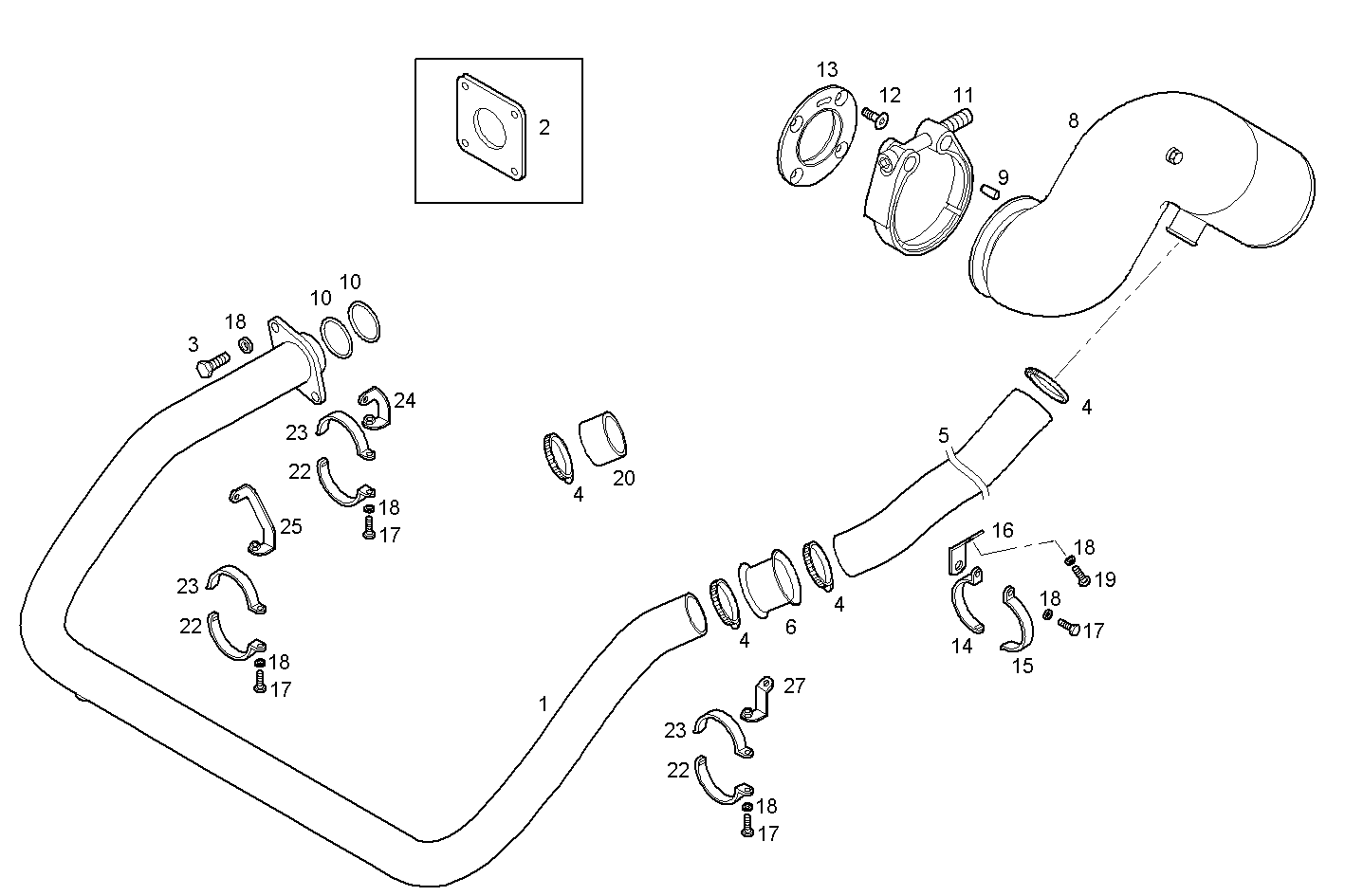

A40050520 TURNING EXHAUST ELBOW

Iveco/FPT TURNING EXHAUST ELBOW

Item Part number Description
1 8041630 WATER PIPE
2 8039361 FLAT ENGINE GASKET
3 16605624 HEXAGON BOLT M8X25 MM (8.8)
4 17765093 CLIP Ø60/80 MM
5 8041337 HOSE
6 8042966 RUBBER SLEEVE
8 8044447 MARINE EXHAUST PIPE
9 17238424 PIN
10 17290481 O-RING 3,53x69,44 [UP TO # 328594]
11 504064329 CLIP
12 17345224 SOCKET-HEAD SCREW M10X30
13 8042164 FLANGE
14 8013655 CLAMP
15 8013656 CLAMP
16 8042299 RETAINER
17 16605424 SCREW M8X16 MM (8.8)
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
19 16605524 HEXAGON BOLT M8X20 MM
20 8044778 RUBBER SLEEVE
22 8017811 CLAMP
23 8017810 CLAMP
24 8042153 FASTENING BRACKET
25 8042249 FASTENING BRACKET
27 8041570 FASTENING BRACKET
