C13ENTM50.30

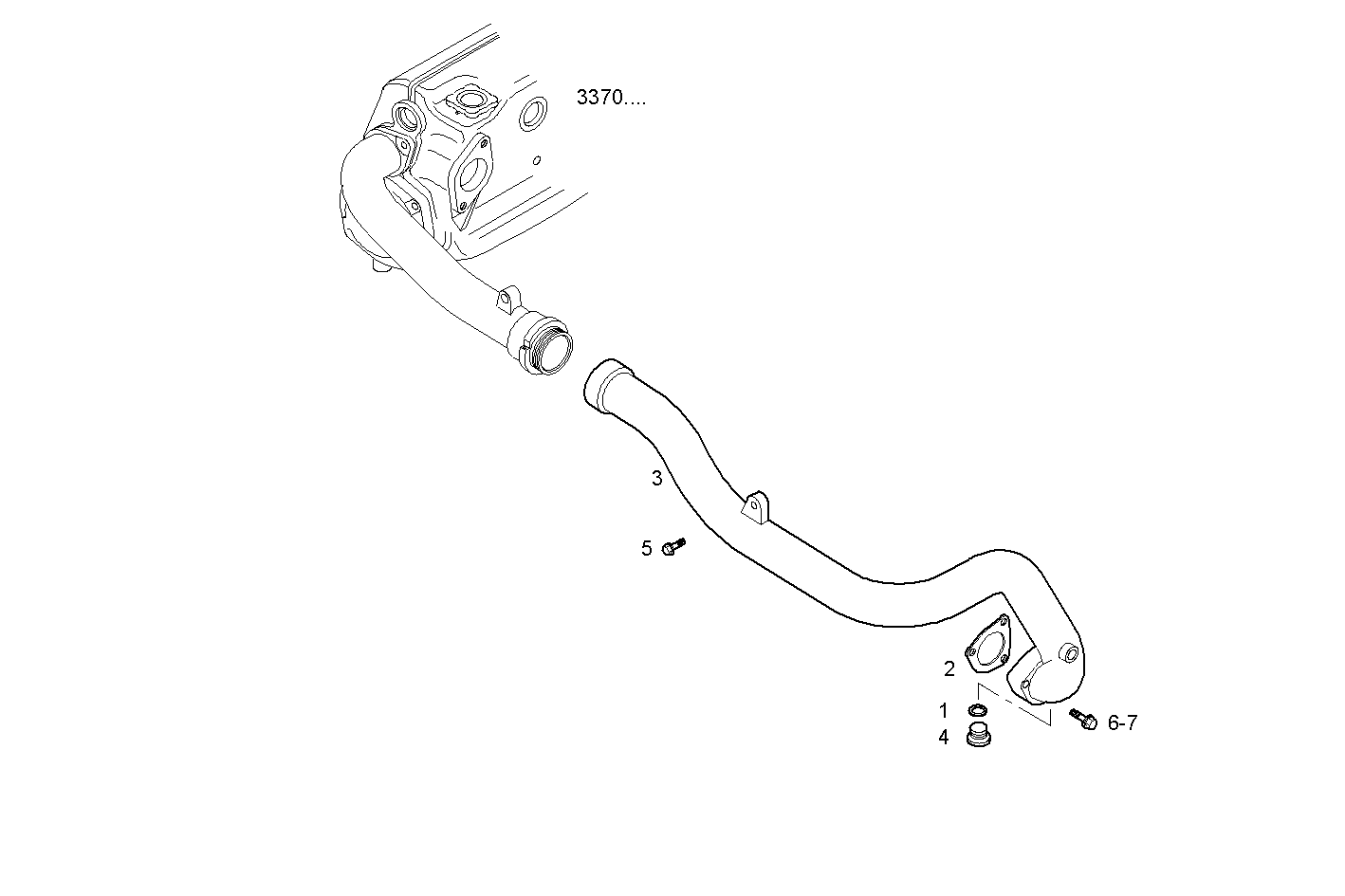

3230.039 WATER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
| 2 | 99466940 | FLAT ENGINE GASKET |
| 3 | 8035096 | WATER PIPE |
| 4 | 16992240 | THREADED PLUG M12X1,5 |
| 5 | 16598425 | HEXAGON BOLT M8X110 MM |
| 6 | 16592624 | HEXAGON BOLT M8X80 MM |
| 7 | 16586724 | SCREW M8X1,25X40 MM |
