C13ENTM50.30

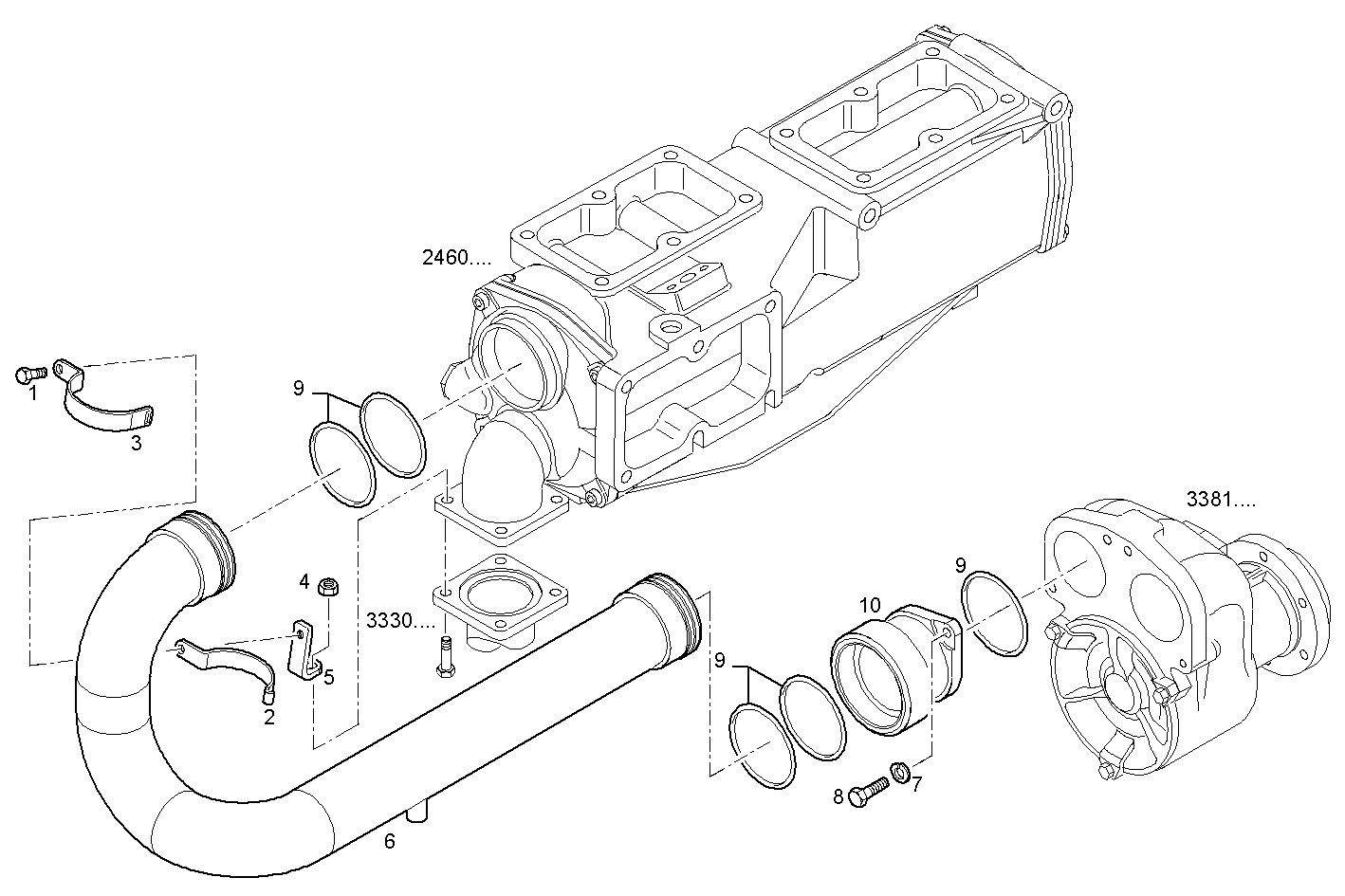

3330.013 AUXILIARY WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 2 | 8017811 | CLAMP |
| 3 | 8017810 | CLAMP |
| 4 | 17044725 | HEXAGON NUT M8 |
| 5 | 8049511 | RETAINER |
| 6 | 8049508 | SEA WATER PIPE |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 16605625 | HEXAGON BOLT M8X25 |
| 9 | 17290481 | O-RING 3,53x69,44 [UP TO # 328594] |
| 10 | 8038208 | SPACING BAR |
