C13ENTM50.30

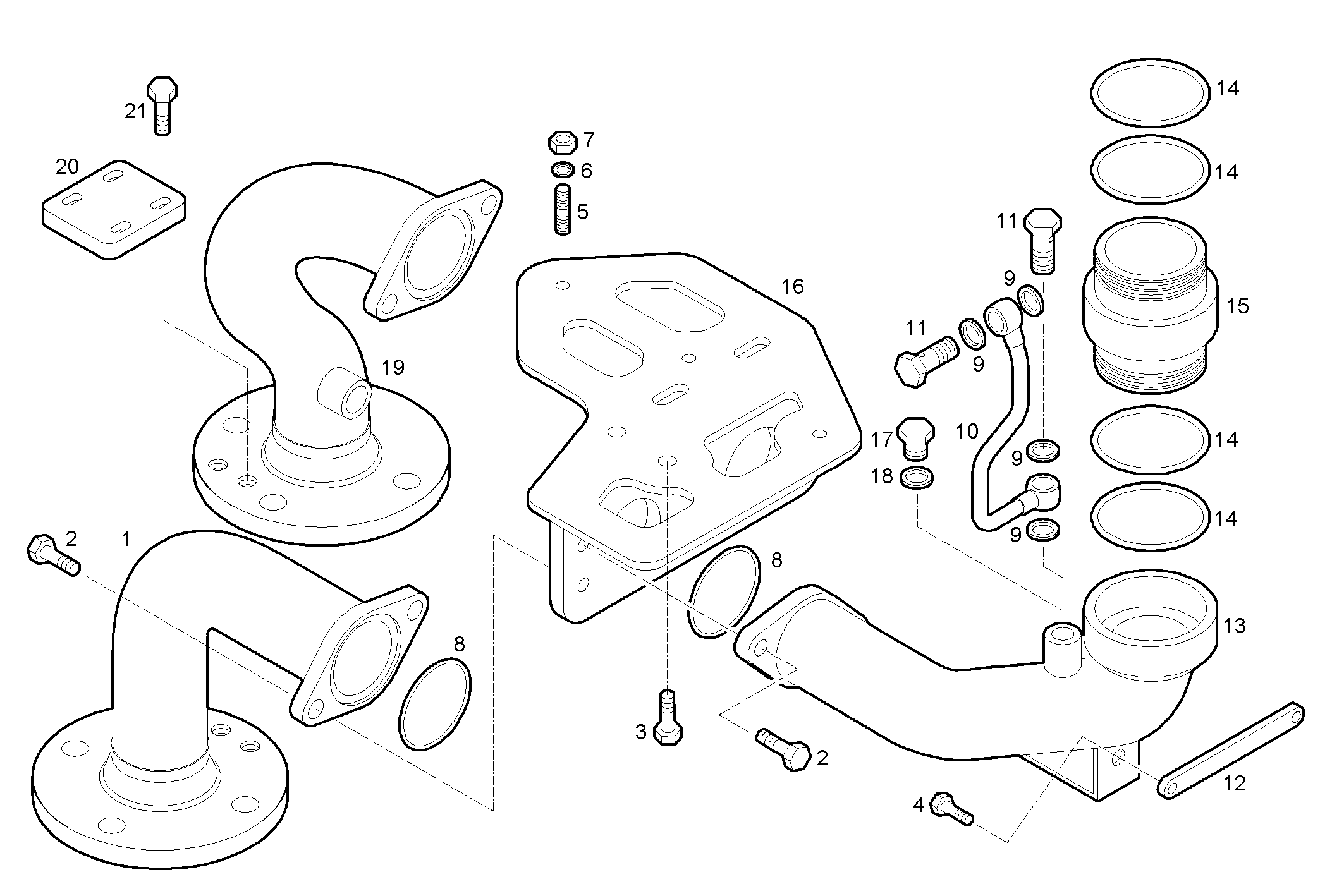

3390.003 SEA WATER LINES

Iveco/FPT SEA WATER LINES

Item Part number Description
1 8048028 SEA WATER PIPE
2 16587125 HEXAGON BOLT M10X25 MM
3 16587024 HEXAGON BOLT M10X20 MM
4 16597925 HEXAGON BOLT M8X14 MM
5 8039231 STUD
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 17044725 HEXAGON NUT M8
8 17290081 O-RING Ø56,74 MM SP=3,53 MM
9 98474308 SEAL GASKET Ø14X22 MM
10 8046498 BREATHER PIPE [UP TO 04-09-07]
11 4864083 SCREW CONNECTOR M14X1,5X30 MM
12 8046495 SPACING BAR
13 8046181 SEA WATER PIPE
14 17290581 O-RING Ø72,63X3,53 MM
15 8046188 ADAPTER
16 8046370 RETAINER
17 4931718 PLUG [FROM 05-09-07]
18 98474316 WASHER Ø16X36 MM SP=1,5 MM
19 8048034 SEA WATER PIPE
20 8048061 PLATE
21 16600224 HEXAGON BOLT M8X1,25X18 MM
