C13ENTM77.10

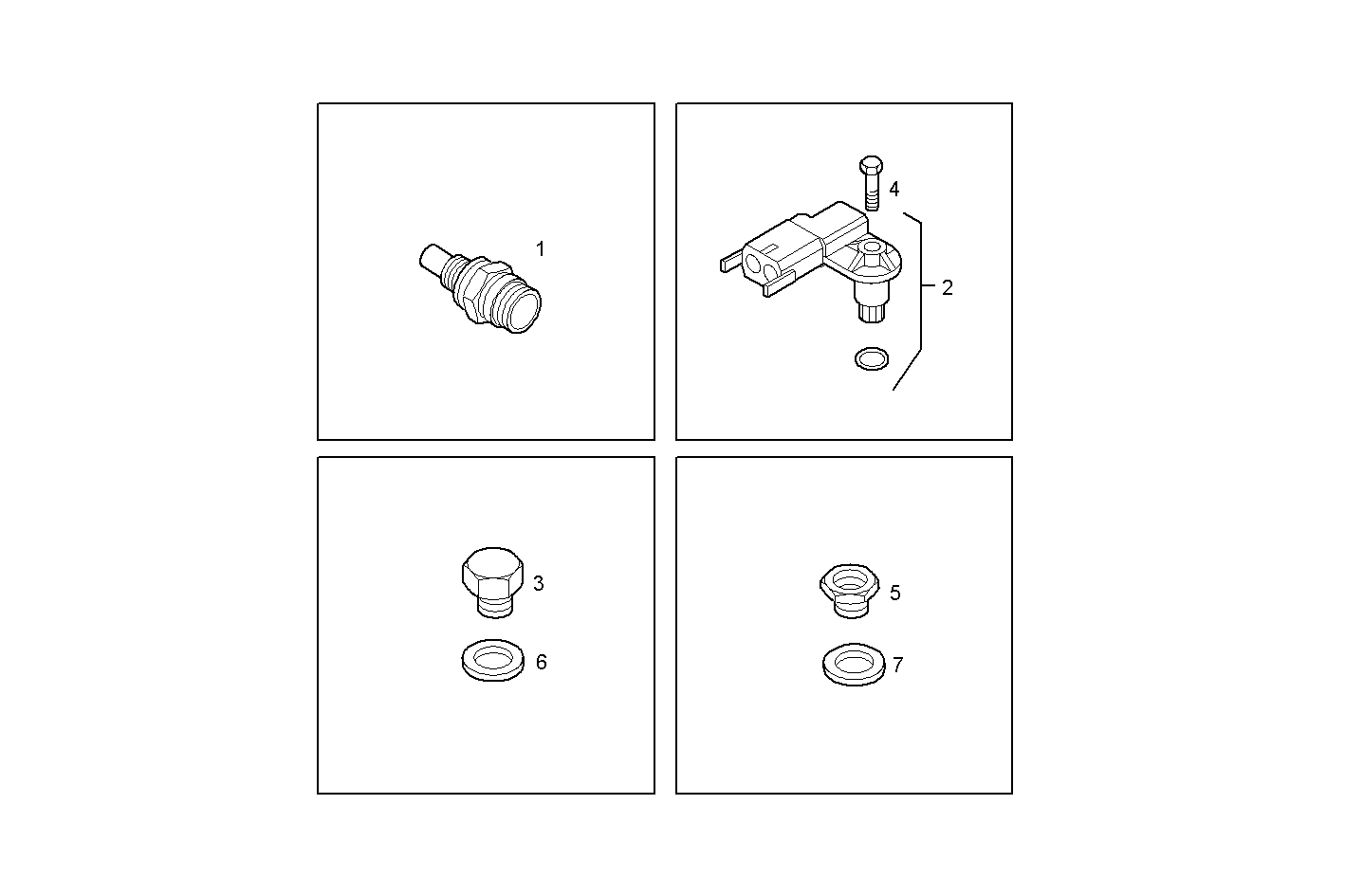

1710.031 SENSORS [FROM 02-07-06] [FROM 02-07-06]
| Item | Part number | Description |
|---|---|---|
| 1 | 500382599 | TEMP. TRANSMITTER PRESS. & TEMPER. |
| 2 | 504073323 | SENSOR AIR PRESS. & TEMPER. [FROM # 158928] |
| 3 | 16992411 | THREADED PLUG M16X1,5 |
| 4 | 16597225 | HEXAGON BOLT M6X18 MM |
| 5 | 8040042 | THREADED UNION M 20x1.5 MM |
| 6 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 7 | 99489021 | WASHER Ø20X28 MM SP=1,5 MM |
