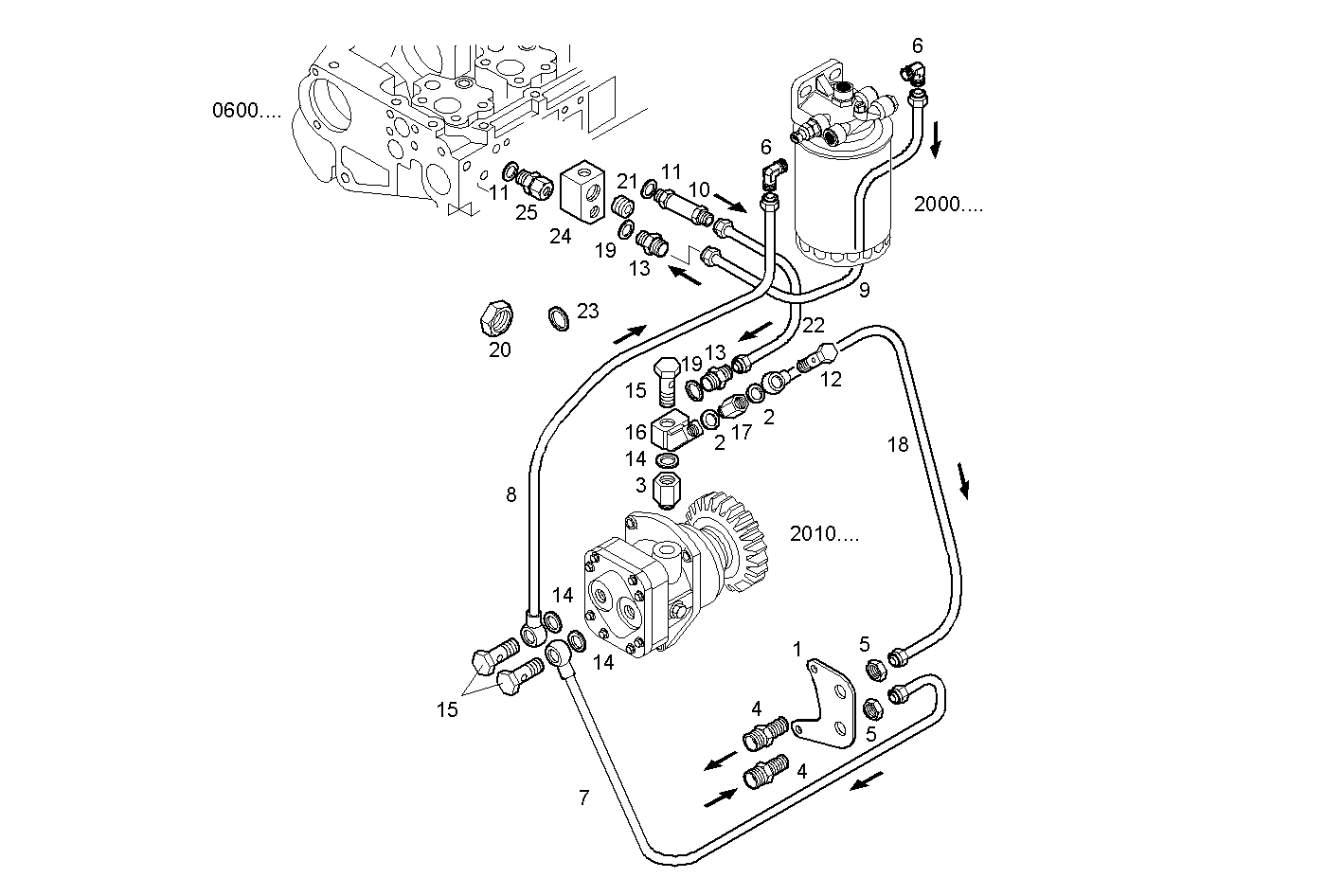

| Item |
Part number |
Description |
|
1 |
8030814 |
RETAINER |
|
2 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
3 |
8041722 |
THREADED UNION |
|
4 |
8011138 |
PIPE SOCKET 1/2''/M16X1,5 |
|
5 |
16508811 |
NUT M16X1,5 |
|
6 |
16504114 |
ELBOW COUPLING M18X1,5 |
|
7 |
8031102 |
FUEL LINE |
|
8 |
8040682 |
FUEL LINE |
|
9 |
8040684 |
FUEL LINE |
|
10 |
500310076 |
PIPE SOCKET M16X1,5 - M18X1,5 |
|
11 |
99489018 |
SEAL GASKET Ø14X22 MM SP=1,5 MM |
|
12 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
13 |
16500315 |
THREADED UNION M16X1,5 - M18X1,5 |
|
14 |
98474309 |
WASHER Ø16X24 MM SP=1,9 MM |
|
15 |
4864084 |
BANJO BOLT M16X1,5 |
|
16 |
500342081 |
PIPE SOCKET |
|
17 |
500328251 |
VALVE 0,2-0,3 BAR |
|
18 |
8040680 |
FUEL LINE |
|
19 |
16507814 |
WASHER Ø18 MM |
|
20 |
16507115 |
NUT M26 |
|
21 |
16997611 |
THREADED PLUG M20X1,5 |
|
22 |
8041395 |
FUEL LINE |
|
23 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
|
24 |
504133903 |
THREADED UNION |
|
25 |
504136275 |
THREADED UNION |
