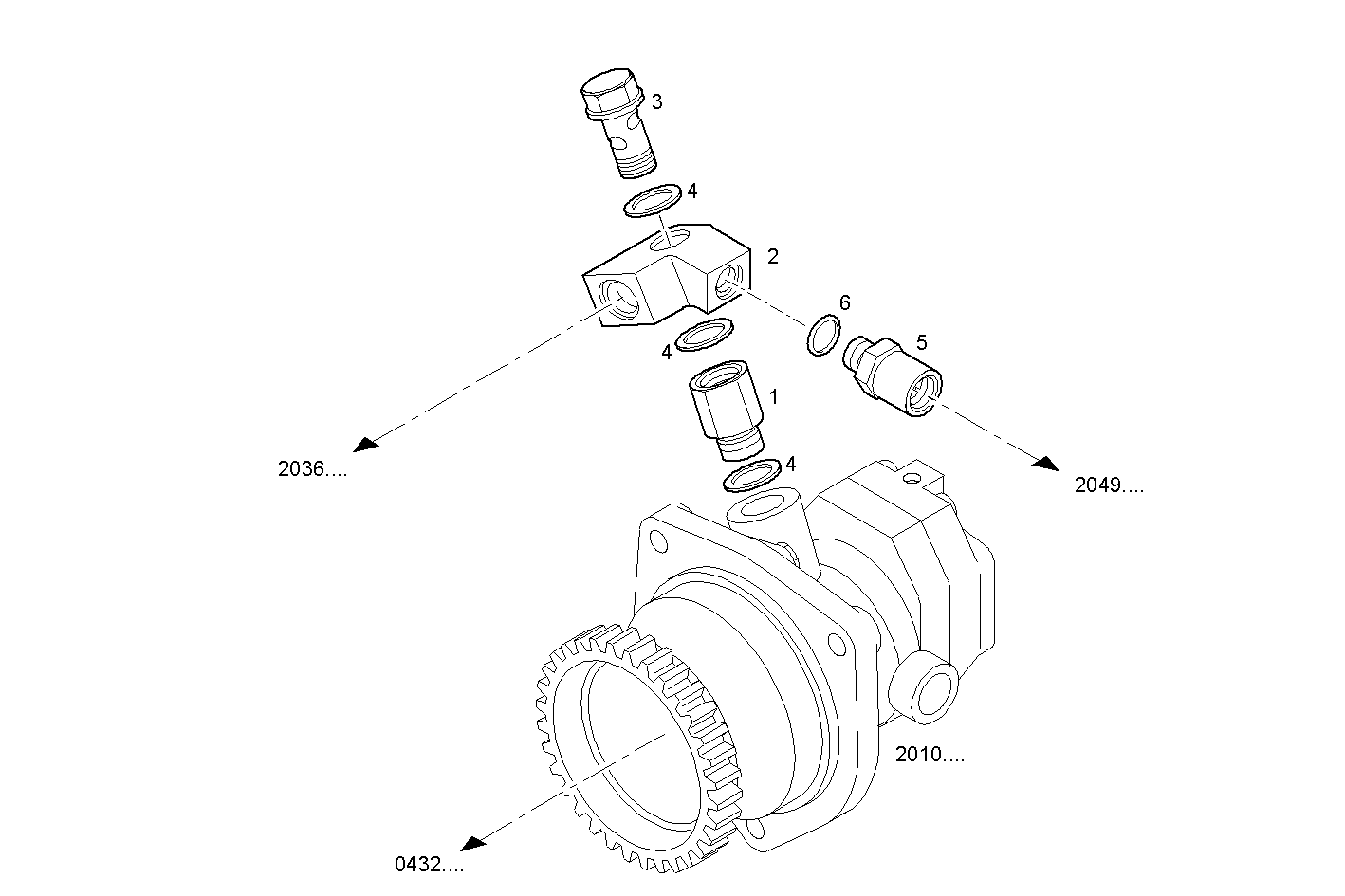

2042.001 EXCESS PRESSURE RELIEF VALVE [FROM 02-07-06] [FROM 02-07-06]

Iveco/FPT EXCESS PRESSURE RELIEF VALVE

Item Part number Description
1 8041722 THREADED UNION
2 500342081 PIPE SOCKET
3 504202514 SCREW CONNECTOR
4 98474309 WASHER Ø16X24 MM SP=1,9 MM
5 500328251 VALVE 0,2-0,3 BAR
6 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
