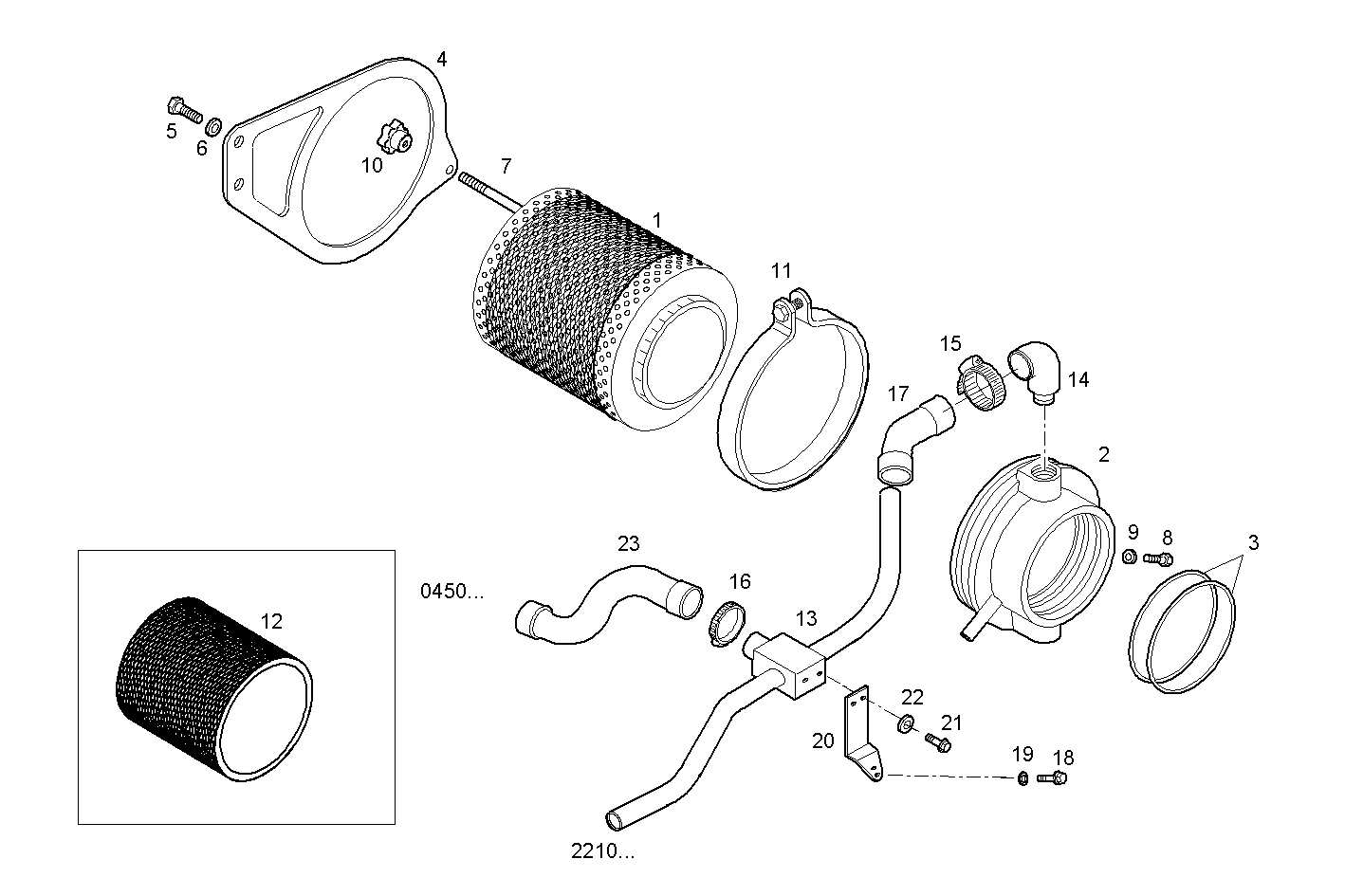

2210.057/01 AIR CLEANER - Trasversal
| Item | Part number | Description |
|---|---|---|
| 1 | 8039404 | AIR CLEANER ASSY |
| 2 | 8039901 | SUPPORT |
| 3 | 17291481 | O-RING Ø101,19 MM SP=3,53 |
| 4 | 8040969 | SUPPORT |
| 5 | 16605524 | HEXAGON BOLT M8X20 MM |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 8031906 | TIE ROD M6X1 |
| 8 | 16603677 | HEXAGON BOLT M6X16 MM |
| 9 | 17088674 | WASHER Ø6X15X1,5 MM |
| 10 | 8030569 | HANDWHEEL M6X1 |
| 11 | 8032358 | CLIP dia 154 |
| 12 | 8039624 | AIR FILTER ELEMENT |
| 13 | 8044017 | BREATHER PIPE |
| 14 | 4527314 | PIPE SOCKET |
| 15 | 17764593 | CLIP Ø20/32 MM |
| 16 | 17764693 | CLIP Ø25/40 MM |
| 17 | 8044073 | RUBBER SLEEVE |
| 18 | 16605424 | SCREW M8X16 MM (8.8) |
| 20 | 8044044 | RETAINER |
| 21 | 16609724 | HEXAGON BOLT |
| 22 | 17088474 | WASHER Ø6X12 MM |
| 23 | 8044335 | RUBBER SLEEVE |
