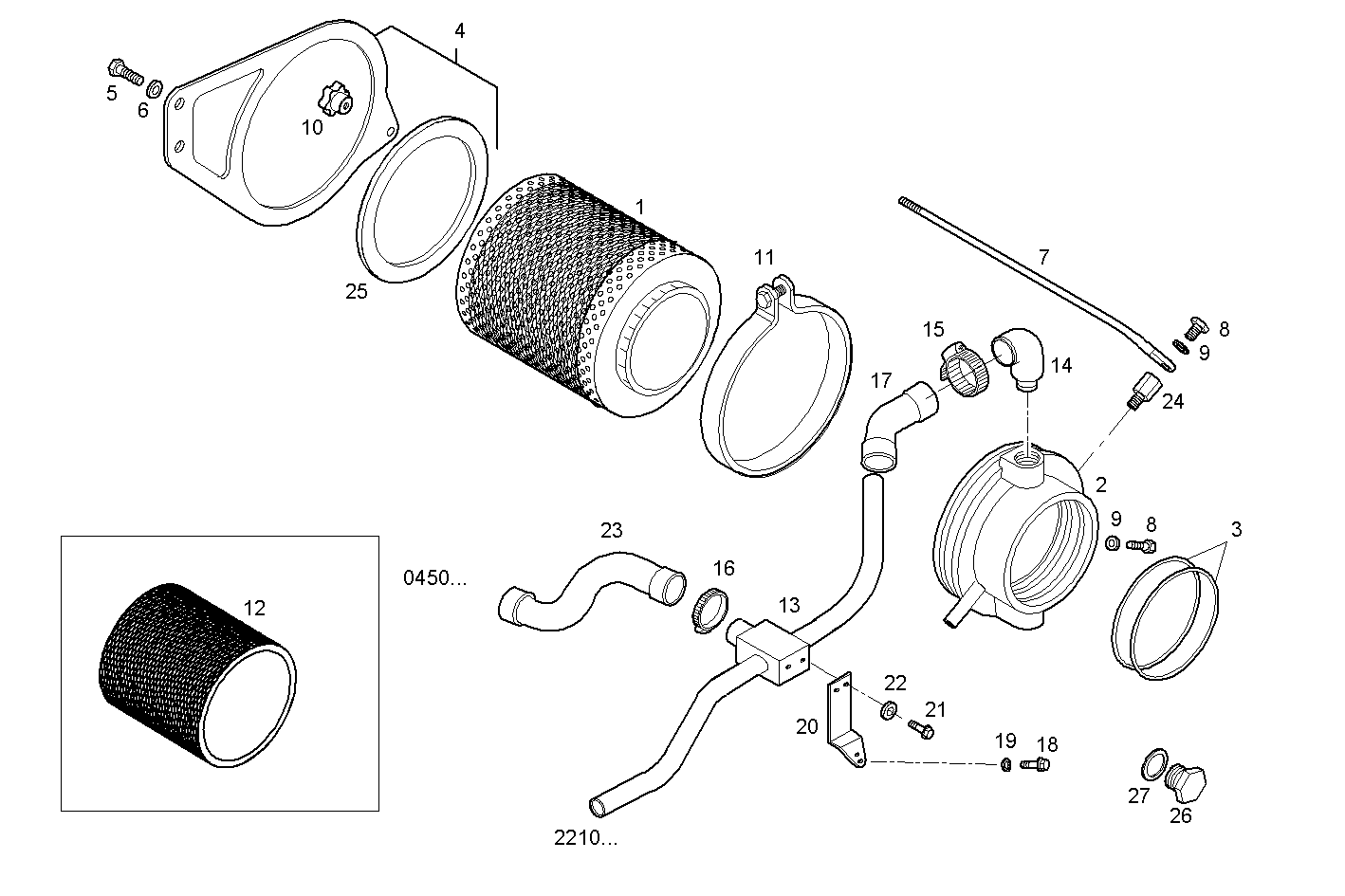

| Item |
Part number |
Description |
|
1 |
8039404 |
AIR CLEANER ASSY |
|
2 |
8039901 |
SUPPORT |
|
3 |
17291481 |
O-RING Ø101,19 MM SP=3,53 |
|
4 |
8046403 |
SUPPORT ASSY |
|
5 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
6 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
7 |
8031906 |
TIE ROD M6X1 |
|
8 |
16603525 |
SCREW M6X12 MM |
|
9 |
17088674 |
WASHER Ø6X15X1,5 MM |
|
10 |
8030569 |
HANDWHEEL M6X1 |
|
11 |
8032358 |
CLIP dia 154 |
|
12 |
8039624 |
AIR FILTER ELEMENT |
|
13 |
8044017 |
BREATHER PIPE |
|
14 |
4527314 |
PIPE SOCKET |
|
15 |
18088493 |
CLIP |
|
16 |
17764693 |
CLIP Ø25/40 MM |
|
17 |
8044073 |
RUBBER SLEEVE |
|
18 |
16586225 |
HEXAGON BOLT M8X1,25X16 MM |
|
20 |
8044044 |
RETAINER |
|
21 |
16609725 |
HEXAGON BOLT M6X14 MM |
|
22 |
17088474 |
WASHER Ø6X12 MM |
|
23 |
8044335 |
RUBBER SLEEVE |
|
24 |
8043388 |
SPACING BAR |
|
25 |
8043381 |
RUBBER GASKET |
|
26 |
16992611 |
THREADED PLUG M22X1,5 |
|
27 |
99489022 |
SEAL GASKET Ø22X30 MM SP=1,5 MM |
