C13ENTM77.10

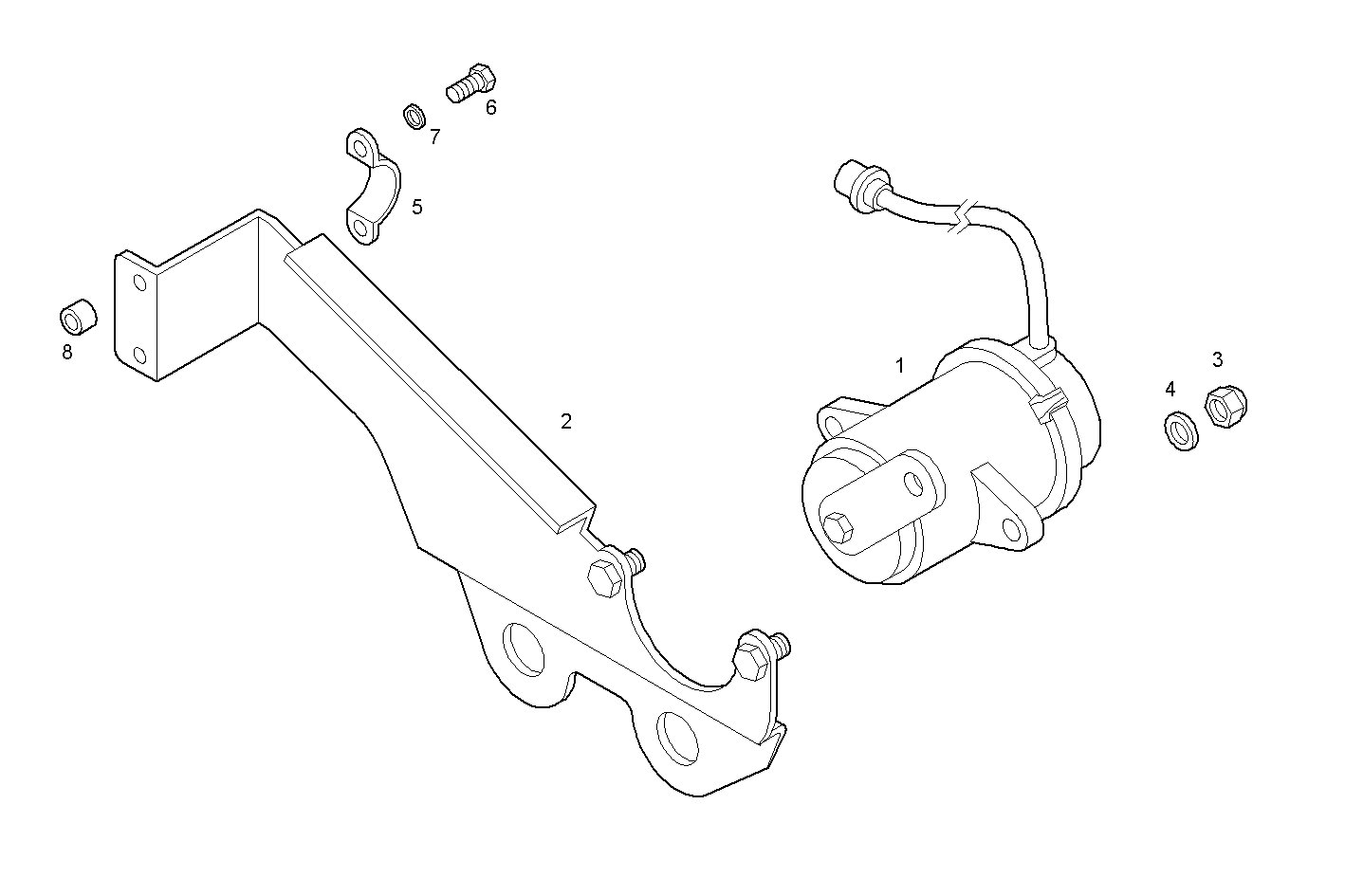

2650.008 ELECTRONIC ACCELERATOR [FROM 02-07-06] [FROM 02-07-06]
| Item | Part number | Description |
|---|---|---|
| 1 | 8030707 | POTENTIOMETER |
| 2 | 8036696 | RETAINER |
| 3 | 17787270 | HEXAGON NUT M6 |
| 4 | 17088474 | WASHER Ø6X12 MM |
| 5 | 8033783 | RETAINER |
| 6 | 16601924 | HEXAGON BOLT M5X10 MM |
| 7 | 17800274 | SPRING WASHER Ø5X11 MM |
| 8 | 4753027 | SPACER Ø12 MM |
