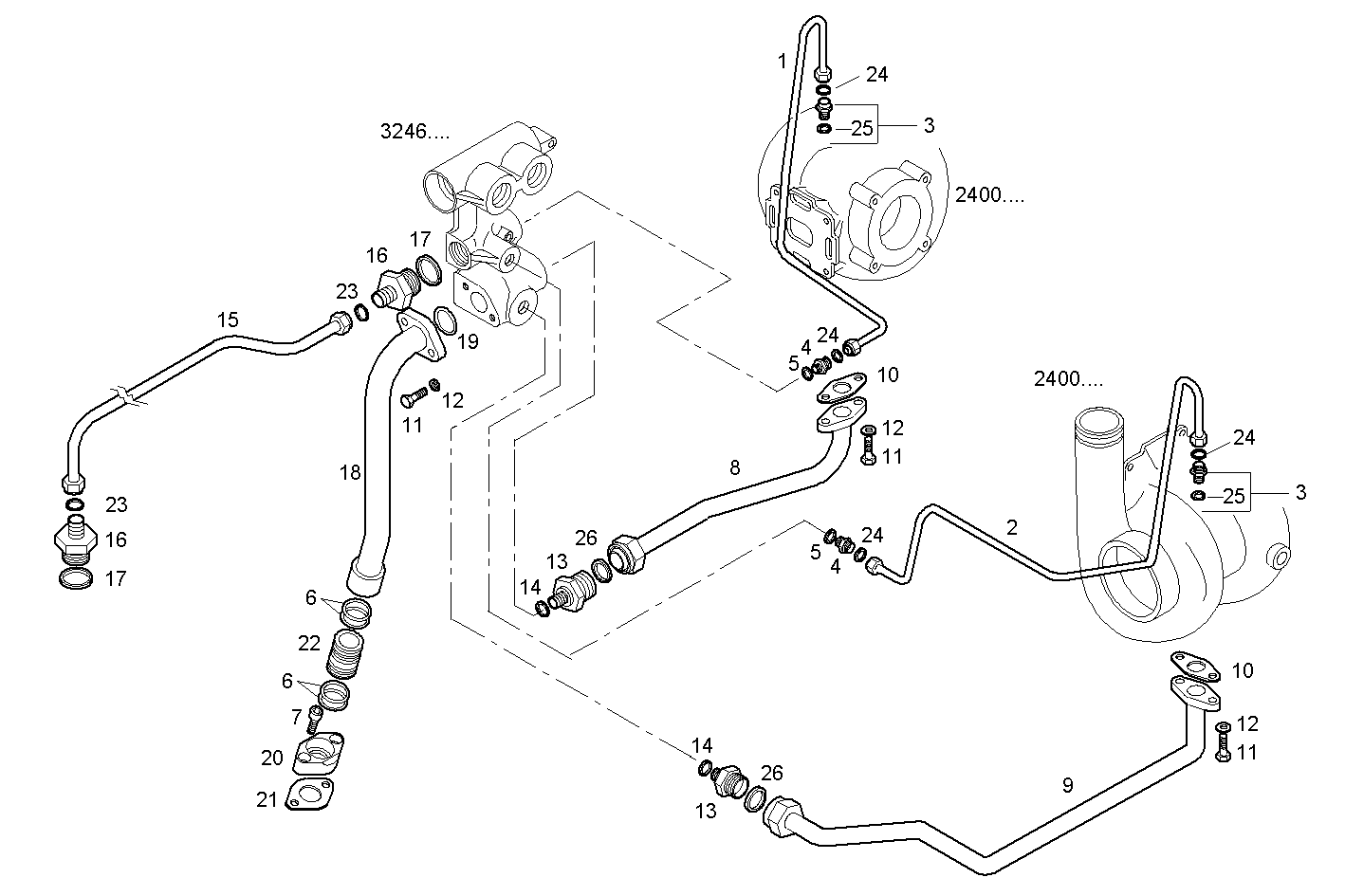

| Item |
Part number |
Description |
|
1 |
8040892 |
OIL LINE |
|
2 |
8040895 |
OIL LINE |
|
3 |
8032268 |
PIPE SOCKET |
|
4 |
16500215 |
THREADED UNION M14X1,5/M16X1,5 |
|
5 |
99489018 |
SEAL GASKET Ø14X22 MM SP=1,5 MM |
|
6 |
17279181 |
O-RING Ø31,42 MM SP=1,78 |
|
7 |
16690624 |
CYLIND-HEAD SCREW M8X25 MM |
|
8 |
8040822 |
OIL LINE |
|
9 |
8040844 |
OIL LINE |
|
10 |
98412509 |
FLAT ENGINE GASKET |
|
11 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
12 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
13 |
16500315 |
THREADED UNION M16X1,5 - M18X1,5 |
|
14 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
|
15 |
8041967 |
OIL LINE |
|
16 |
8031297 |
THREADED UNION |
|
17 |
99434480 |
SEAL GASKET Ø30X40 MM |
|
18 |
8041047 |
OIL LINE |
|
19 |
98465110 |
O-RING Ø31,42 MM SP=2,62 MM |
|
20 |
8041027 |
FLANGE |
|
21 |
4863361 |
GASKET |
|
22 |
8041029 |
ADAPTER |
|
23 |
16507614 |
WASHER |
|
24 |
16507514 |
WASHER |
|
25 |
4895610 |
O-RING |
|
26 |
16582111 |
WASHER |
