C13ENTM77.10

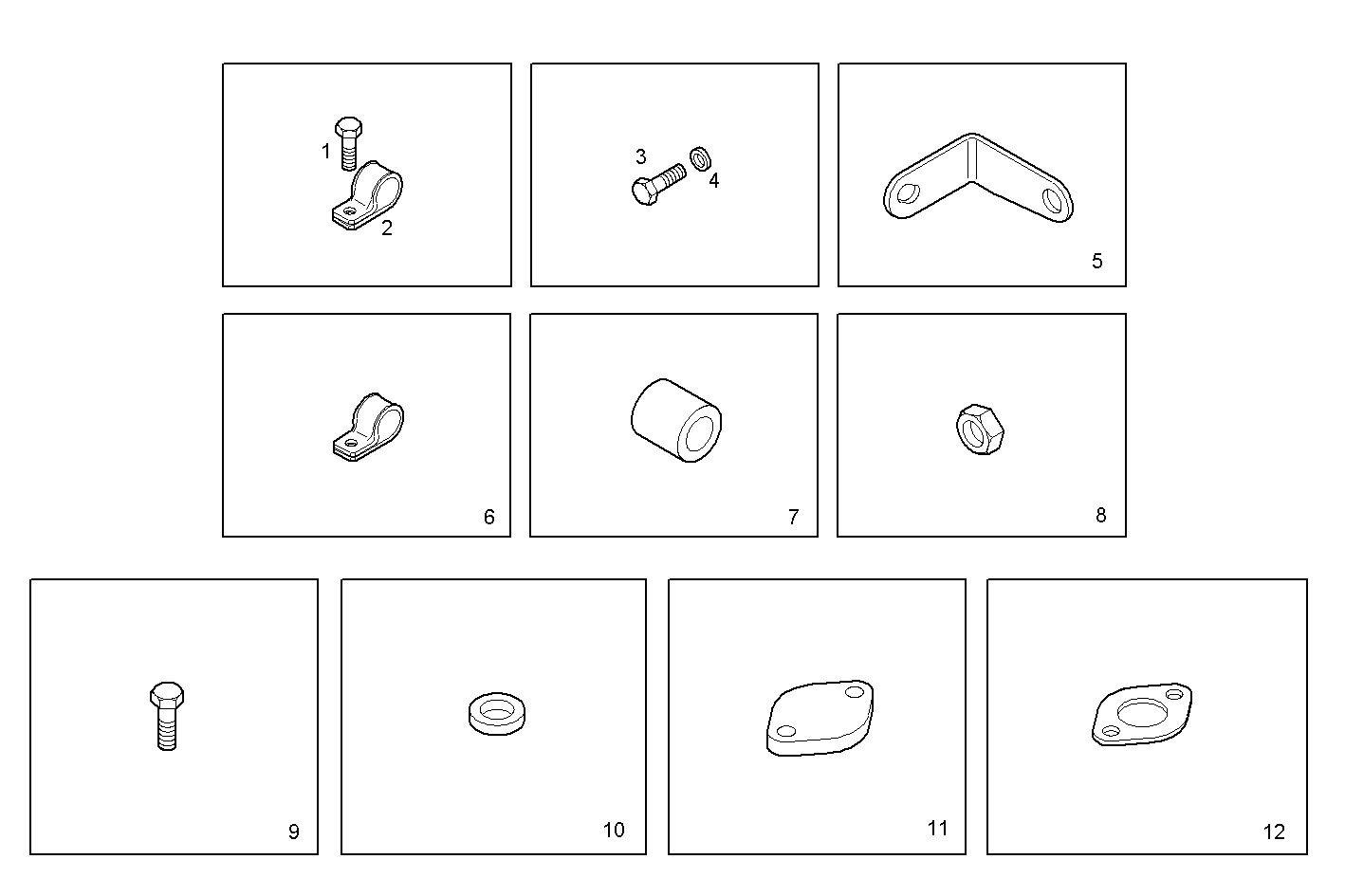

3010.229/02 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 16605424 | SCREW M8X16 MM (8.8) |
| 2 | 17316590 | PIPE CLIP Ø12 MM |
| 3 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 8042381 | RETAINER |
| 6 | 17316490 | CLIP |
| 7 | 17816214 | SPACER Ø10X8,5X18 MM |
| 8 | 17037921 | HEXAGON NUT M8X1,25 |
| 9 | 16605524 | HEXAGON BOLT M8X20 MM |
| 11 | 4798805 | COVER |
| 12 | 98482697 | GASKET |
