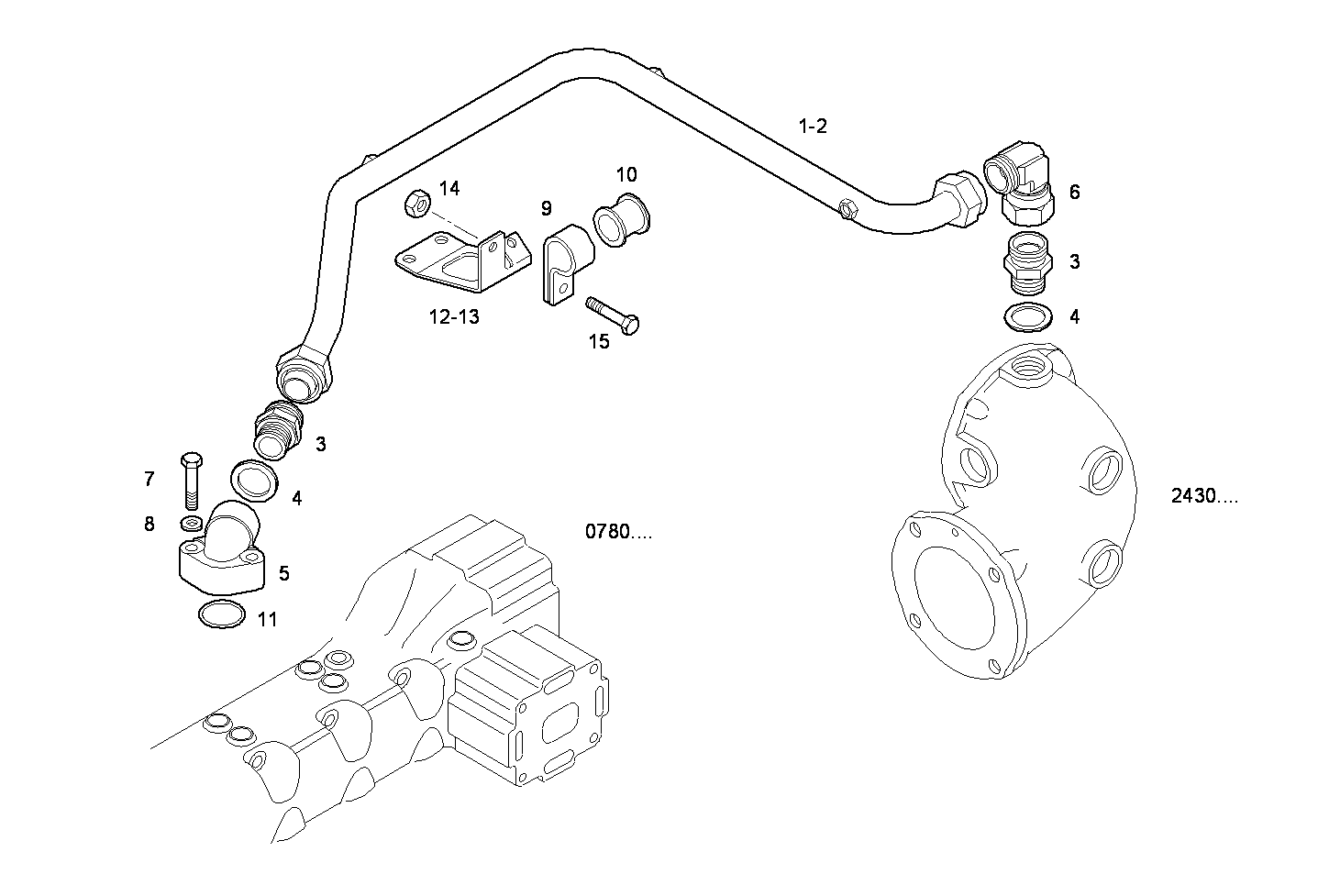

| Item |
Part number |
Description |
|
1 |
8040904 |
WATER PIPE [UP TO 06/02/06] |
|
2 |
8043909 |
WATER PIPE [FROM 07/02/06] |
|
3 |
8110943 |
PIPE SOCKET M30X1,5/M25X1,5 |
|
4 |
99489024 |
SEAL GASKET dia. 26x36x1,5 |
|
5 |
8039949 |
FLANGED SOCKET [UP TO 06/02/06] |
|
6 |
16526514 |
ELBOW COUPLING |
|
7 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
8 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
9 |
8033225 |
CLIP |
|
10 |
4747140 |
RUBBER PAD |
|
11 |
98465110 |
O-RING Ø31,42 MM SP=2,62 MM |
|
12 |
8042341 |
FASTENING BRACKET [UP TO 06/02/06] |
|
13 |
8044270 |
FASTENING BRACKET [FROM 07/02/06] |
|
14 |
17037921 |
HEXAGON NUT M8X1,25 |
