C13ENTM77.10

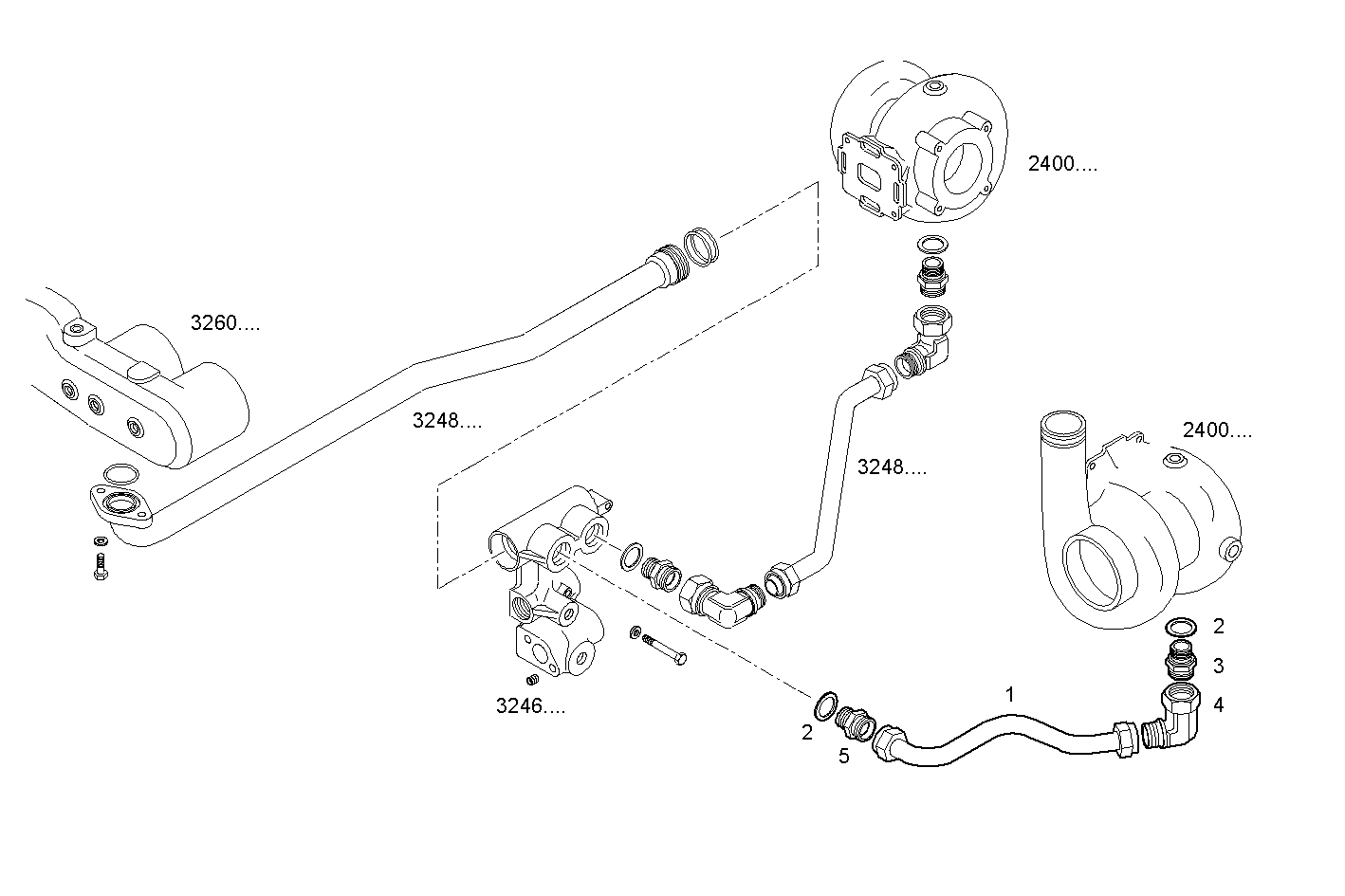

3248.014 TURBO WATER OUTLET PIPE - Longitudinal
| Item | Part number | Description |
|---|---|---|
| 1 | 8040871 | WATER PIPE |
| 2 | 99489024 | SEAL GASKET dia. 26x36x1,5 |
| 3 | 8110943 | PIPE SOCKET M30X1,5/M25X1,5 |
| 4 | 16526514 | ELBOW COUPLING |
| 5 | 41031577 | THREADED UNION M26X1,5/M30X2,0 |
