C13ENTM77.10

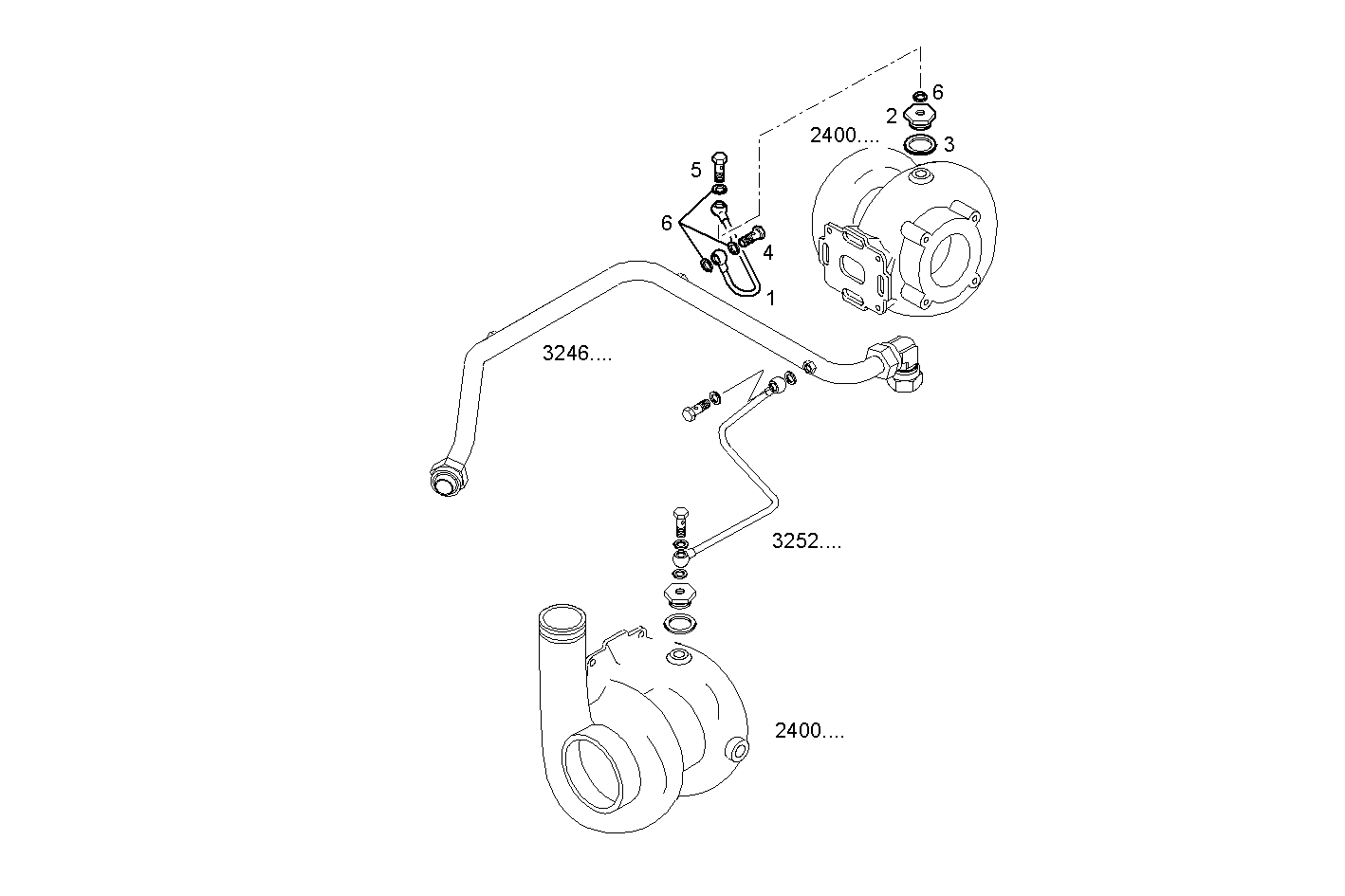

3252.030 BLEEDER TUBING [FROM 07-02-06] [FROM 07-02-06]

Iveco/FPT BLEEDER TUBING

Item Part number Description
1 8040947 BREATHER PIPE
2 8041986 THREADED UNION
3 99489024 SEAL GASKET dia. 26x36x1,5
4 4864080 SCREW CONNECTOR M10X1,25
5 4864079 SCREW CONNECTOR M10X1
6 98474305 WASHER Ø10X17 MM SP=2,3
