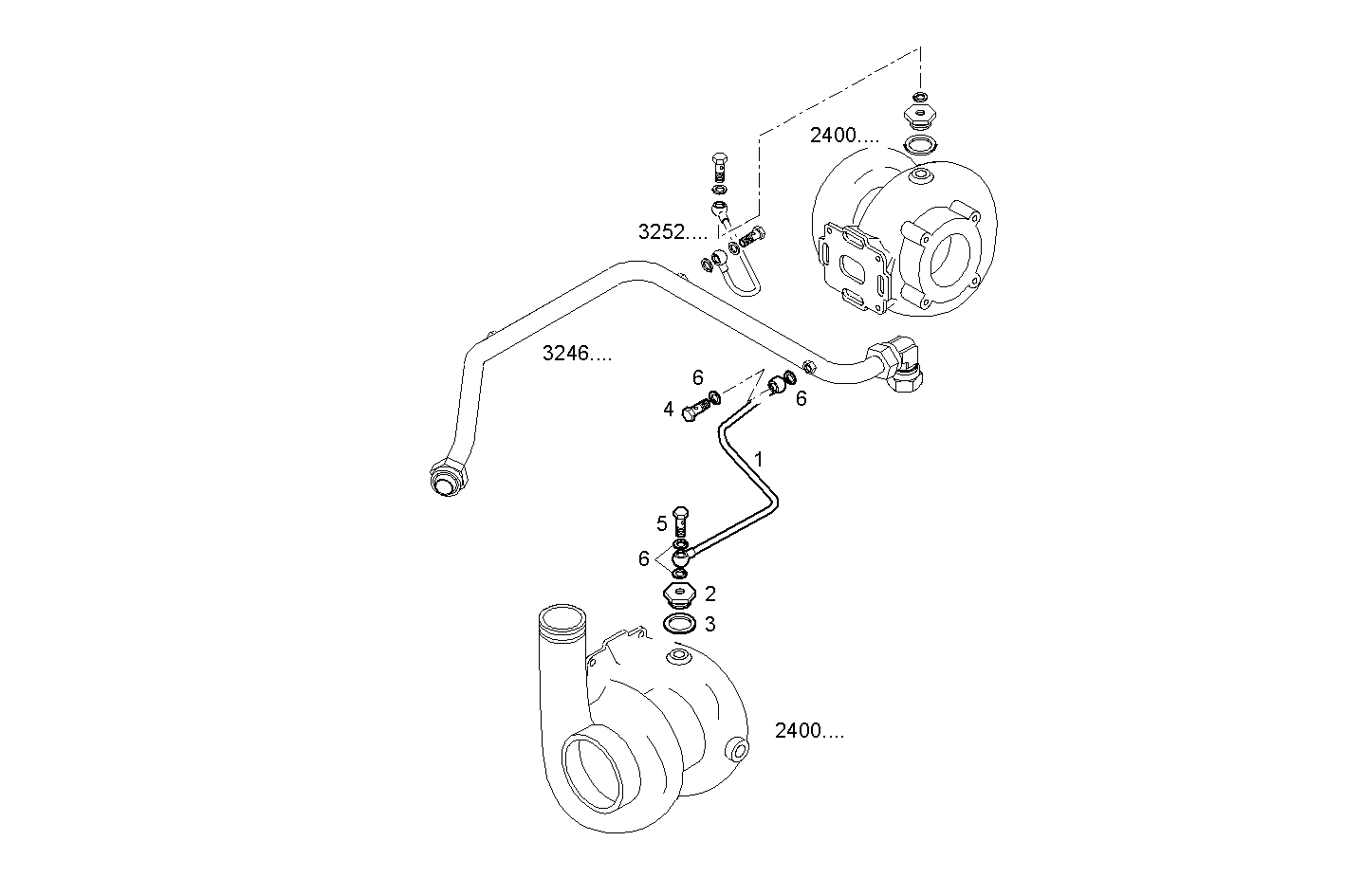

3252.031 BLEEDER TUBING [FROM 07-02-06] [FROM 07-02-06]
| Item | Part number | Description |
|---|---|---|
| 1 | 8040944 | BREATHER PIPE |
| 2 | 8041986 | THREADED UNION |
| 3 | 99489024 | SEAL GASKET dia. 26x36x1,5 |
| 4 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 5 | 4864079 | SCREW CONNECTOR M10X1 |
| 6 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
