C13ENTM77.10

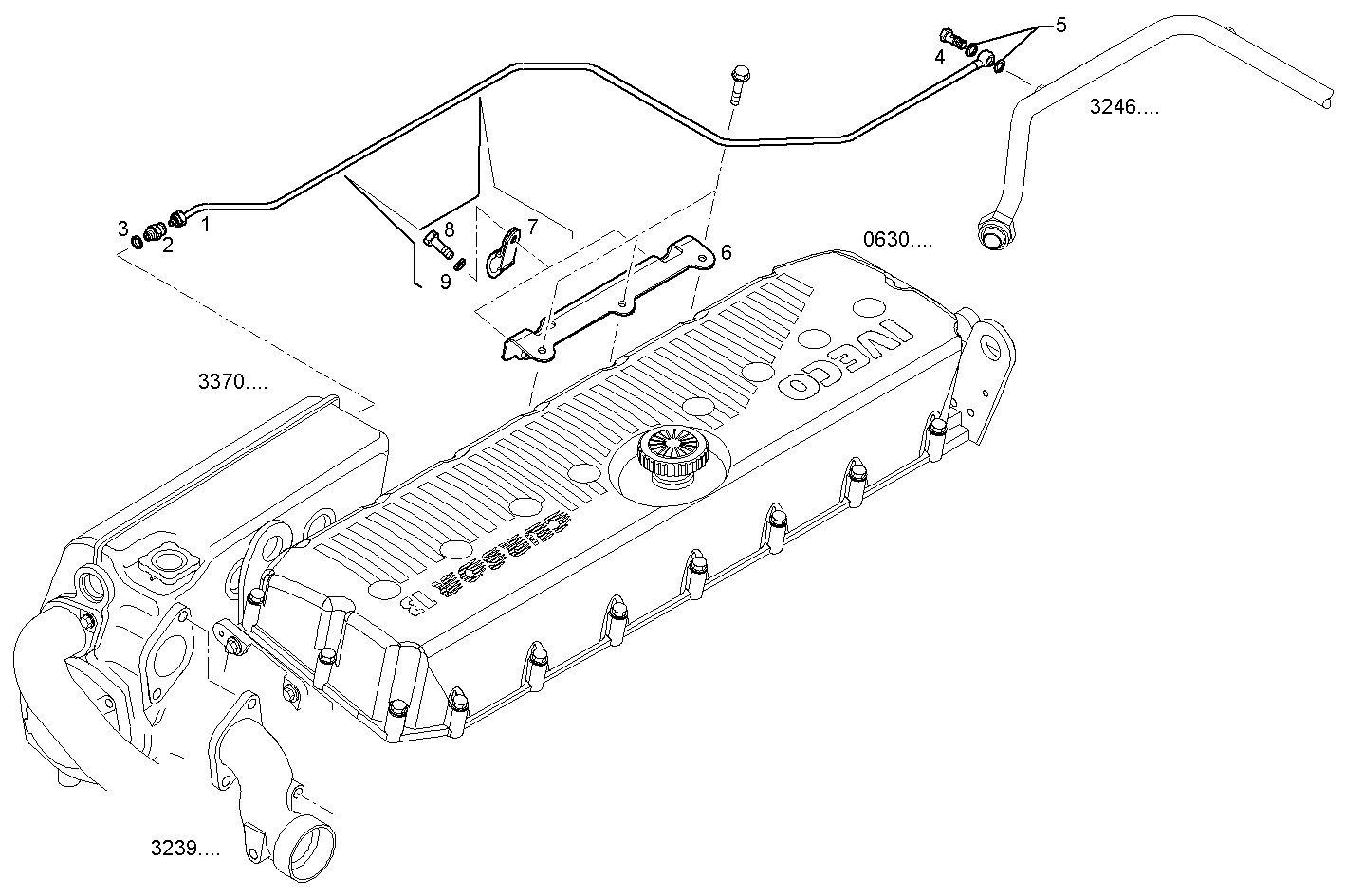

3252.032 BLEEDER TUBING [FROM 07-02-06] [FROM 07-02-06]
| Item | Part number | Description |
|---|---|---|
| 1 | 8040921 | BREATHER PIPE |
| 2 | 16500114 | THREADED UNION M12X1,5 - M14X1,5 |
| 3 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
| 4 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 5 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 6 | 8043633 | FASTENING BRACKET |
| 7 | 17314790 | FASTENING BRACKET Ø8 MM |
| 8 | 16603425 | HEXAGON BOLT M6X10 |
| 9 | 17088774 | WASHER Ø6 MM |
