C13ENTM77.10

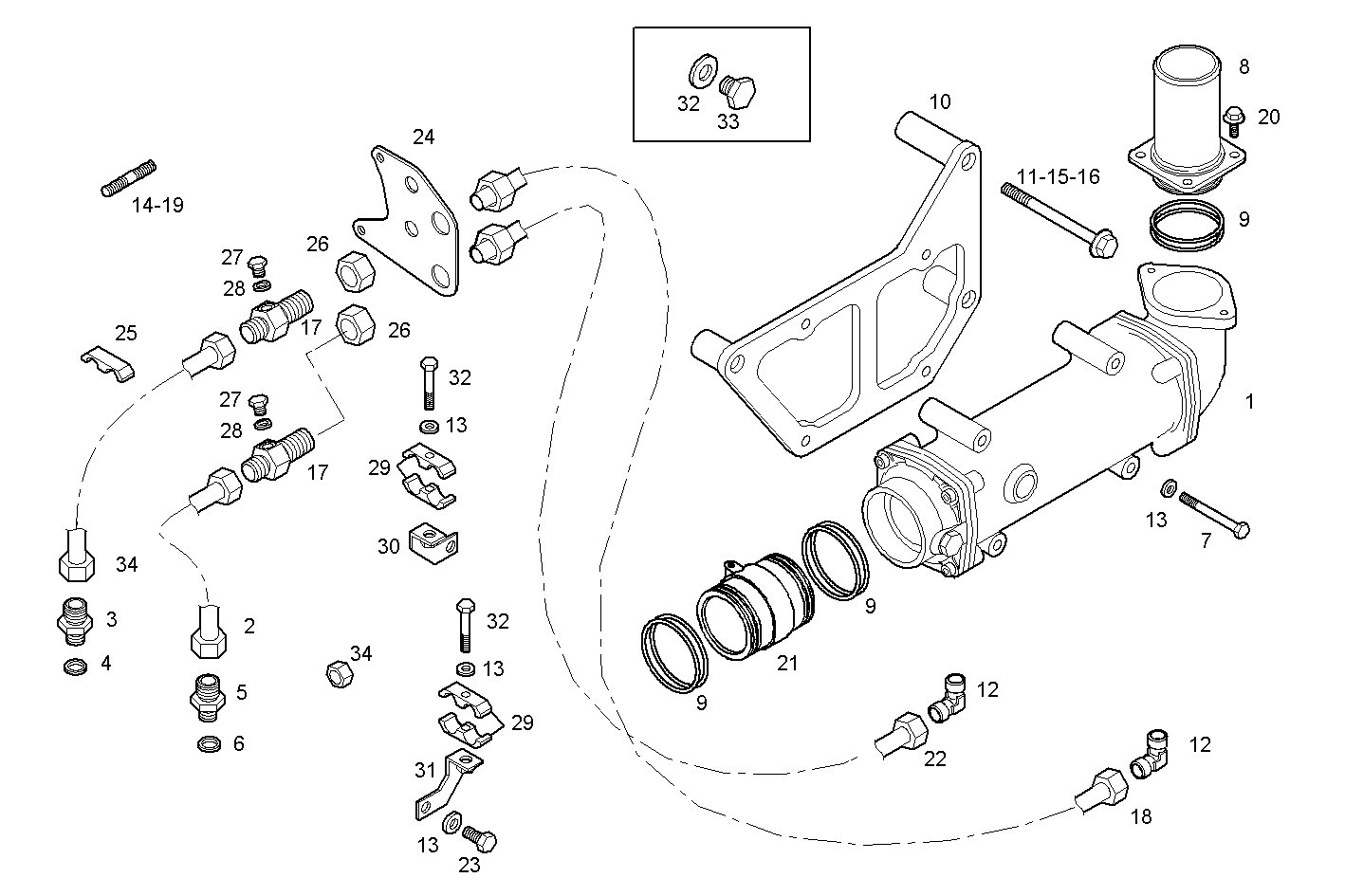

A13450501/01 ARRANGED FOR TECHNODRIVE MARINE GEAR - MG 5114-A

Iveco/FPT ARRANGED FOR TECHNODRIVE MARINE GEAR

Item Part number Description
1 8040270 MARINE GEAR OIL HEAT EXCH ASSY
7 17458234 LOCKING SCREW M12X30 MM
8 8039848 SPACING BAR
9 17290481 O-RING 3,53x69,44 [UP TO # 328594]
10 8041594 RETAINER
11 16586924 HEXAGON BOLT M8X50 MM
12 8111751 PIPE SOCKET
12 16512119 ELBOW COUPLING
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 17368624 STUD M10X1,5X25 MM
15 16598324 HEXAGON BOLT M8X100 MM
16 16592625 HEXAGON BOLT M8X80 MM
17 8113794 PIPE SOCKET
18 8041590 OIL LINE
19 17368225 STUD
20 16605624 HEXAGON BOLT M8X25 MM (8.8)
21 8038043 SPACING BAR
22 8041588 OIL LINE
23 16607434 HEXAGON BOLT M10X16 MM
24 8032349 RETAINER
25 8041552 SUPPORT
26 41217235 HEXAGON NUT M22X1,5
27 11903140 PLUG M10X1,25
28 10284460 SEAL GASKET Ø10X16 MM
28 11271460 GASKET Ø21X26X1,5 MM
29 8010505 CLAMP Ø16 MM
31 8030814 RETAINER
32 16605934 HEXAGON BOLT M8X40 MM (10.9)
33 16997611 THREADED PLUG M20X1,5
34 8113774 HOSE
34 17037921 HEXAGON NUT M8X1,25
35 16508811 NUT M16X1,5
36 8011138 PIPE SOCKET 1/2''/M16X1,5
37 8011519 PIPE SOCKET
