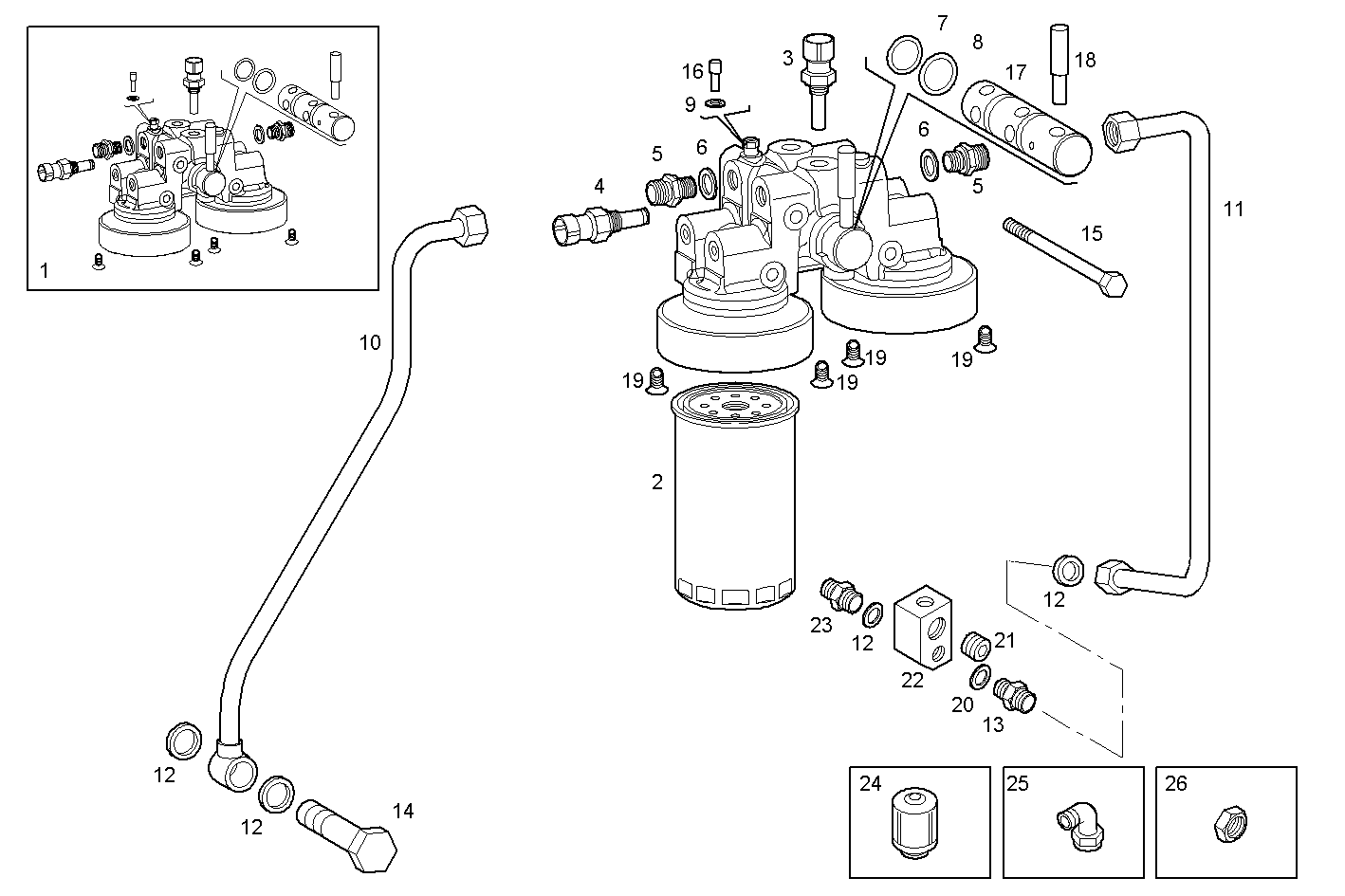

| Item |
Part number |
Description |
|
1 |
8036586 |
FILTER SUPPORT ASSY |
|
2 |
2991585 |
FUEL FILTER ELEM. |
|
3 |
500382599 |
TEMP. TRANSMITTER PRESS. & TEMPER. |
|
4 |
504080406 |
TRANSMITTER |
|
5 |
41905554 |
PIPE SOCKET M14X1,5 - M16X1,5 |
|
6 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
7 |
17282081 |
O-RING Ø20,2 MM SP=2,62 MM |
|
8 |
17282281 |
O-RING 2,62x23,47 |
|
9 |
99469377 |
WASHER |
|
10 |
8043054 |
FUEL LINE |
|
11 |
8045156 |
FUEL LINE |
|
12 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
|
13 |
41031568 |
THREADED UNION M16X1,5 |
|
14 |
4864084 |
BANJO BOLT M16X1,5 |
|
15 |
16598425 |
HEXAGON BOLT M8X110 MM |
|
16 |
8033457 |
DRAIN SCREW |
|
17 |
8036552 |
LEVER |
|
18 |
8009717 |
HANDLE BALL |
|
19 |
17342524 |
C'SUNK SCREW M5X10 |
|
20 |
16507814 |
WASHER Ø18 MM |
|
21 |
16997611 |
THREADED PLUG M20X1,5 |
|
22 |
504133903 |
THREADED UNION |
|
23 |
8043767 |
PIPE SOCKET M26X1,5 - M16X1,5 |
|
24 |
504112433 |
REDUCTION VALVE M16X1,5 |
|
25 |
16504015 |
ELBOW COUPLING M16X1,5 |
|
26 |
16507115 |
NUT M26 |
