C13ENTM77.10

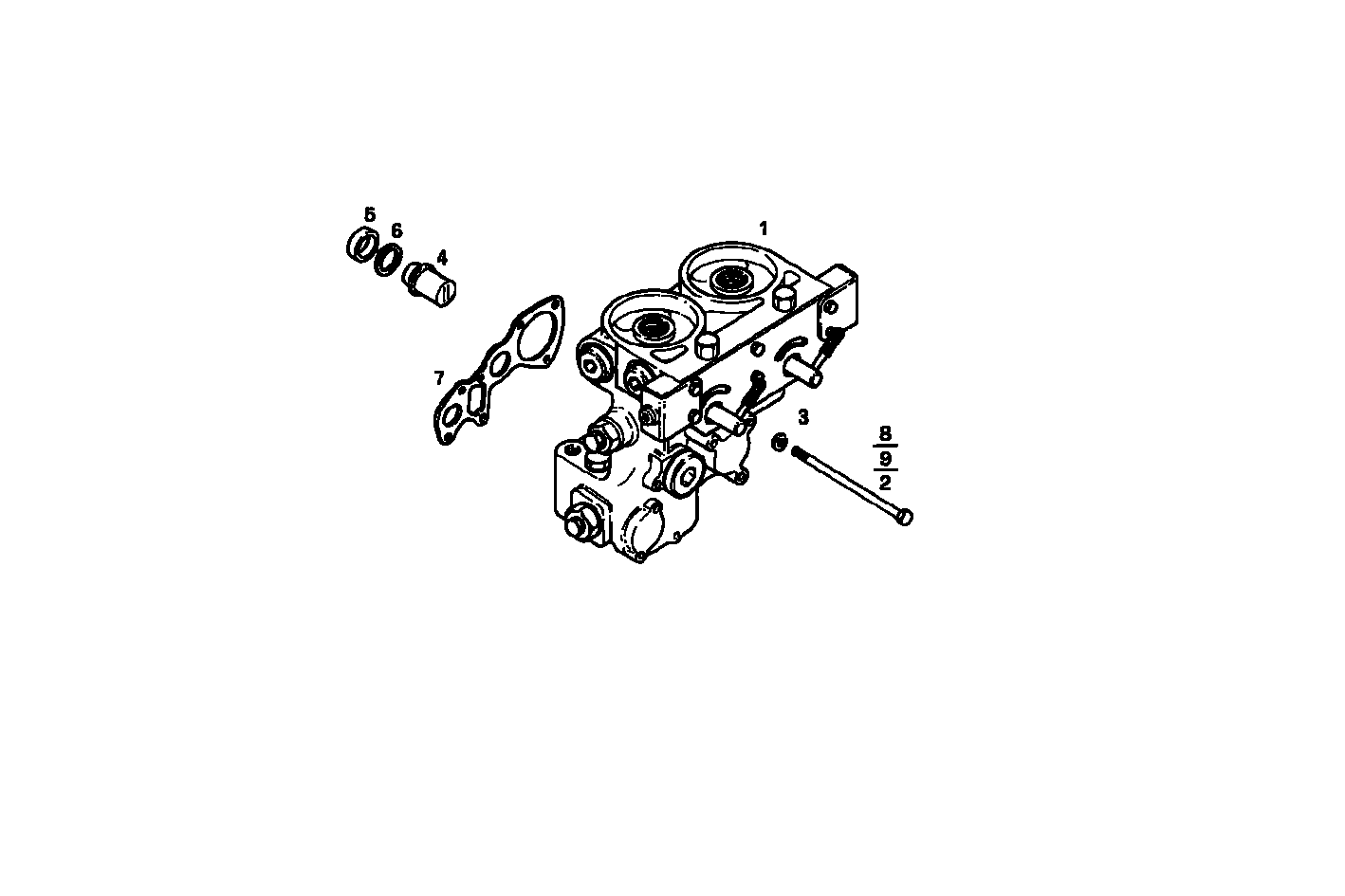

A17070503/01 DOUBLE OIL FILTER [FROM 14/04/06] [FROM 14/04/06]

Iveco/FPT DOUBLE OIL FILTER

Item Part number Description
1 8043665 OIL FILTER SUPPORT ASSY
2 16607324 HEXAGON BOLT M8X1,25X125
3 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
4 98498322 VALVE
5 99433798 SPACING BAR Ø28 MM
6 98494952 GASKET M35X1,5
7 504013562 GASKET
8 16046221 HEXAGON BOLT M8X1,25X150 MM
9 8030913 SCREW M8X1,25X200
