C13ENTM77.10
A17070503/02 DOUBLE OIL FILTER [FROM 14/04/06] [FROM 14/04/06]

Iveco/FPT DOUBLE OIL FILTER

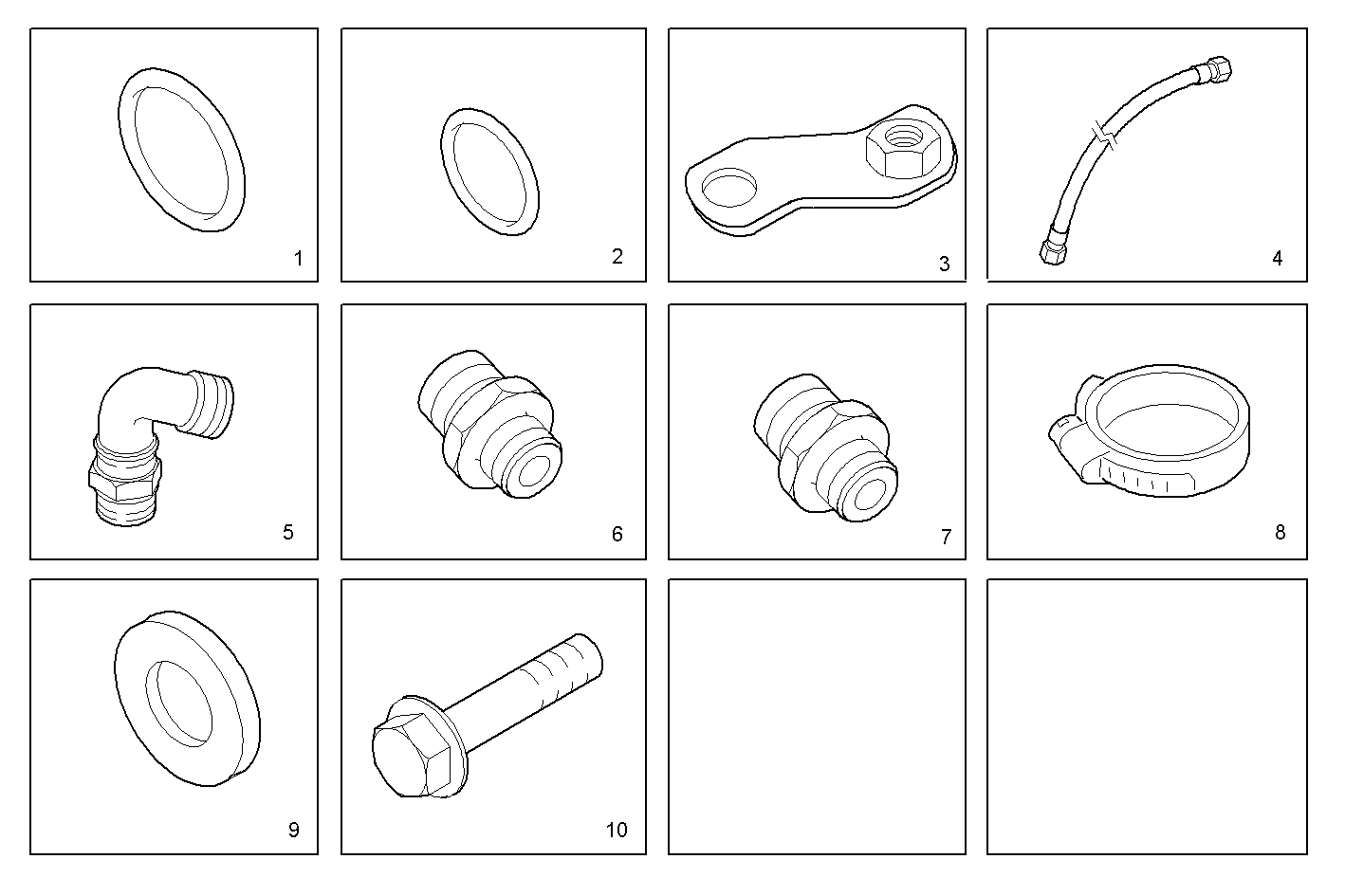

Item Part number Description
1 99489020 SEAL GASKET Ø18X26 MM SP=1,5 MM
2 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
3 8107203 RETAINER
4 8043676 OIL LINE
5 8025927 ELBOW COUPLING
6 500300594 THREADED UNION M18X1,5 - M14X1,5
7 41905554 PIPE SOCKET M14X1,5 - M16X1,5
8 17316490 CLIP
9 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
10 16605424 SCREW M8X16 MM (8.8)
