C13ENTM77.10

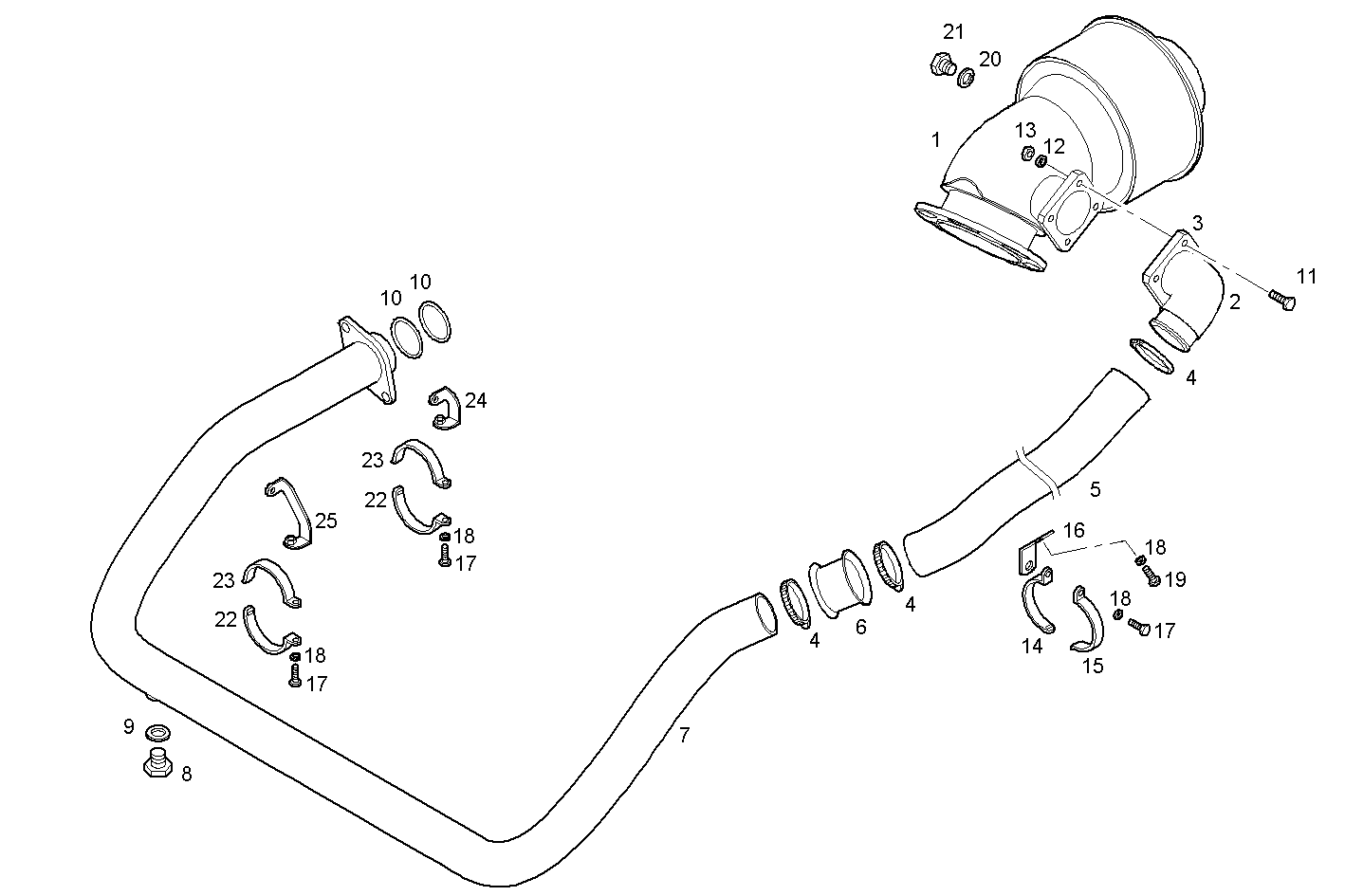

A40050512 TURNING EXHAUST ELBOW

Iveco/FPT TURNING EXHAUST ELBOW

Item Part number Description
1 8041286 MARINE EXHAUST PIPE
2 8111431 WATER PIPE INLET
3 8111433 FLANGE
4 17765093 CLIP Ø60/80 MM
5 8041337 HOSE
6 8042966 RUBBER SLEEVE
7 8041630 WATER PIPE
8 16992140 PLUG M10X1
9 99489016 SEAL GASKET Ø10X17 MM SP =1,5
10 17290481 O-RING 3,53x69,44 [UP TO # 328594]
11 16587325 HEXAGON BOLT M10X35 MM
12 17090174 SPRING WASHER Ø10X20 MM
13 17038131 HEXAGON NUT M10
14 8013655 CLAMP
15 8013656 CLAMP
16 8042299 RETAINER
17 16605424 SCREW M8X16 MM (8.8)
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
19 16605524 HEXAGON BOLT M8X20 MM
20 98474306 WASHER Ø12X20 MM SP=1,9 MM
21 16992240 THREADED PLUG M12X1,5
22 8017811 CLAMP
23 8017810 CLAMP
24 8042153 FASTENING BRACKET
25 8042249 FASTENING BRACKET
