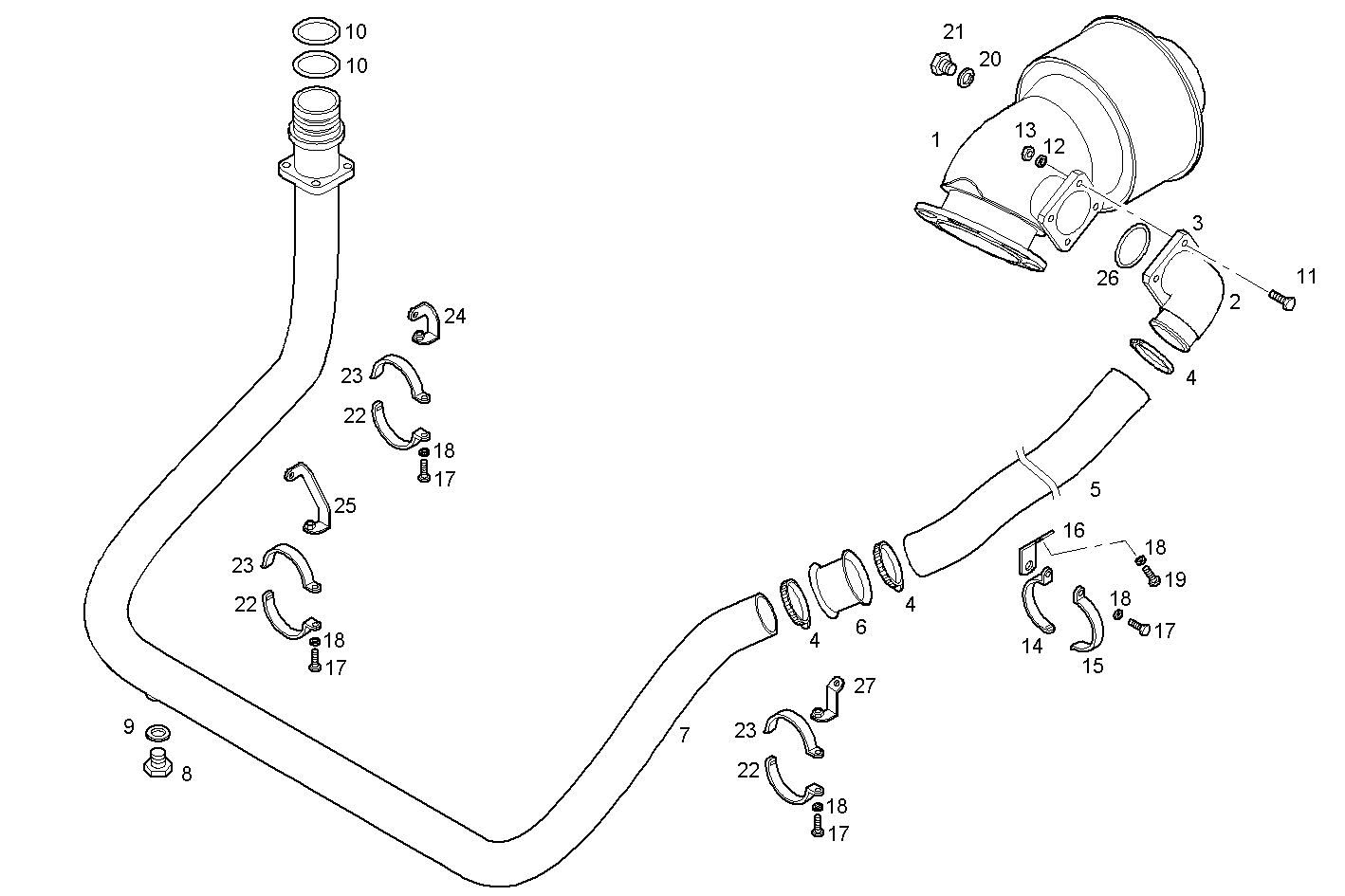

| Item |
Part number |
Description |
|
1 |
8041286 |
MARINE EXHAUST PIPE |
|
2 |
8111431 |
WATER PIPE INLET |
|
3 |
8111433 |
FLANGE |
|
4 |
17765093 |
CLIP �60/80 MM |
|
5 |
8041337 |
HOSE |
|
6 |
8042966 |
RUBBER SLEEVE |
|
7 |
8042520 |
WATER PIPE |
|
8 |
16992140 |
PLUG M10X1 |
|
9 |
99489016 |
SEAL GASKET �10X17 MM SP =1,5 |
|
10 |
17290481 |
O-RING 3,53x69,44 [UP TO # 328594] |
|
11 |
16587325 |
HEXAGON BOLT M10X35 MM |
|
12 |
17090174 |
SPRING WASHER �10X20 MM |
|
13 |
17038131 |
HEXAGON NUT M10 |
|
14 |
8013655 |
CLAMP |
|
15 |
8013656 |
CLAMP |
|
16 |
8042299 |
RETAINER |
|
17 |
16605424 |
SCREW M8X16 MM (8.8) |
|
18 |
17089474 |
SPRING WASHER �8X16 MM SP=1,4 MM |
|
19 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
20 |
98474306 |
WASHER �12X20 MM SP=1,9 MM |
|
21 |
16992240 |
THREADED PLUG M12X1,5 |
|
22 |
8017811 |
CLAMP |
|
23 |
8017810 |
CLAMP |
|
24 |
8042153 |
FASTENING BRACKET |
|
25 |
8042249 |
FASTENING BRACKET |
|
26 |
17290281 |
O-RING �63,09 MM SP=3,53 MM |
|
27 |
8041570 |
FASTENING BRACKET |
