C13ENTM77.10

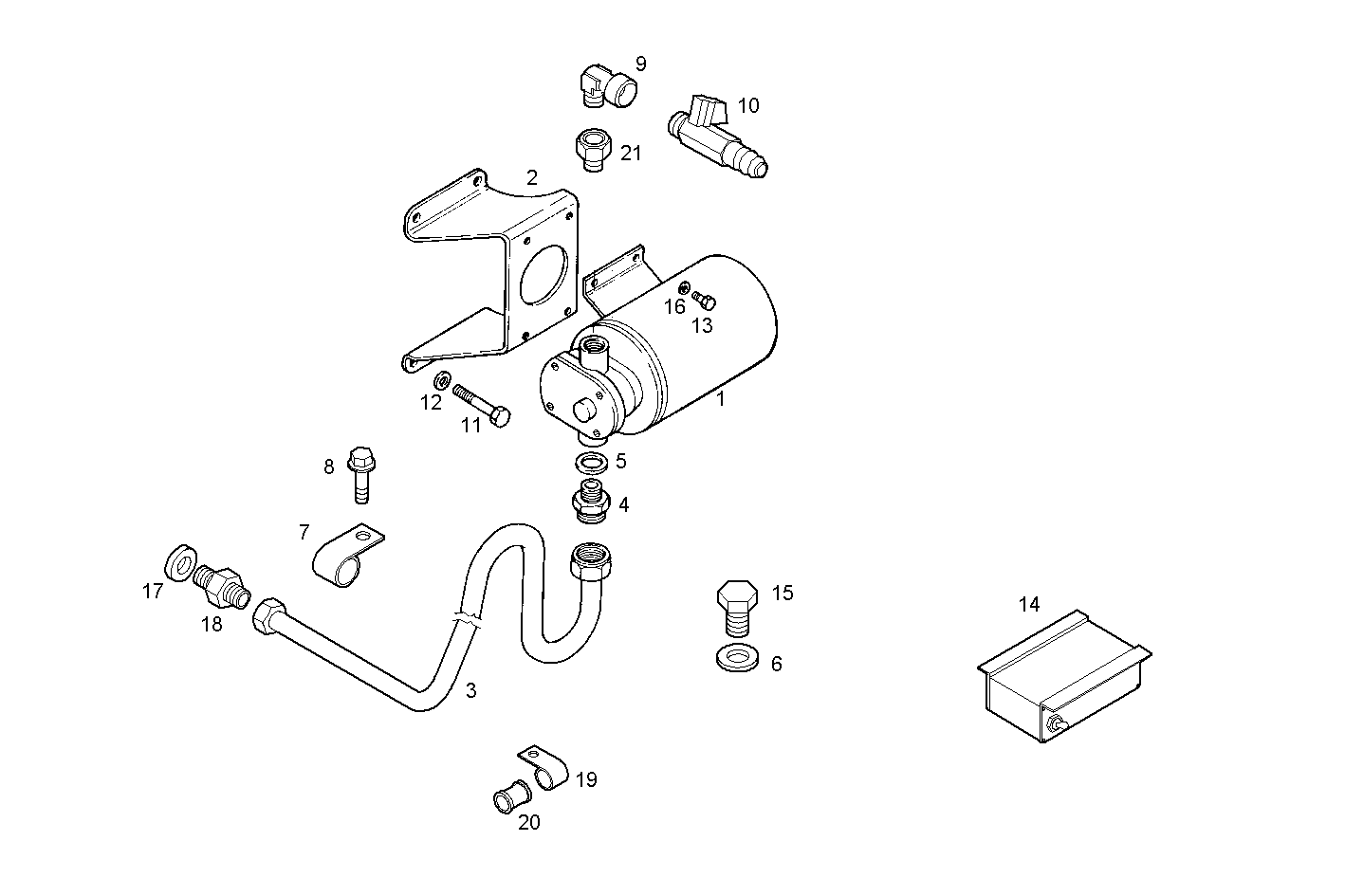

A49130502 OIL DRAIN PUMP

Iveco/FPT OIL DRAIN PUMP

Item Part number Description
1 8032366 OIL DRAIN ELECTRIC PUMP
2 8030497 RETAINER
3 8043024 OIL LINE
4 8011422 PIPE SOCKET Ø3/8''/M22 MM
5 11270460 GASKET Ø17X21X1,5 MM
6 98429281 SEAL GASKET Ø24X31 MM SP=1,5 MM
7 17316790 CLIP
8 16605324 SCREW M8X12
9 8005303 PIPE SOCKET M16X1,5
10 8113932 DRAIN COCK
11 16586924 HEXAGON BOLT M8X50 MM
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 16603524 SCREW M6X12 MM (8.8)
14 8034478 SWITCH PANEL for oil drain pump
15 16994111 PLUG M24X1,5
16 17088474 WASHER Ø6X12 MM
17 99489022 SEAL GASKET Ø22X30 MM SP=1,5 MM
18 8041011 PIPE SOCKET
19 4763804 FASTENING BRACKET
20 4757122 RUBBER PAD
21 8034440 THREADED UNION
