C13ENTM83.10

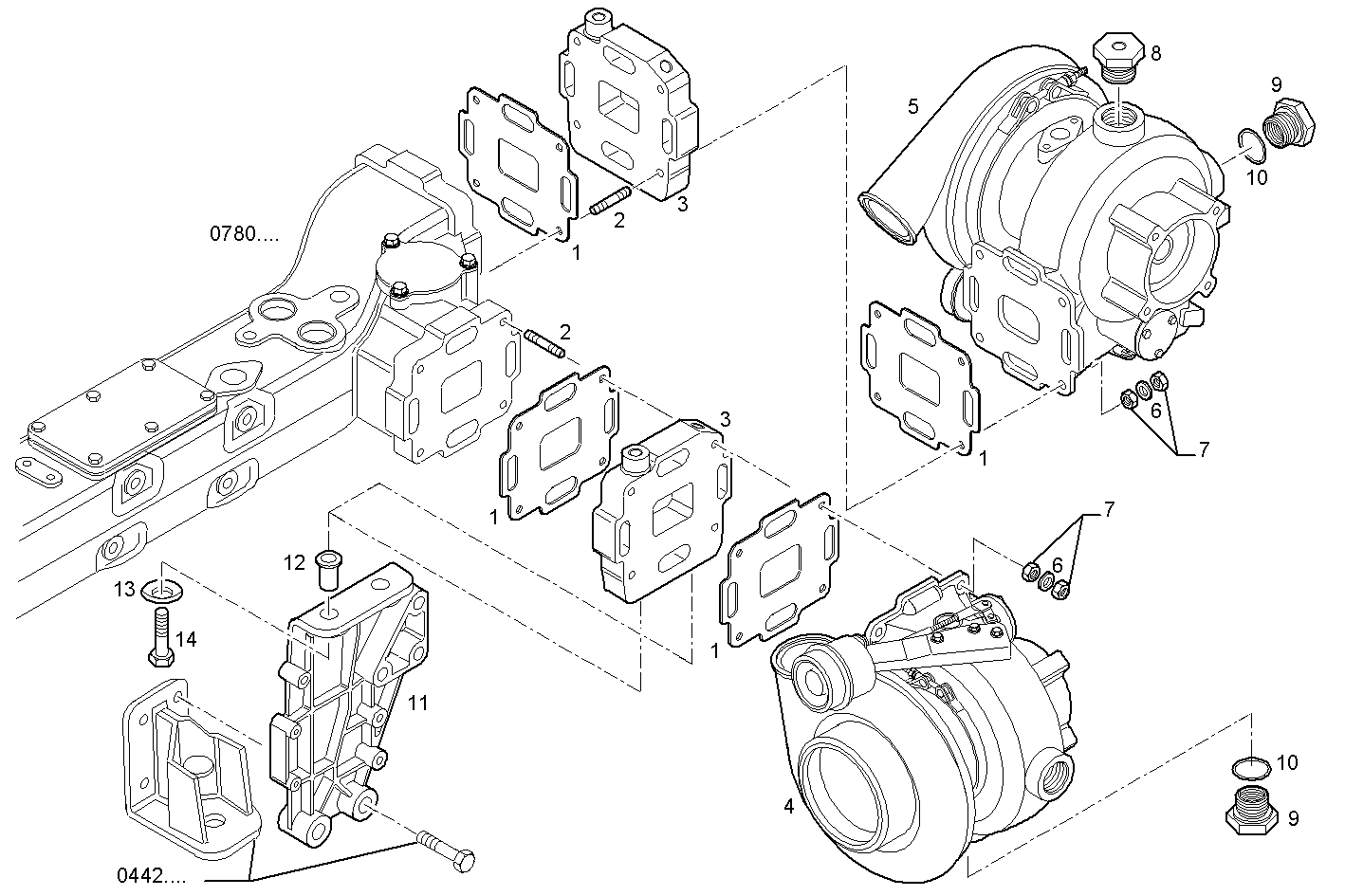

2400.044 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8027510 | FLAT ENGINE GASKET |
| 2 | 16749334 | STUD M10X65 MM |
| 3 | 8047366 | SPACING BAR |
| 4 | 8046509 | WATER COOL.TURBOCHARGER SIDE |
| 5 | 8046511 | WATER COOL.TURBOCHARGER REAR |
| 6 | 17090274 | WASHER Ø10X20 MM |
| 7 | 17042631 | NUT M10X1,5 (10) |
| 8 | 8048562 | THREADED UNION |
| 9 | 8048345 | THREADED UNION |
| 10 | 17916481 | O-RING |
| 11 | 8048178 | FASTENING BRACKET |
| 12 | 8041809 | BUSH |
| 13 | 8041806 | SPRING |
| 14 | 16587525 | HEXAGON BOLT M10X45 MM |
