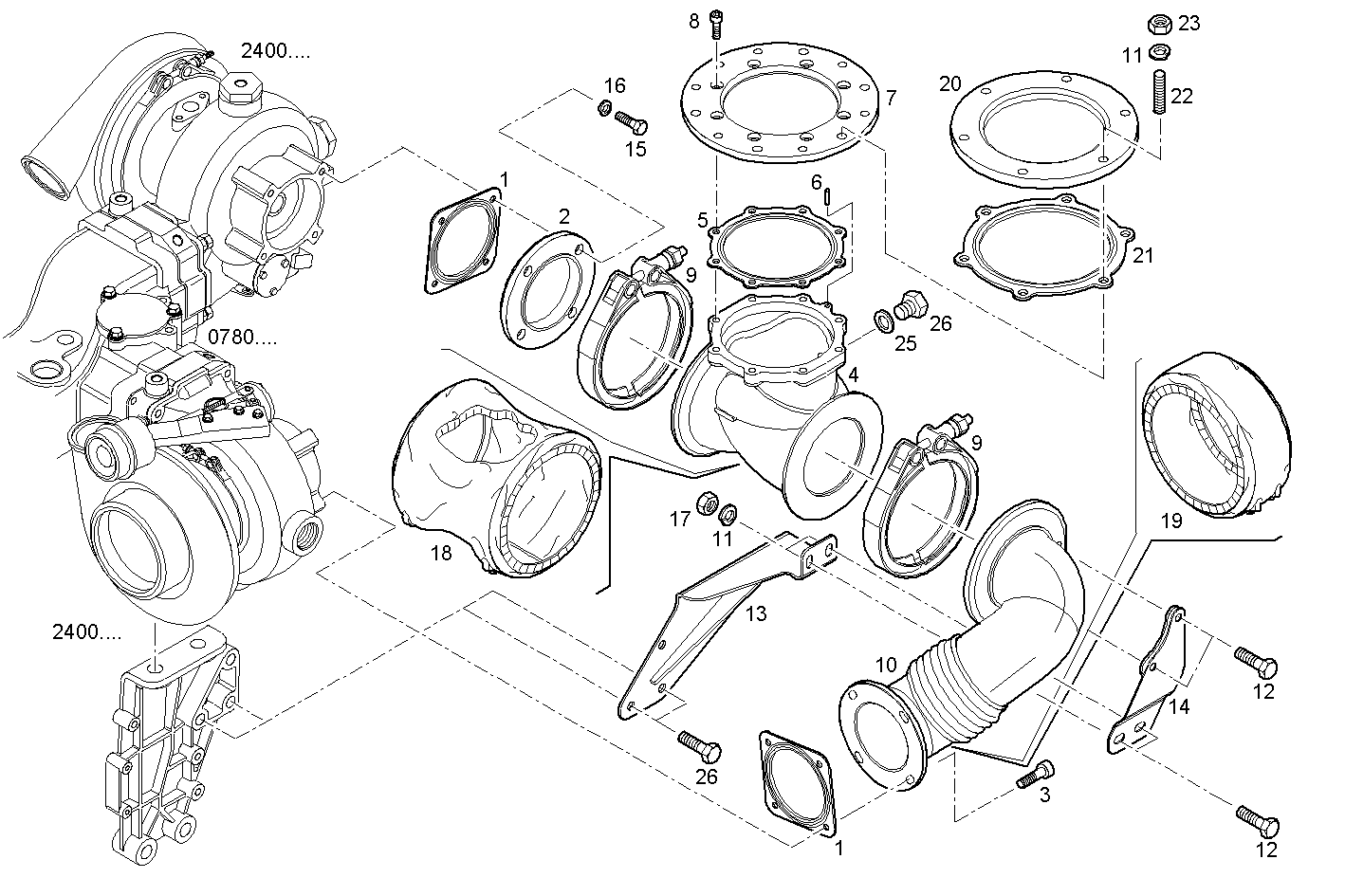

| Item |
Part number |
Description |
|
1 |
8040168 |
EXH. MANIFOLD GKT |
|
2 |
8048633 |
FLANGE |
|
3 |
16707134 |
SOCKET-HEAD SCREW M8X20 MM |
|
4 |
8048663 |
AIR PIPE/DUCT |
|
5 |
8048659 |
FLAT ENGINE GASKET |
|
6 |
17236310 |
PARALLEL PIN |
|
7 |
8048654 |
FLANGE |
|
9 |
8040436 |
CLIP |
|
10 |
8048602 |
EXHAUST ELBOW |
|
11 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
12 |
16673635 |
HEXAGON BOLT M8X1.25X20 |
|
13 |
8047974 |
RETAINER |
|
14 |
8048681 |
RETAINER |
|
15 |
16605525 |
HEXAGON BOLT M8X20 MM [FROM 10-03-06] |
|
16 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
17 |
17037931 |
HEXAGON NUT M8X1,25 |
|
18 |
8049915 |
PROTECTION |
|
19 |
8049916 |
PROTECTION |
|
20 |
8048661 |
FLANGE [UP TO 29/02/08] |
|
21 |
8048655 |
FLAT ENGINE GASKET |
|
22 |
16731234 |
STUD M10X1,5X25 |
|
23 |
17038131 |
HEXAGON NUT M10 |
|
24 |
16992211 |
THREADED PLUG M12X1,5 |
|
25 |
99489017 |
SEAL GASKET Ø12X20 MM SP=1,5 MM |
|
26 |
16607625 |
SCREW M10X25 |
