C13ENTM83.10

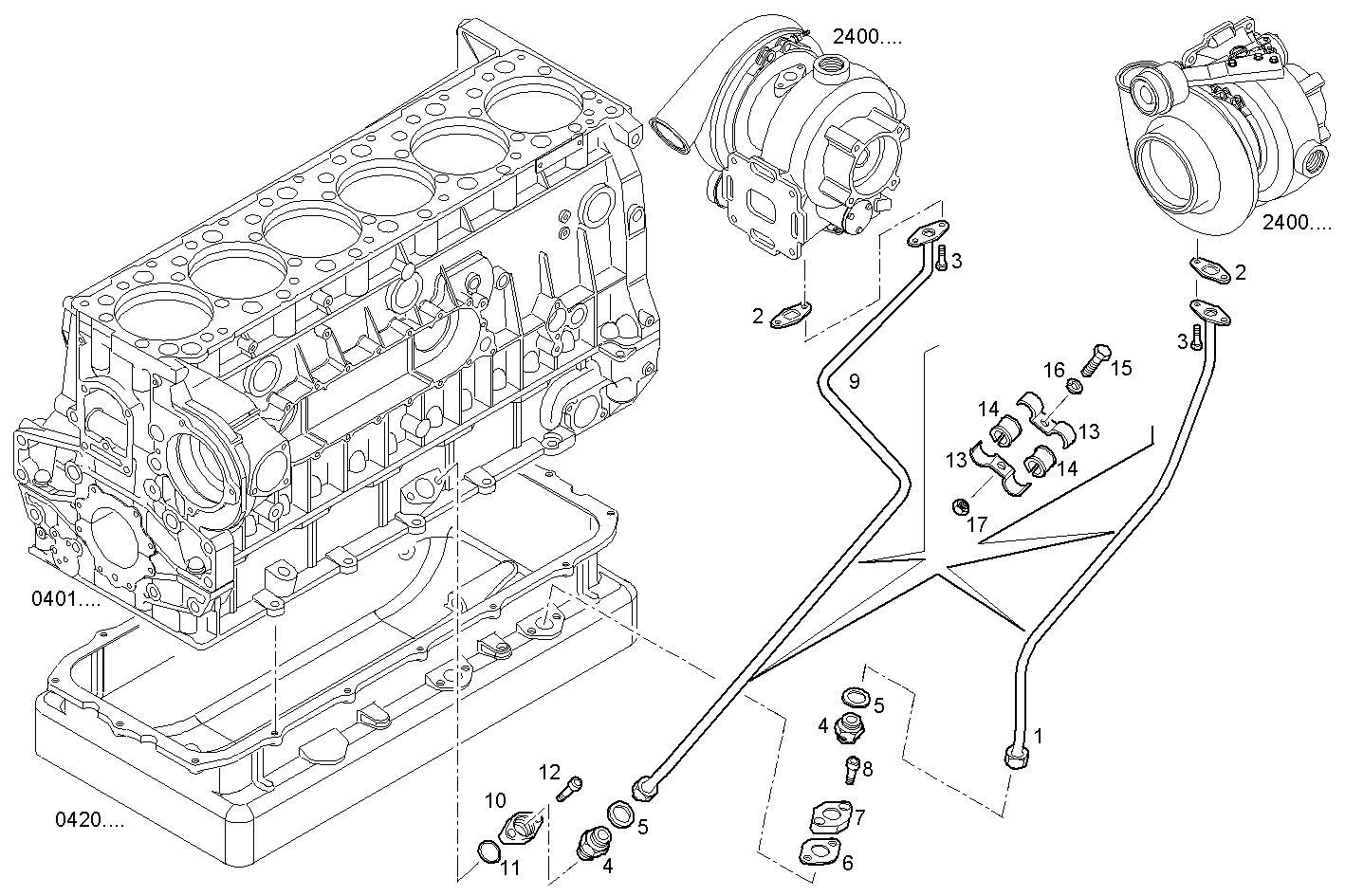

3065.022 RETURN OIL LINE
| Item | Part number | Description |
|---|---|---|
| 1 | 8049170 | OIL LINE |
| 2 | 98412509 | FLAT ENGINE GASKET |
| 3 | 16605625 | HEXAGON BOLT M8X25 |
| 4 | 8031297 | THREADED UNION |
| 5 | 99434480 | SEAL GASKET Ø30X40 MM |
| 6 | 4863361 | GASKET |
| 7 | 8049178 | FLANGE |
| 8 | 16707134 | SOCKET-HEAD SCREW M8X20 MM |
| 9 | 8049152 | OIL LINE |
| 10 | 8040800 | RETAINER |
| 11 | 17282681 | O-RING SP=2,62 MM |
| 12 | 16690625 | CYLIND-HEAD SCREW M8X25 MM |
| 13 | 4747140 | RUBBER PAD |
| 14 | 8008215 | CLAMP |
| 15 | 16673735 | HEXAGON BOLT M8X25 MM |
| 16 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 17 | 17037925 | HEXAGON NUT M8X1,25 |
