C13ENTM83.10

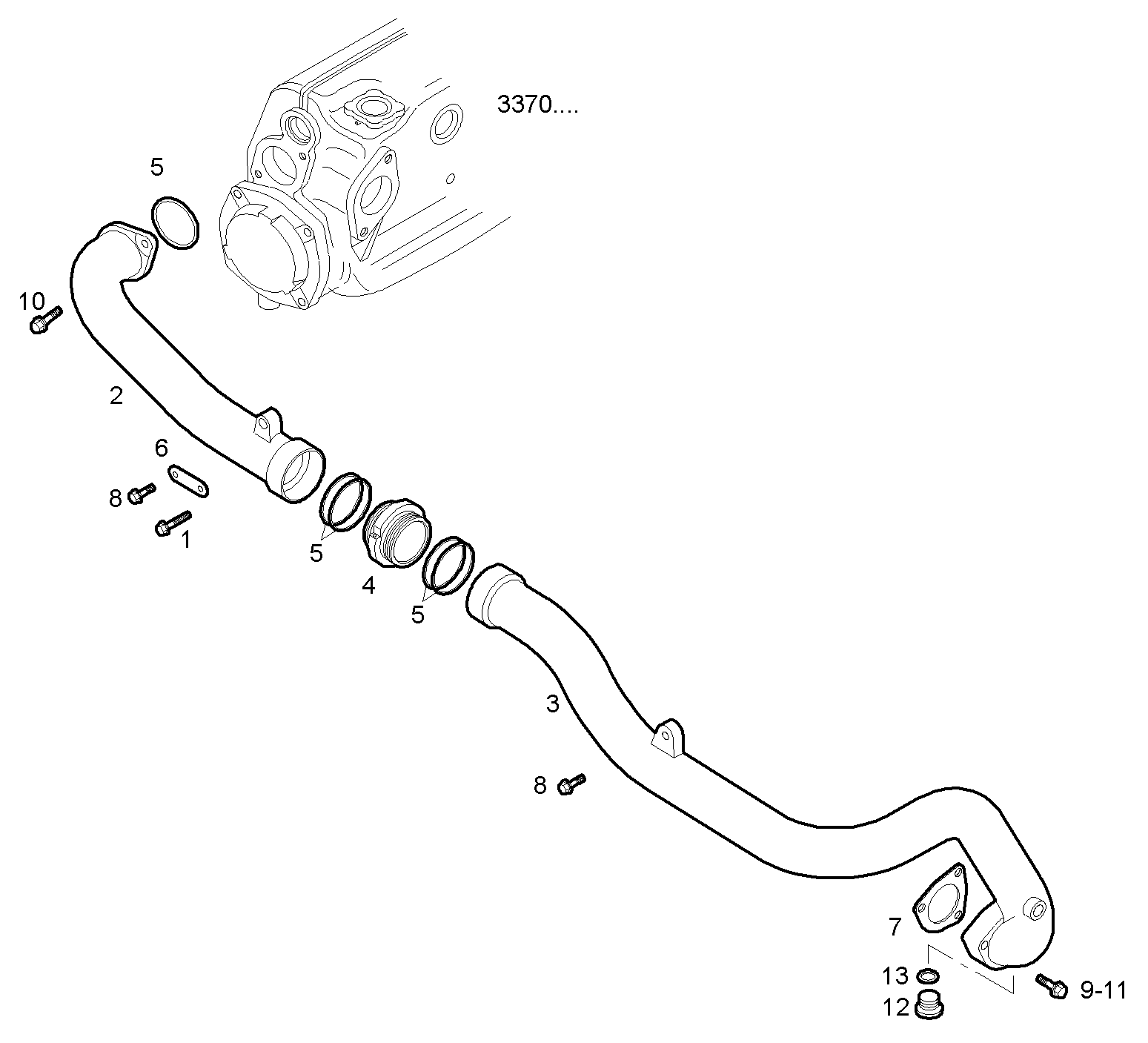

3230.026 WATER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 16598425 | HEXAGON BOLT M8X110 MM |
| 2 | 8037637 | WATER PIPE |
| 3 | 8035096 | WATER PIPE |
| 4 | 8032183 | SPACING BAR |
| 5 | 17290581 | O-RING Ø72,63X3,53 MM |
| 6 | 8032736 | CONNECTING PLATE |
| 7 | 99466940 | FLAT ENGINE GASKET |
| 8 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 9 | 16592625 | HEXAGON BOLT M8X80 MM |
| 10 | 16673735 | HEXAGON BOLT M8X25 MM |
| 11 | 16586725 | HEXAGON BOLT M8X1.25X40 MM |
| 12 | 16992240 | THREADED PLUG M12X1,5 |
| 13 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
