C13ENTM83.10

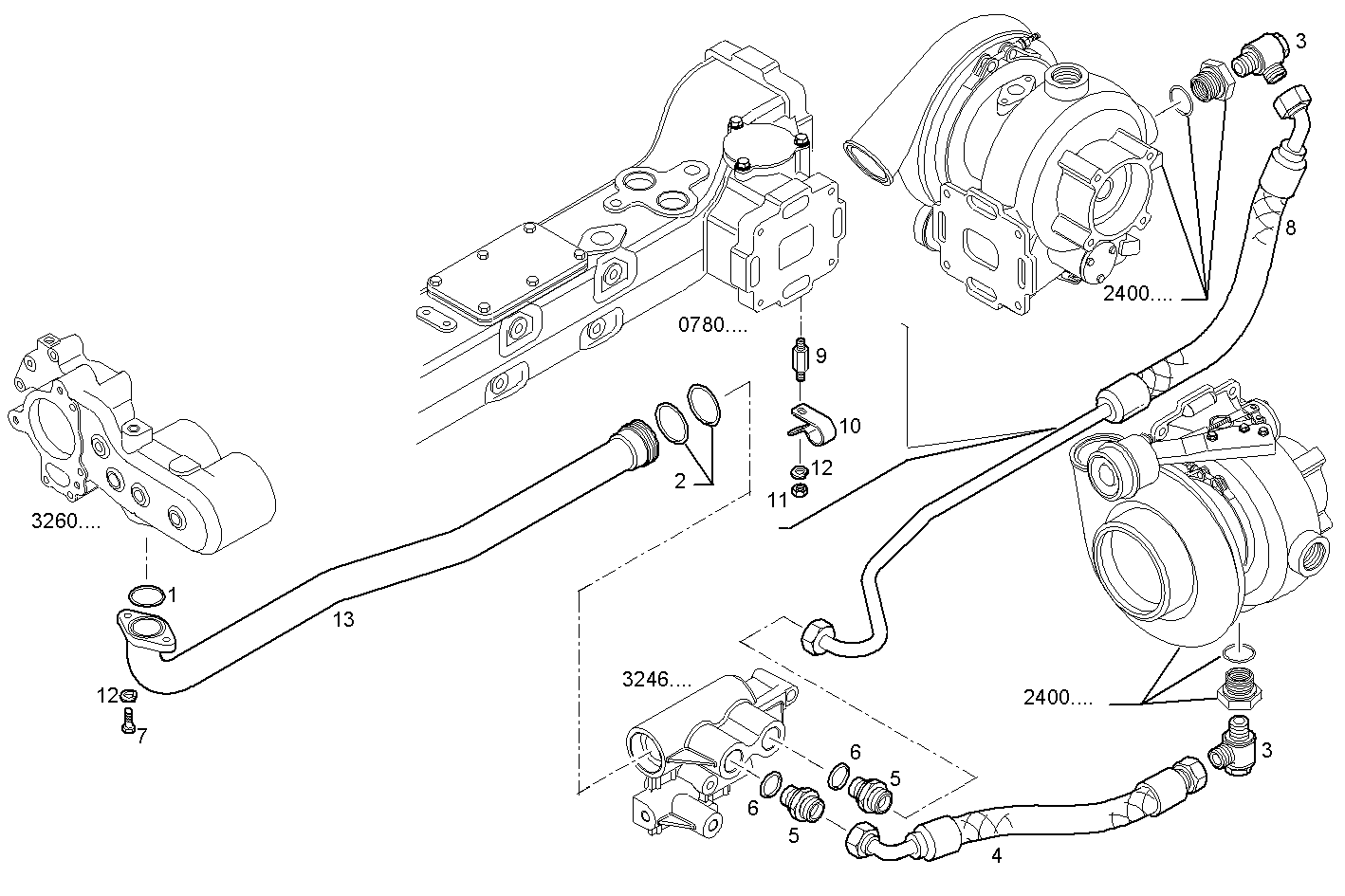

3248.005 TURBO WATER OUTLET PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 17289481 | O-RING Ø37,69 MM SP=3,53 MM |
| 2 | 17283381 | O-RING Ø40,94X2,62 MM |
| 3 | 8048439 | SWIVEL COUPLING |
| 4 | 8048354 | WATER PIPE |
| 5 | 41031577 | THREADED UNION M26X1,5/M30X2,0 |
| 6 | 99489024 | SEAL GASKET dia. 26x36x1,5 |
| 7 | 16605625 | HEXAGON BOLT M8X25 |
| 8 | 8048356 | WATER PIPE |
| 9 | 8044290 | SPACING BAR |
| 10 | 8010597 | RETAINER |
| 11 | 17037921 | HEXAGON NUT M8X1,25 |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 13 | 8040274 | WATER PIPE |
