C13ENTM83.10

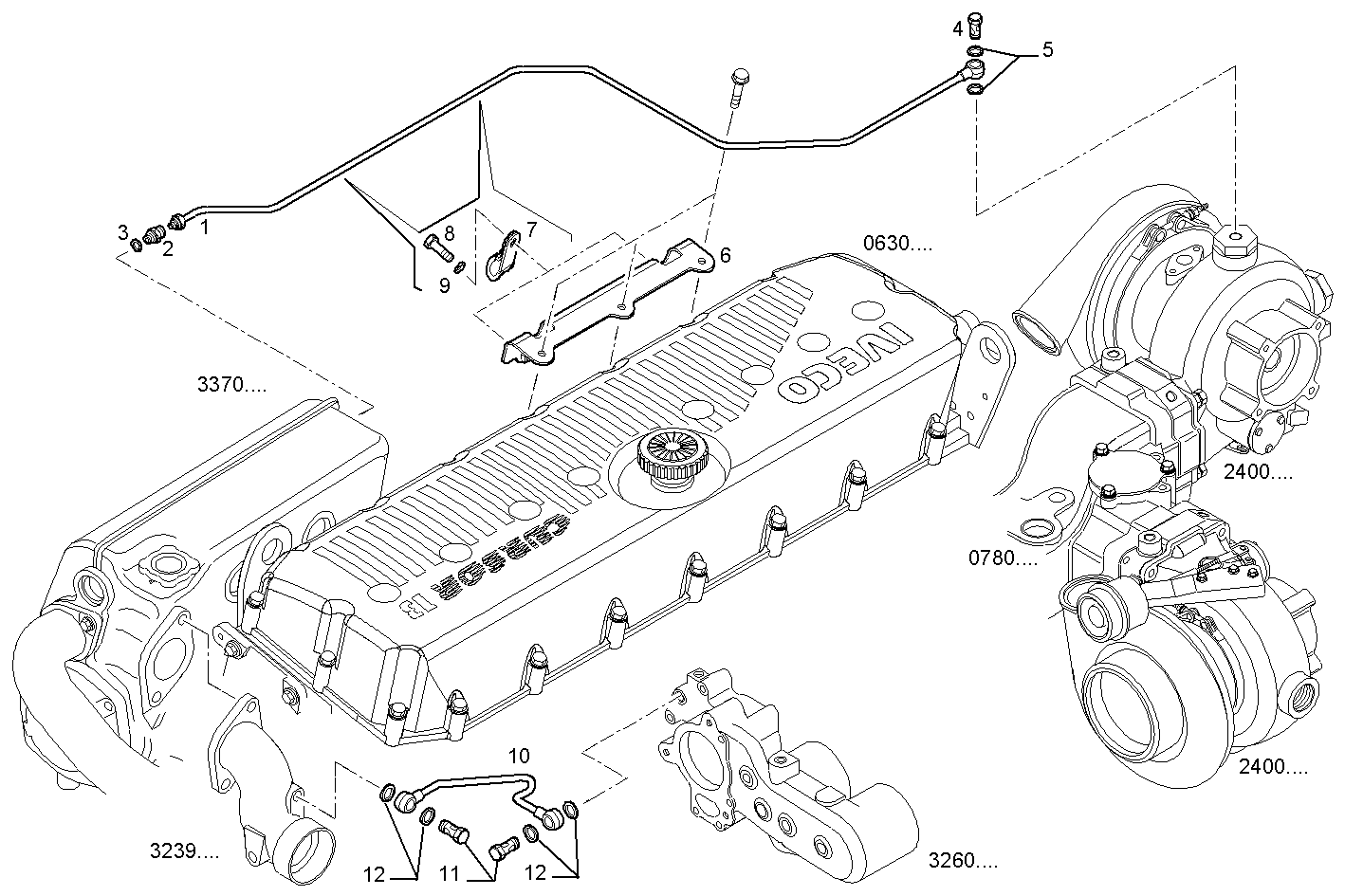

3252.021 BLEEDER TUBING
| Item | Part number | Description |
|---|---|---|
| 1 | 8048528 | BREATHER PIPE |
| 2 | 16500114 | THREADED UNION M12X1,5 - M14X1,5 |
| 3 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
| 4 | 504081281 | SCREW CONNECTOR M12X1,5 |
| 5 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 6 | 8043633 | FASTENING BRACKET |
| 7 | 17314790 | FASTENING BRACKET Ø8 MM |
| 8 | 16603425 | HEXAGON BOLT M6X10 |
| 9 | 17088774 | WASHER Ø6 MM |
| 10 | 8049386 | BREATHER PIPE |
| 11 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 12 | 98474308 | SEAL GASKET Ø14X22 MM |
