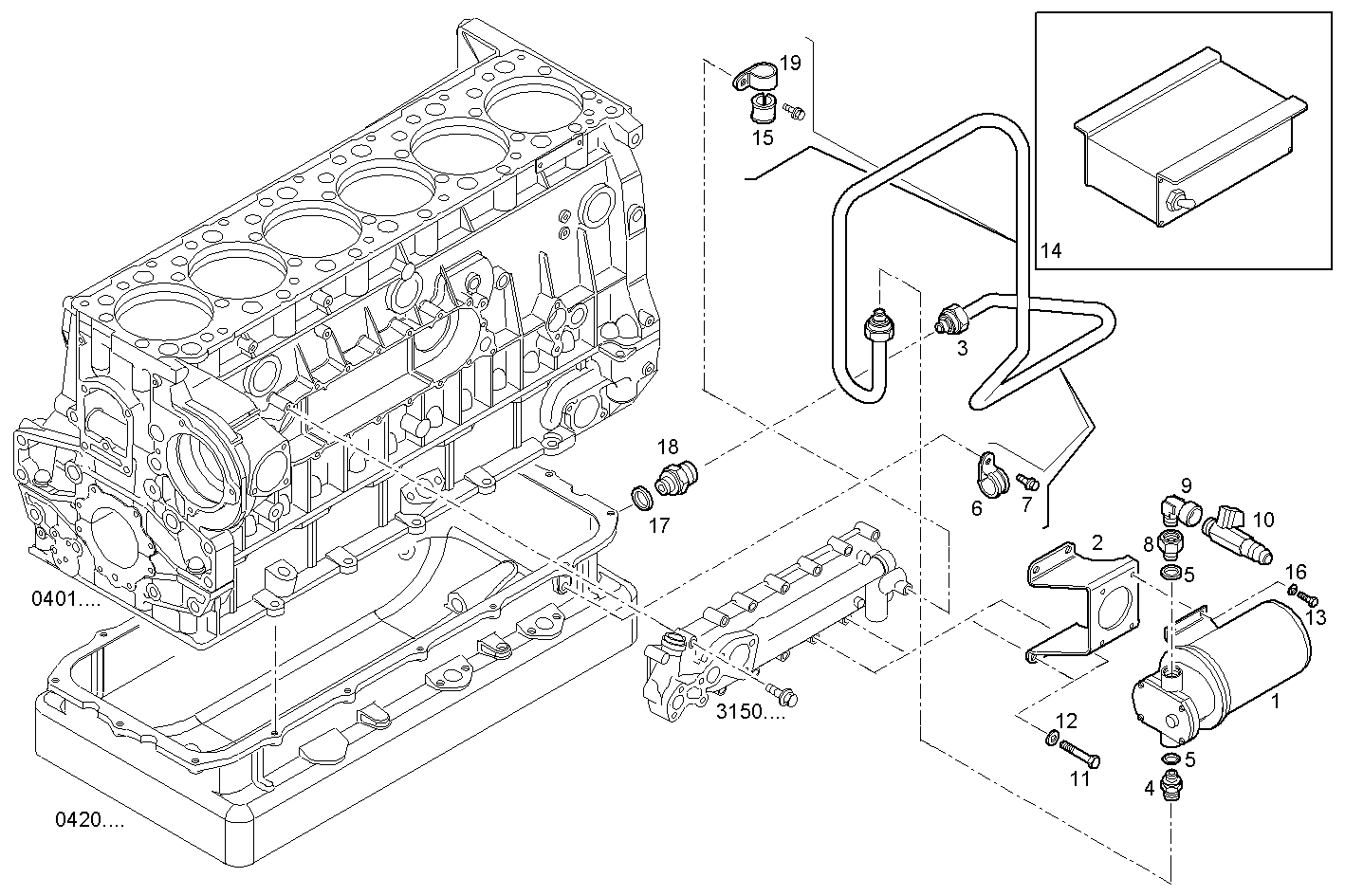

| Item |
Part number |
Description |
|
1 |
8032366 |
OIL DRAIN ELECTRIC PUMP |
|
2 |
8030497 |
RETAINER |
|
3 |
8043024 |
OIL LINE |
|
4 |
8011422 |
PIPE SOCKET Ø3/8''/M22 MM |
|
5 |
11270460 |
GASKET Ø17X21X1,5 MM |
|
6 |
10450490 |
PIPE CLIP Ø16 MM |
|
7 |
16043024 |
HEXAGON BOLT M8X12 MM (8.8) |
|
8 |
8034440 |
THREADED UNION |
|
9 |
8005303 |
PIPE SOCKET M16X1,5 |
|
10 |
8113932 |
DRAIN COCK |
|
11 |
16586925 |
HEXAGON BOLT M8X50 MM |
|
12 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
13 |
16603525 |
SCREW M6X12 MM |
|
14 |
8034478 |
SWITCH PANEL for oil drain pump |
|
15 |
4757122 |
RUBBER PAD |
|
16 |
17088474 |
WASHER Ø6X12 MM |
|
17 |
99489022 |
SEAL GASKET Ø22X30 MM SP=1,5 MM |
|
18 |
8041011 |
PIPE SOCKET |
|
19 |
4763804 |
FASTENING BRACKET |
