C13ENTM83.10

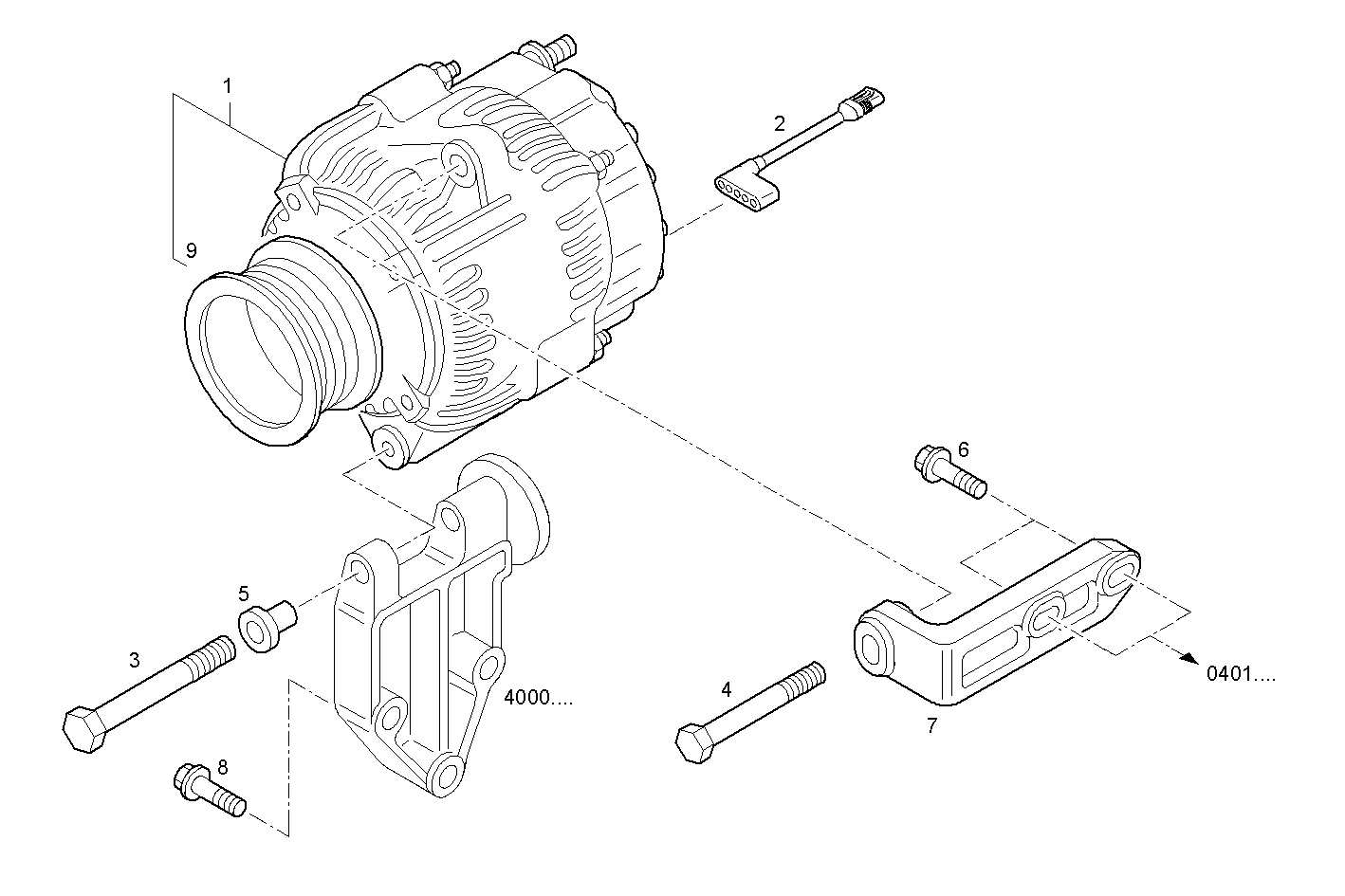

A14140502 ALTERNATOR - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 504254440 | ALTERNATOR ASSY |
| 2 | 41245627 | WIRE/CABLE |
| 3 | 99474161 | SCREW M10 |
| 4 | 16586625 | HEXAGON BOLT M8X35 MM |
| 5 | 99484032 | SPACER BUSH |
| 6 | 16673835 | HEXAGON BOLT M8X30 MM |
| 7 | 99458521 | FASTENING BRACKET |
| 8 | 16587425 | HEXAGON BOLT M10X40 MM |
| 9 | 42548125 | GENERATOR PULLEY |
