C13ENTM83.10

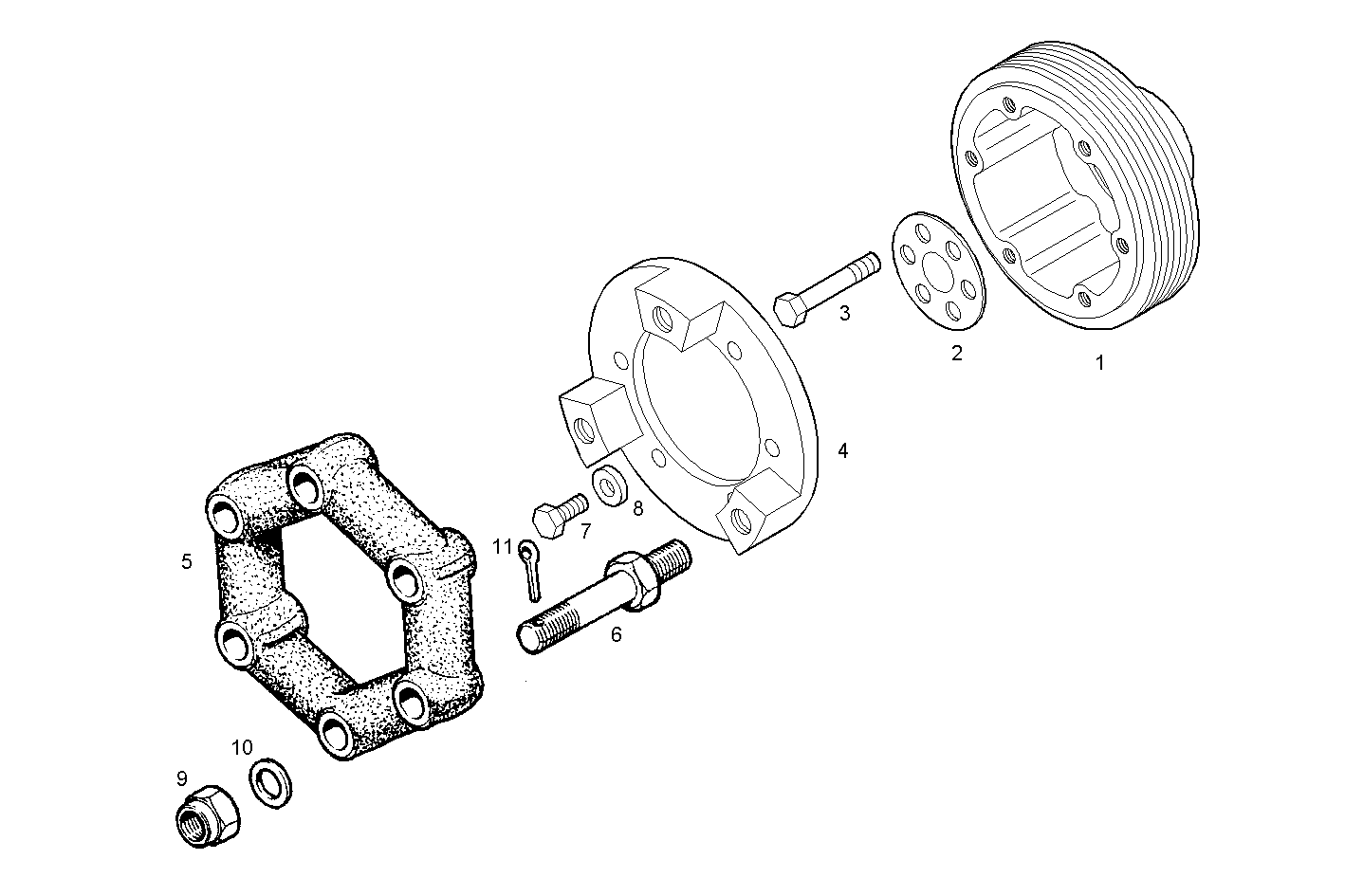

A26070503 PULLEY - with additional groves with flexible coupling GIUBO
| Item | Part number | Description |
|---|---|---|
| 1 | 8038483 | CRANKSHAFT PULLEY |
| 2 | 500339537 | STOP WASHER |
| 3 | 16681435 | HEXAGON BOLT M14X100 |
| 4 | 8021179 | SPACING BAR |
| 5 | 8104736 | FLEXIBLE COUPLING |
| 6 | 8013406 | THREADED UNION |
| 7 | 16680335 | HEXAGON BOLT M14X40 |
| 8 | 17096004 | WASHER Ø20X37 MM |
| 9 | 17068221 | NUT M20X1,5 |
| 11 | 16858701 | SPLIT PIN Ø4 MM |
