C13ENTM83.10

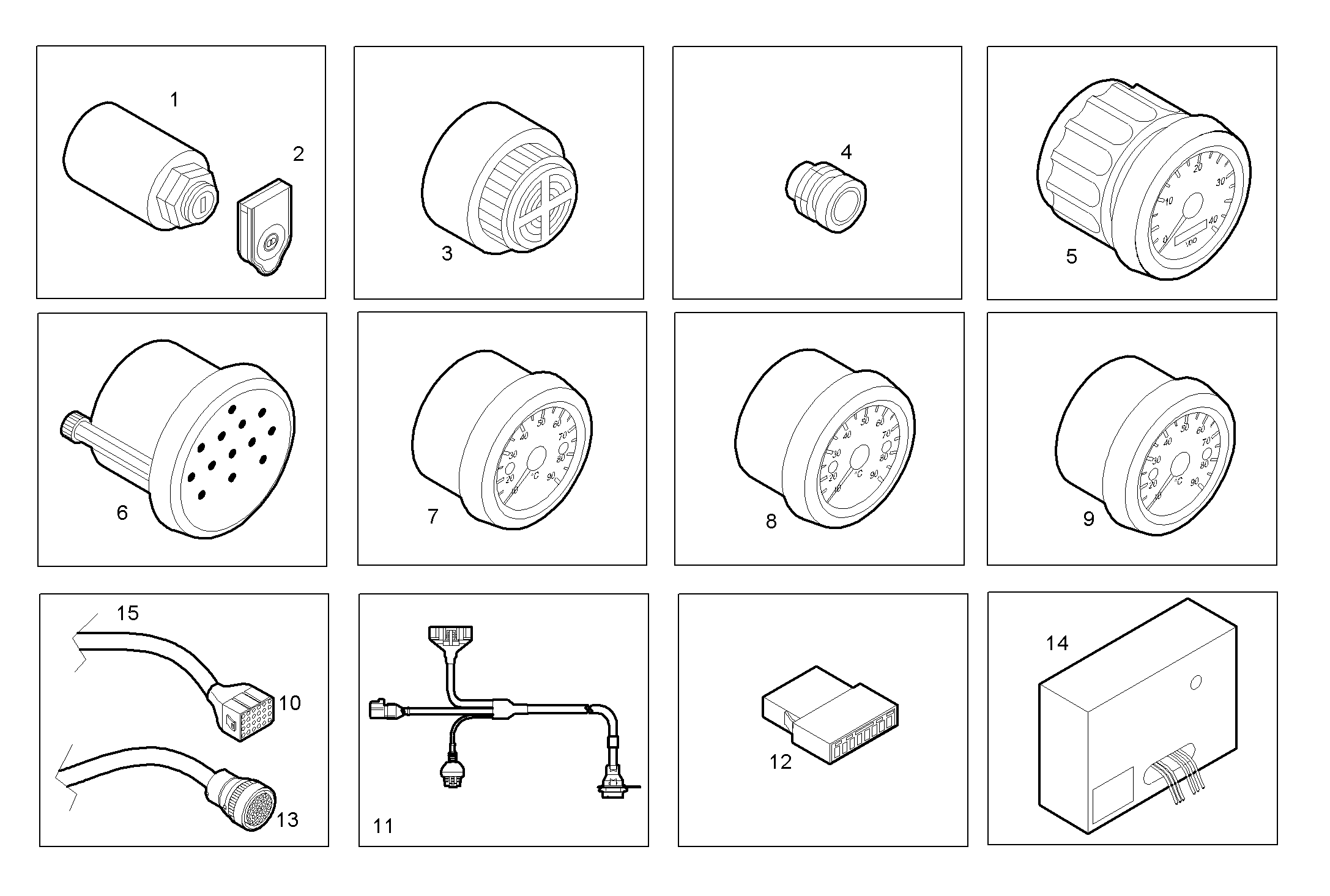

A38310507 SIMPLE INSTRUMENTS KIT - 24V - VDO
| Item | Part number | Description |
|---|---|---|
| 1 | 8035169 | SWITCH |
| 2 | 8035172 | COVER |
| 3 | 8035166 | ACOUSTIC HORN |
| 4 | 8036498 | SWITCH ASSY |
| 5 | 8030617 | REVOLUTION COUNTER |
| 6 | 8034892 | WARNING LIGHT |
| 7 | 8030614 | THERMOMETER |
| 8 | 8030615 | PRESSURE GAUGE 10 BAR |
| 9 | 8030616 | VOLTMETER |
| 10 | 8036143 | CONNECTION |
| 11 | 8041699 | EXTENSION interface analog.panel |
| 12 | 8042637 | WIRE CONNECTOR |
| 13 | 8041994 | EXTENSION 1 mt. |
| 14 | 8045531 | SWITCH PANEL analog.converter- VDO instrum. |
| 15 | 8043749 | ENGINE-BRIDGE CONN. 7 mt. |
