C13ENTM83.10

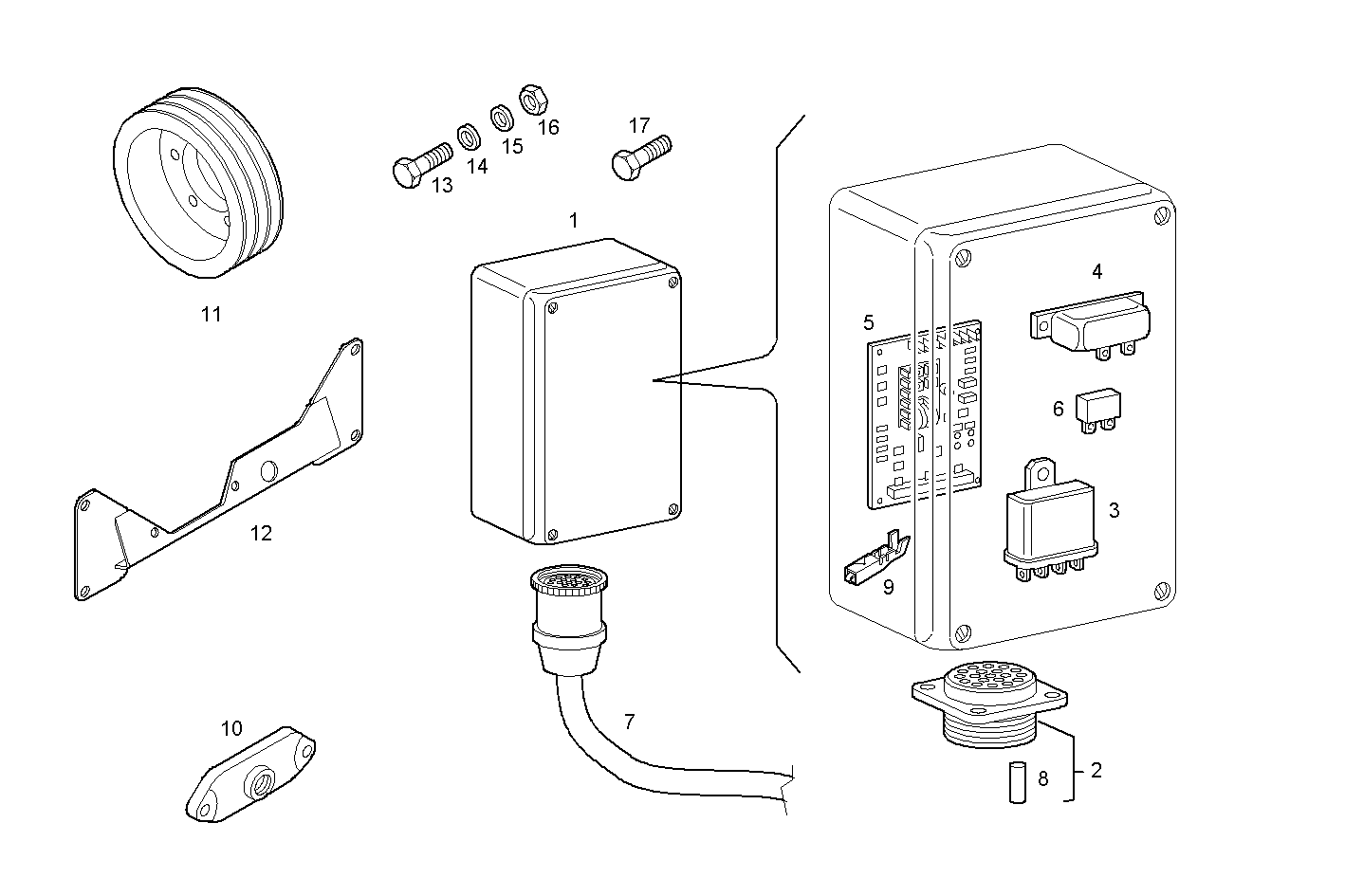

A38650503 OVERSPEED DEVICE 24V AT MAX RPM
| Item | Part number | Description |
|---|---|---|
| 1 | 8042435 | ENGINE STOP ASSY |
| 2 | 8113170 | CONNECTION ASSY |
| 3 | 8109519 | RELAY STOP [up to 05-95] |
| 4 | 8108575 | RELAY STARTER [up to 12-90] |
| 5 | 8024338 | ELECTRONIC CARD |
| 6 | 18095490 | FUSE |
| 7 | 8040989 | WIRE/CABLE |
| 8 | 8113089 | CONNECTION |
| 9 | 99433710 | TERMINAL |
| 10 | 8033812 | PLATE |
| 11 | 8108479 | PULLEY |
| 12 | 8018637 | SUPPORT |
| 13 | 16603734 | HEXAGON BOLT M6X20 MM |
| 14 | 17798174 | SPRING WASHER �6,1X11,8 MM |
| 15 | 17094724 | WASHER �6X12 MM |
| 16 | 17037821 | HEXAGON NUT M6X1 |
| 17 | 16597925 | HEXAGON BOLT M8X14 MM |
