C13ENTM83.10

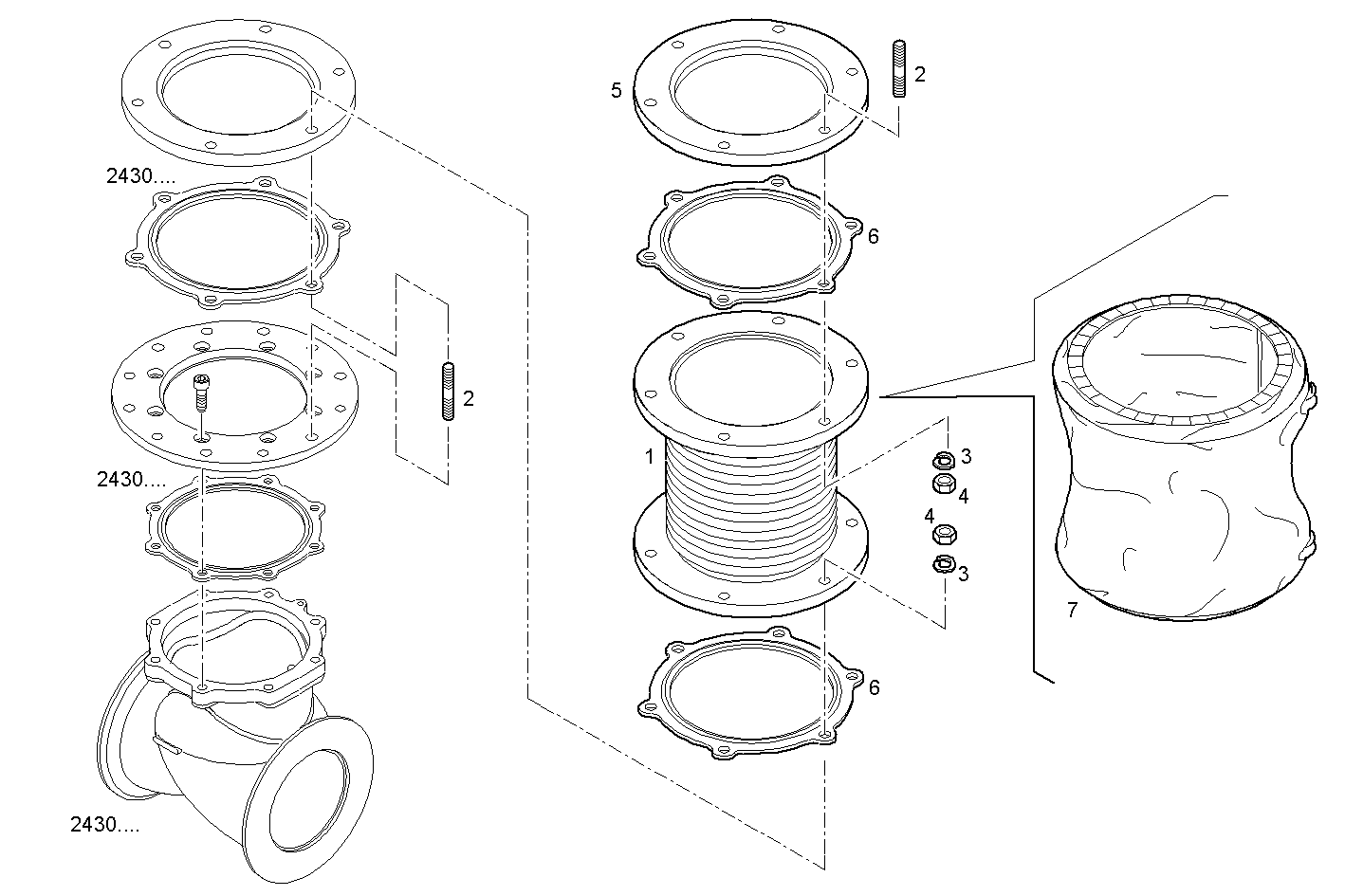

A40030524 UPWARD EXHAUST ELBOW
| Item | Part number | Description |
|---|---|---|
| 1 | 8048859 | EXHAUST PIPE |
| 2 | 16731234 | STUD M10X1,5X25 |
| 3 | 17090174 | SPRING WASHER Ø10X20 MM |
| 4 | 17038131 | HEXAGON NUT M10 |
| 5 | 8048661 | FLANGE [UP TO 29/02/08] |
| 6 | 8048655 | FLAT ENGINE GASKET |
| 7 | 8050164 | PROTECTION |
