C13ENTM83.10

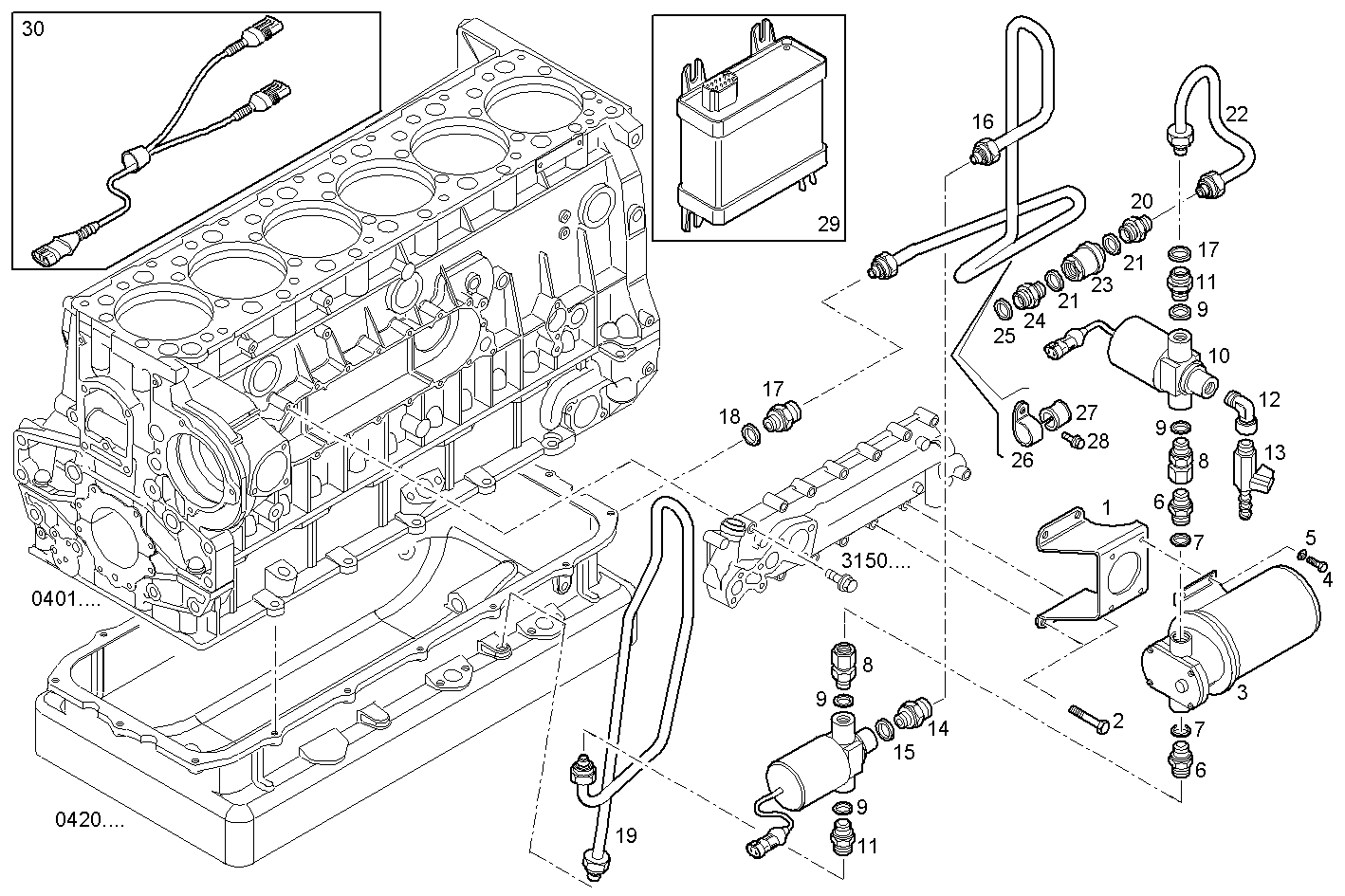

A49110504 ENGINE PRE-LUBRIC./EXTR. OIL PUMP

Iveco/FPT ENGINE PRE-LUBRIC./EXTR. OIL PUMP

Item Part number Description
1 8030497 RETAINER
2 16586925 HEXAGON BOLT M8X50 MM
3 8032366 OIL DRAIN ELECTRIC PUMP
4 16603525 SCREW M6X12 MM
5 17088474 WASHER Ø6X12 MM
6 8031881 PIPE SOCKET Ø3/8''/M16 MM
7 16508360 WASHER 18x22x1,5
8 8031863 PIPE SOCKET
9 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
10 8031292 ELECTROVALVE
11 8049488 THREADED UNION
12 8005303 PIPE SOCKET M16X1,5
13 8113932 DRAIN COCK
14 8011696 PIPE SOCKET M16X1,5/M22X1,5
15 99489019 WASHER Ø16X24 MM SP=1,5 MM
16 8049101 OIL LINE
17 8041011 PIPE SOCKET
18 99489022 SEAL GASKET Ø22X30 MM SP=1,5 MM
19 8049145 OIL LINE
20 8049144 THREADED UNION
21 16508460 WASHER 22x27x1,5
22 8049164 OIL LINE
23 8011241 VALVE 1/2''
24 8031795 PIPE SOCKET Ø1/2''/M24 MM
25 99489023 SPRING WASHER D=24X33X1,5
26 4763804 FASTENING BRACKET
27 4757122 RUBBER PAD
28 16586221 HEXAGON BOLT M8X16
29 8050207 SWITCHGEAR
30 8050250 ENGINE HARNESS
