C13ENTM83.10

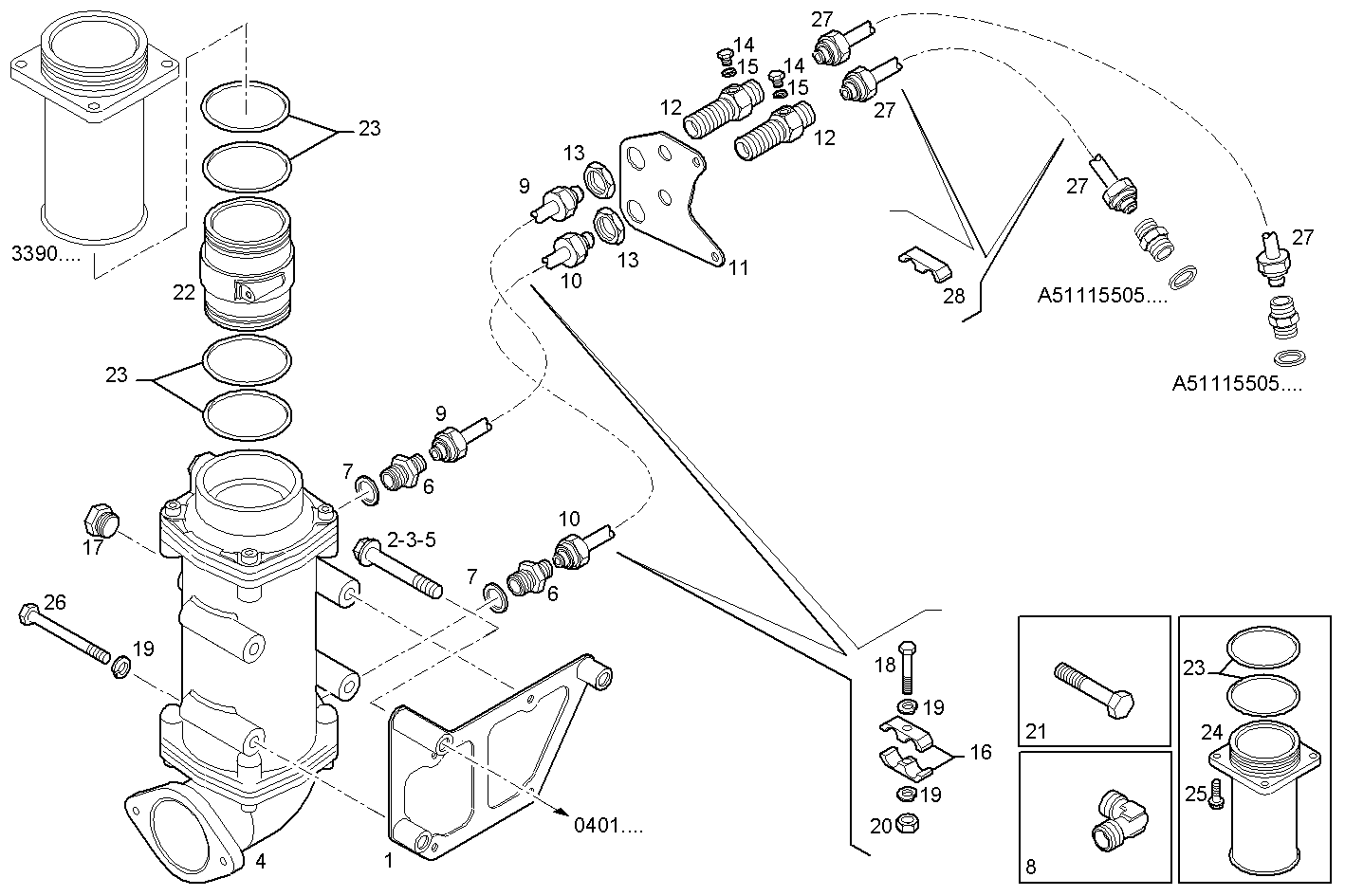

A51115508/01 MARINE GEAR ZF 325-1A - ratio 1:2.037

Iveco/FPT MARINE GEAR ZF 325-1A

Item Part number Description
1 8041552 SUPPORT
2 16586925 HEXAGON BOLT M8X50 MM
3 16592625 HEXAGON BOLT M8X80 MM
4 8040270 MARINE GEAR OIL HEAT EXCH ASSY
5 16598325 HEXAGON BOLT M8X100 MM
6 8011519 PIPE SOCKET
7 11271460 GASKET Ø21X26X1,5 MM
8 16512119 ELBOW COUPLING
9 8041588 OIL LINE
10 8041590 OIL LINE
11 8032349 RETAINER
12 8111751 PIPE SOCKET
13 41217235 HEXAGON NUT M22X1,5
14 11903140 PLUG M10X1,25
15 4858606 GASKET Ø10X14X1 MM
16 8010505 CLAMP Ø16 MM
17 16997611 THREADED PLUG M20X1,5
18 16605924 SCREW M8X40 MM
19 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
20 17037921 HEXAGON NUT M8X1,25
21 16607434 HEXAGON BOLT M10X16 MM
22 8038043 SPACING BAR
23 17290481 O-RING 3,53x69,44 [UP TO # 328594]
24 8039848 SPACING BAR
25 16605625 HEXAGON BOLT M8X25
26 17458134 SCREW M12X1,75X25 MM
27 8006875 HOSE
28 8041594 RETAINER
