C13ENTX20.00A801

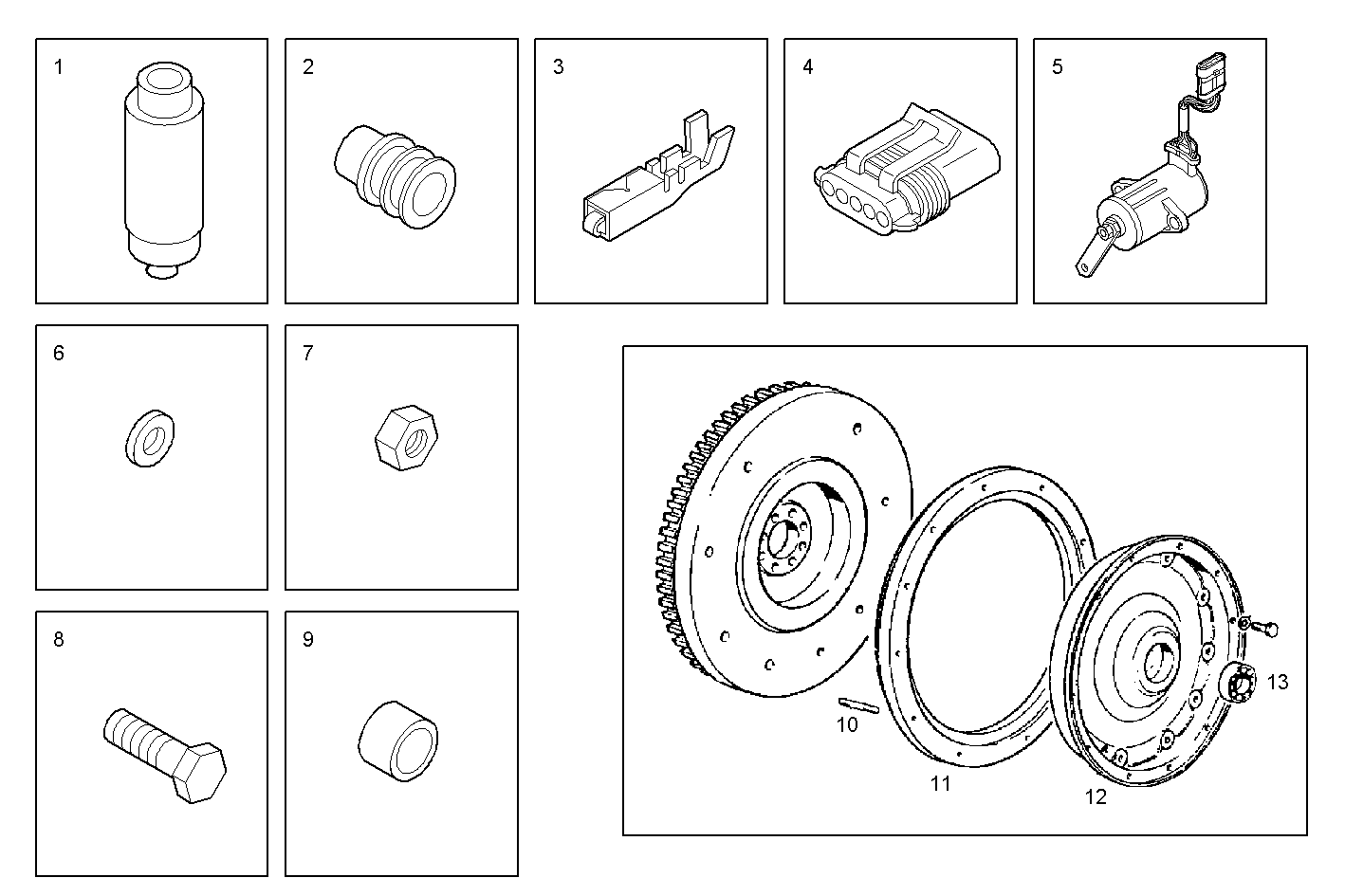

8600.253 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 12332087 | WIRE CONNECTOR |
| 2 | 12332885 | GASKET |
| 3 | 12331654 | TERMINAL |
| 4 | 8031313 | WIRE CONNECTOR assy 5 pin female |
| 5 | 500388702 | TRANSMITTER acceler.pedal position |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 17038131 | HEXAGON NUT M10 |
| 8 | 16693924 | CYLIND-HEAD SCREW M12X35MM |
| 9 | 8101556 | SPACING BAR SP=13,00 MM |
| 10 | 17368924 | STUD M10X80 MM |
| 11 | 4931829 | SPACING BAR |
| 12 | 8011762 | FLANGE |
| 13 | 8005041 | DRIVE BEARING |
