C13ENTX20.00A802

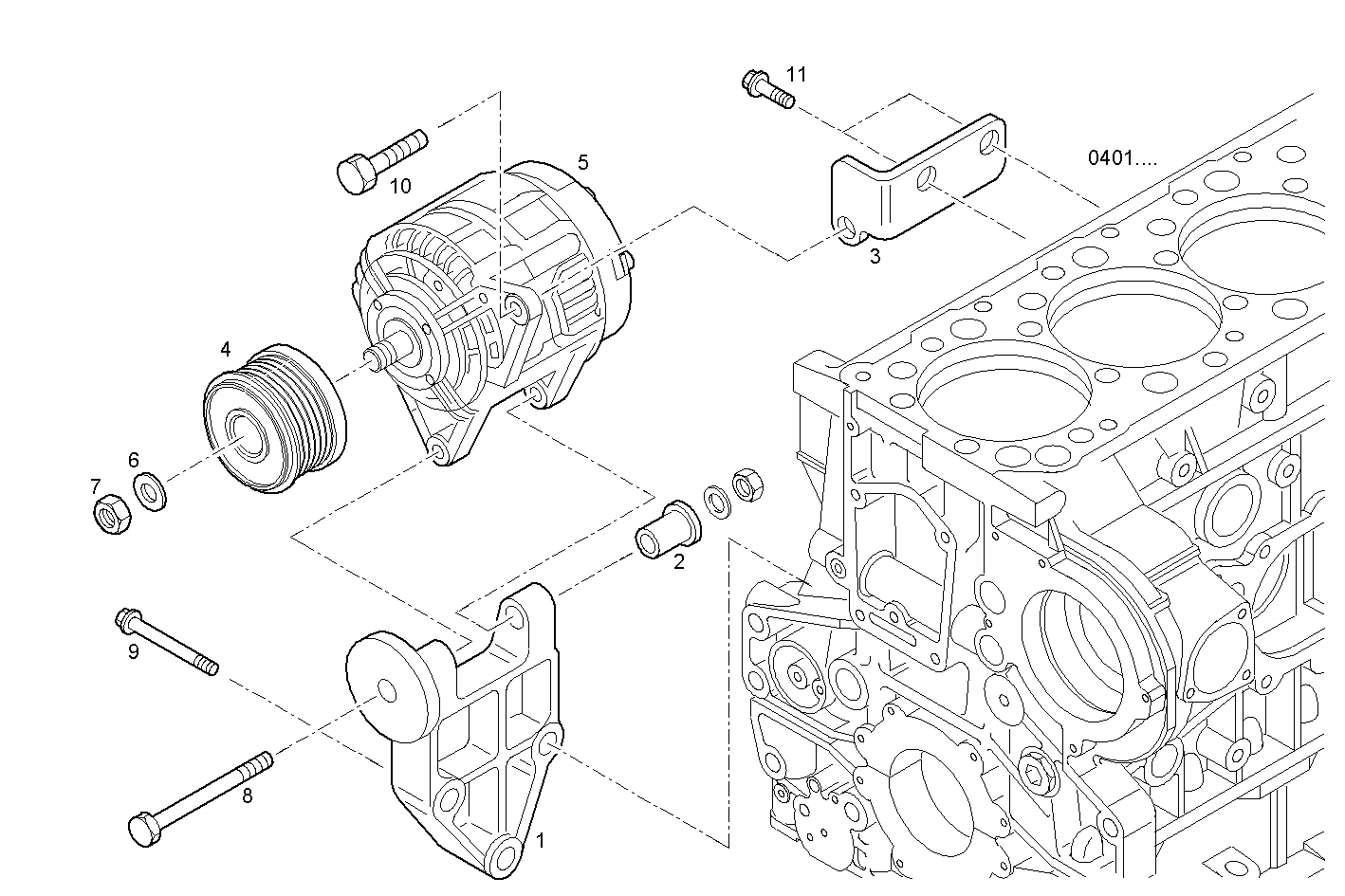

4000.202 GENERATOR

Iveco/FPT GENERATOR

Item Part number Description
1 8046763 GENERATOR SUPPORT
2 8046762 SPACING BAR
3 8046760 GENERATOR SUPPORT UPPER
4 8046756 GENERATOR PULLEY
5 504057813 ALTERNATOR 140A - 14V
6 17095704 WASHER Ø16X30 MM
7 17043431 NUT
8 16599125 HEXAGON BOLT M10X130 MM
9 16587824 HEXAGON BOLT M10X1,5X60 MM
10 16587425 HEXAGON BOLT M10X40 MM
11 16586225 HEXAGON BOLT M8X1,25X16 MM
