C13ENTX20.00A802

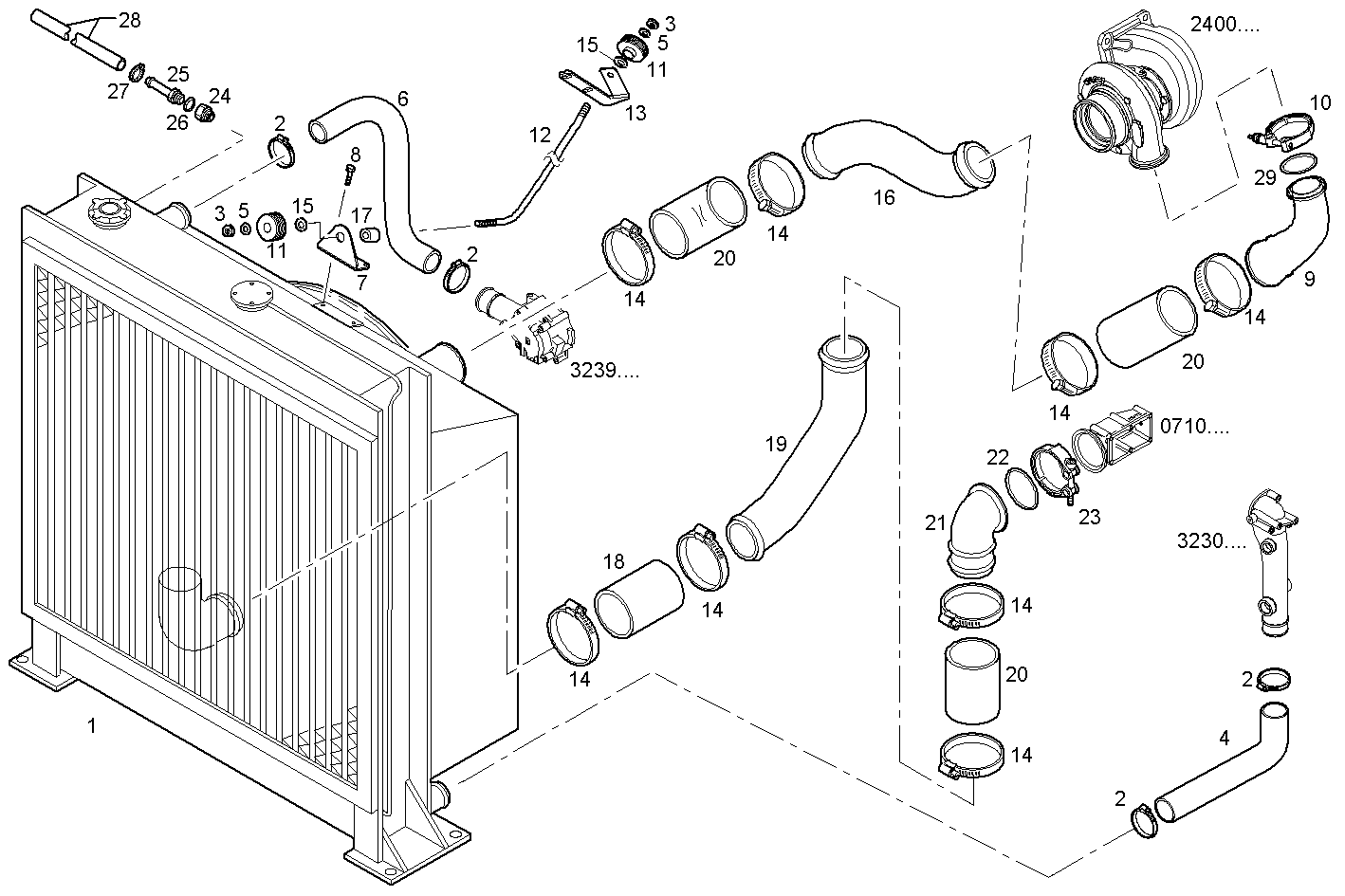

A22480510 RADIATOR 2 CIRCUITS AIR/WATER

Iveco/FPT RADIATOR 2 CIRCUITS AIR/WATER

Item Part number Description
1 8045778 WATER RADIATOR
1 8039384 WATER RADIATOR
2 17765091 CLIP Ø60/80 MM
3 17038425 HEXAGON NUT M12 (8)
4 8040979 RUBBER SLEEVE
5 17091074 WASHER Ø12X24X2,8 MM
6 8040980 RUBBER SLEEVE
7 8019397 RETAINER
8 16605524 HEXAGON BOLT M8X20 MM
9 61318365 AIR PIPE/DUCT
10 4800661 CLIP Ø 75 mm.
11 741569 RUBBER LUG
12 8041271 TIE ROD
13 8041985 RETAINER
14 17765391 CLIP Ø90/110 MM
15 741570 WASHER Ø10X17 MM SP=2,3
16 8044340 AIR PIPE/DUCT
17 741571 SPACING BAR Ø10X17 MM SP=2,3
18 8044863 RUBBER SLEEVE
19 8044868 AIR PIPE/DUCT
20 8030531 TURBOCHARGER HOSE
21 8041915 CONNECTOR SLEEVE
22 17291281 O-RING Ø94,84 MM SP=3,53 MM
23 99435103 CLIP
24 8100963 PIPE SOCKET
25 4935134 OIL LINE
26 4858606 GASKET Ø10X14X1 MM
27 18087993 CLIP Ø8/16 MM
28 19056687 RUBBER HOSE Ø7,5 MM
29 17284681 O-RING Ø61,6 MM SP=2,62 MM
