C13ENTY21.00

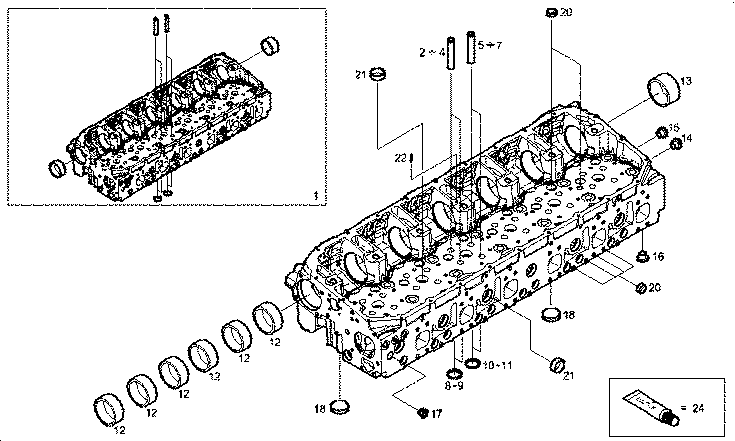

116837 CYLINDER HEAD-COVERS

Iveco/FPT CYLINDER HEAD-COVERS

Item Part number Description
1 5801372235 CYLINDER HEAD
2 504375602 VALVE GUIDE STD. (F INTAKE
3 5801435664 VALVE GUIDE +0,2 (F INTAKE
4 5801435665 VALVE GUIDE +0,4 (F INTAKE
5 504375600 VALVE GUIDE STD. (F EXHAUST
6 5801435666 VALVE GUIDE +0,2 (F EXHAUST
7 5801435667 VALVE GUIDE +0,4 (F EXHAUST
8 504362587 VALVE SEAT STD. (ENGINE) (F INTAKE
9 5801435660 VALVE SEAT +0,20 (ENGINE) (F INTAKE
10 504362588 VALVE SEAT STD. (ENGINE) (F EXHAUST
11 5801435662 VALVE SEAT +0,20 (ENGINE) (F EXHAUST
12 504003914 BUSH EXHAUST
13 504003915 BUSH
14 504051237 THREADED PLUG DIAM=1/4"
15 504138062 PLUG Ø10 MM
16 504138060 LOCK PLUG [FROM # 59639]
17 504182706 THREADED PLUG [FROM # 76547]
18 16991370 LOCK PLUG Ø45 MM
20 14282170 LOCK PLUG Ø20 MM
21 16990870 LOCK PLUG Ø28 MM
22 17255674 DOWEL PIN Ø5 MM [FROM # 76547]
24 2992695 ADHESIVE/STICKER LOCTITE
