C13ENTY22.00

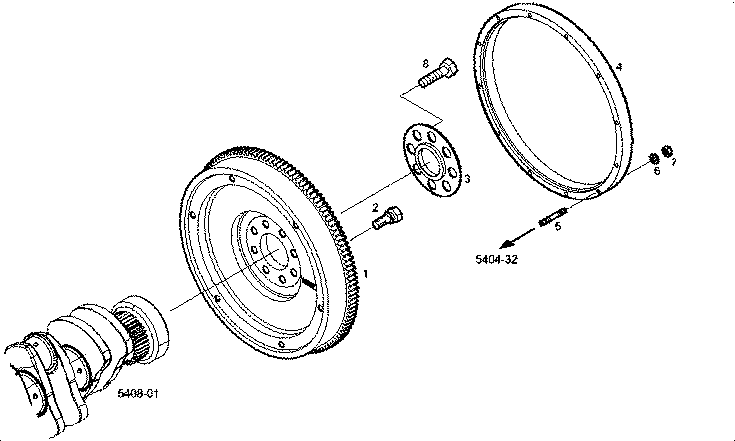

134404 FLYWHEEL ARRANGMENT - OPTION A13230505 FLYWHEEL ARRANGMENT FOR TRANSMISSION

Iveco/FPT FLYWHEEL ARRANGMENT - OPTION A13230505 FLYWHEEL ARRANGMENT FOR TRANSMISSION

Item Part number Description
1 8051239 FLYWHEEL
2 99430395 HEXAGON BOLT
3 8051548 CENTERING RING
4 8051649 SPACING BAR
5 17368924 STUD M10X80 MM
6 17090174 SPRING WASHER Ø10X20 MM
7 17038131 HEXAGON NUT M10
8 16587525 HEXAGON BOLT M10X45 MM
