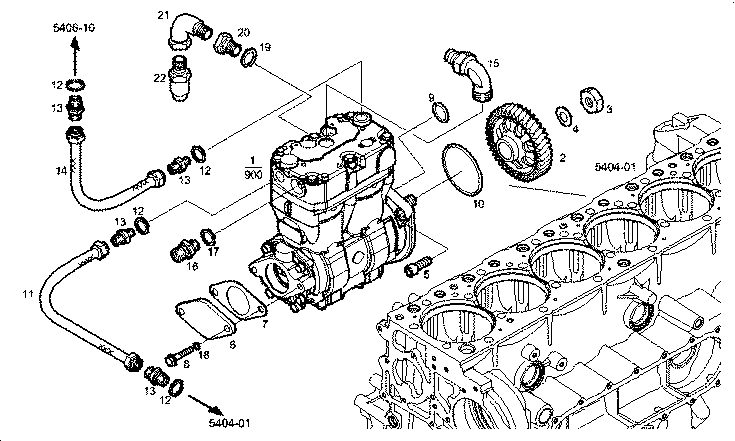

| Item |
Part number |
Description |
|
1 |
504308843 |
AIR COMPRESSOR |
|
2 |
99437433 |
DRIVE GEAR |
|
3 |
504016500 |
NUT |
|
4 |
17095914 |
WASHER |
|
5 |
16693924 |
CYLIND-HEAD SCREW M12X35MM |
|
6 |
8025369 |
PTO COVER |
|
7 |
8025370 |
FLAT ENGINE GASKET |
|
8 |
16691924 |
CYLIND-HEAD SCREW |
|
9 |
17281381 |
O-RING �9,19 MM [FROM TO # 62977] |
|
10 |
17292281 |
O-RING �126,59 MM SP=3,53 MM |
|
11 |
500354892 |
WATER PIPE |
|
12 |
99489020 |
SEAL GASKET �18X26 MM SP=1,5 MM |
|
13 |
16500415 |
PIPE SOCKET |
|
14 |
500354895 |
WATER PIPE |
|
15 |
99456380 |
ELBOW COUPLING M26X1,5 - M36X2 |
|
16 |
61599713 |
THREADED UNION M26X1,5 |
|
17 |
16508560 |
WASHER �26X31 MM |
|
18 |
17090174 |
SPRING WASHER �10X20 MM |
|
19 |
16508060 |
SEAL GASKET �12X15,5 MM |
|
20 |
99476542 |
THREADED UNION M12X1,5 |
|
21 |
98427977 |
ELBOW COUPLING M12X1,5 |
|
22 |
41285123 |
PIPE SOCKET |
