C78ENAM12.00

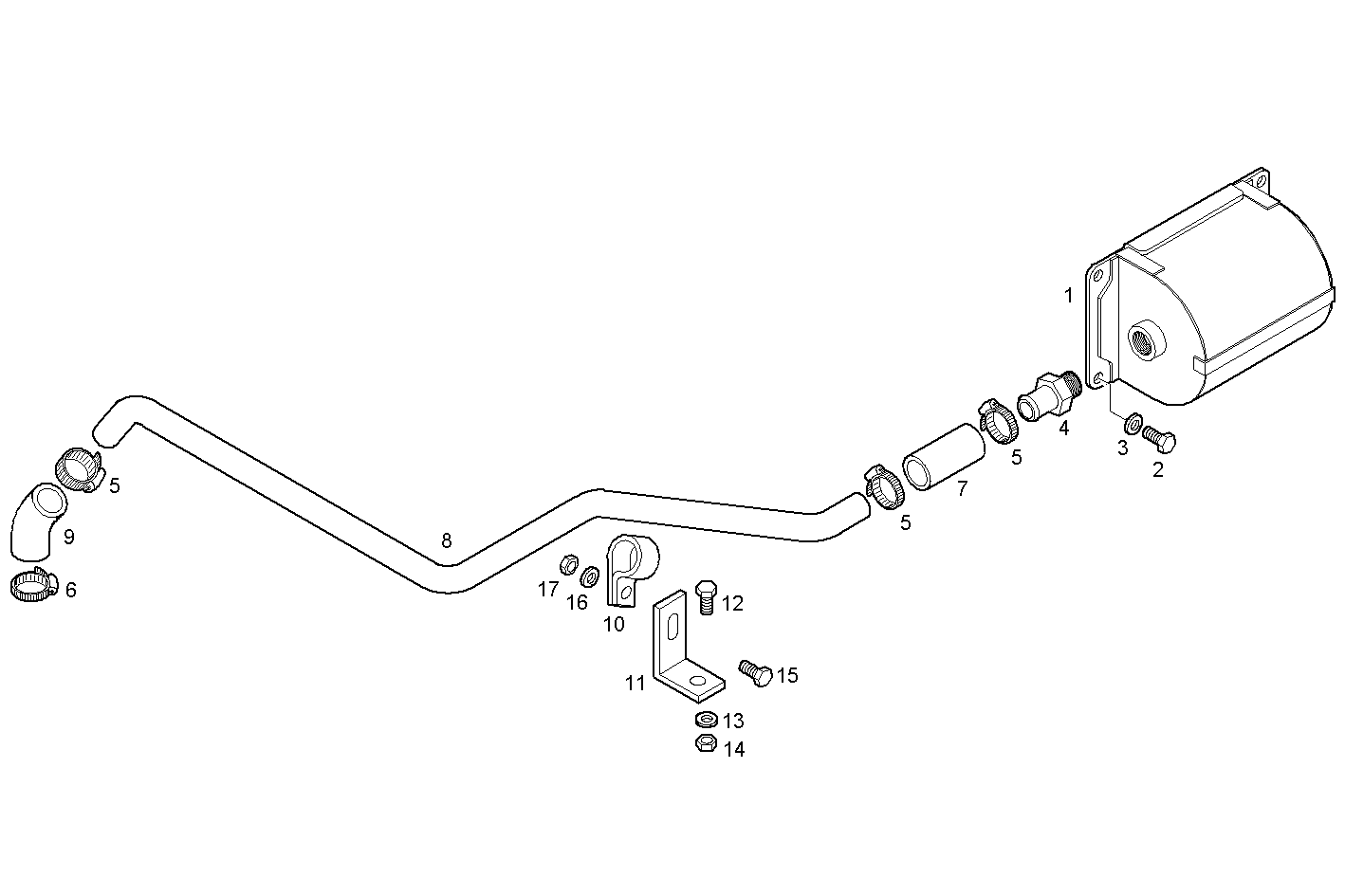

2210.066 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8043703 | AIR CLEANER |
| 2 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 3 | 17090274 | WASHER Ø10X20 MM |
| 4 | 4856492 | THREADED UNION |
| 5 | 12173090 | CLIP |
| 6 | 18088692 | HOSE CLIP m32-50 |
| 7 | 8016336 | OIL HOSE |
| 8 | 8045606 | BREATHER PIPE |
| 9 | 98437331 | RUBBER SLEEVE |
| 10 | 17315390 | FASTENING BRACKET |
| 11 | 8015921 | RETAINER |
| 12 | 16605524 | HEXAGON BOLT M8X20 MM |
| 13 | 17089574 | WASHER Ø8X16 MM |
| 14 | 17037925 | HEXAGON NUT M8X1,25 |
| 15 | 16603677 | HEXAGON BOLT M6X16 MM |
| 16 | 17088474 | WASHER Ø6X12 MM |
| 17 | 17037821 | HEXAGON NUT M6X1 |
