C78ENSM20.10

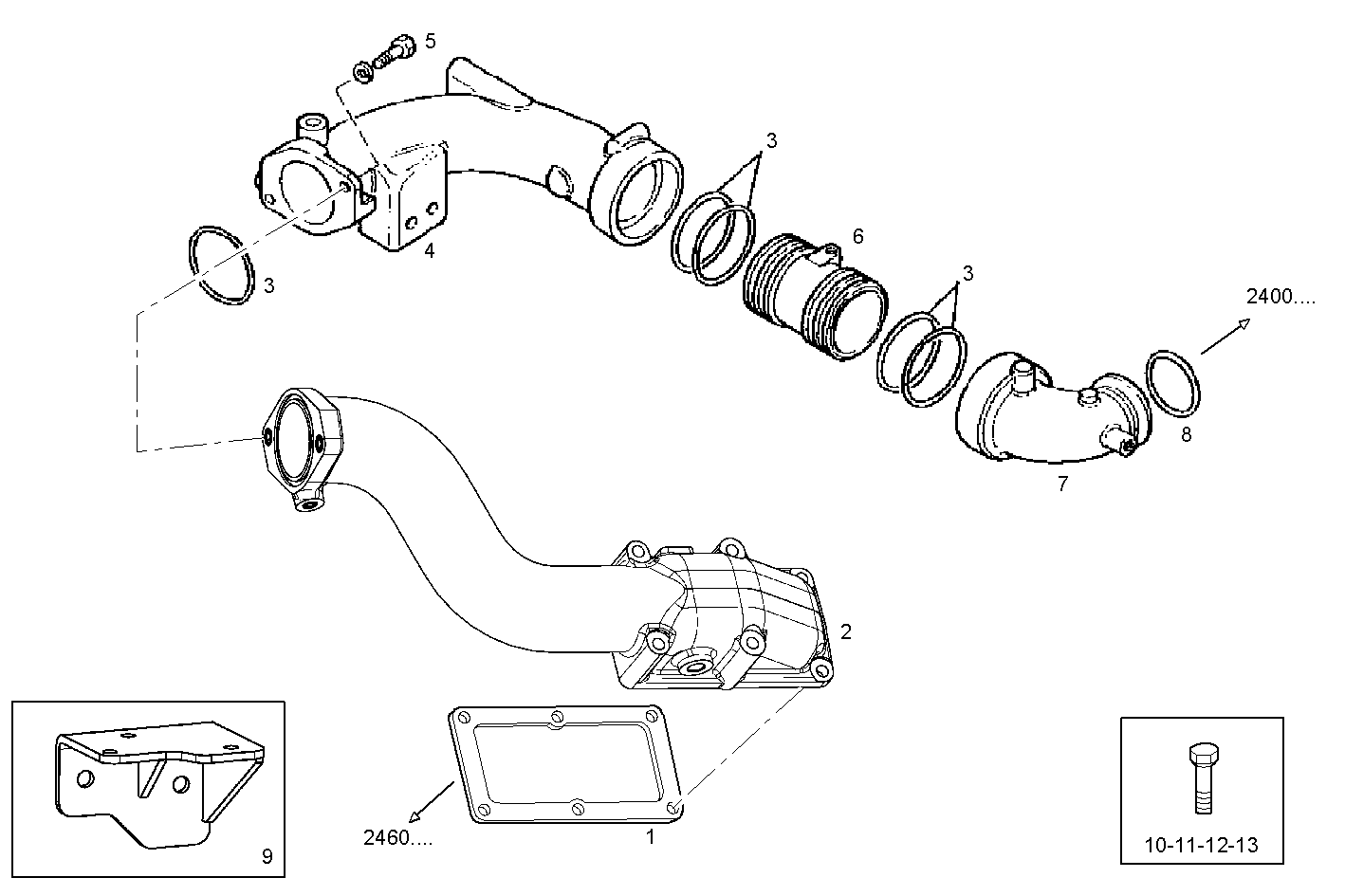

2430.002 EXIT AIR PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 98483071 | FLAT ENGINE GASKET |
| 2 | 8038448 | AIR PIPE/DUCT |
| 3 | 17290581 | O-RING Ø72,63X3,53 MM |
| 4 | 8030546 | AIR PIPE/DUCT |
| 5 | 16587625 | HEXAGON BOLT M10X50 MM |
| 6 | 8009896 | ADAPTER |
| 7 | 8030903 | INTAKE ELBOW |
| 8 | 17284681 | O-RING Ø61,6 MM SP=2,62 MM |
| 9 | 8038240 | RETAINER |
| 10 | 16677735 | HEXAGON BOLT M12X25 MM |
| 11 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 12 | 16593025 | HEXAGON BOLT M10X90 MM |
| 13 | 16587325 | HEXAGON BOLT M10X35 MM |
