C78ENSM20.30

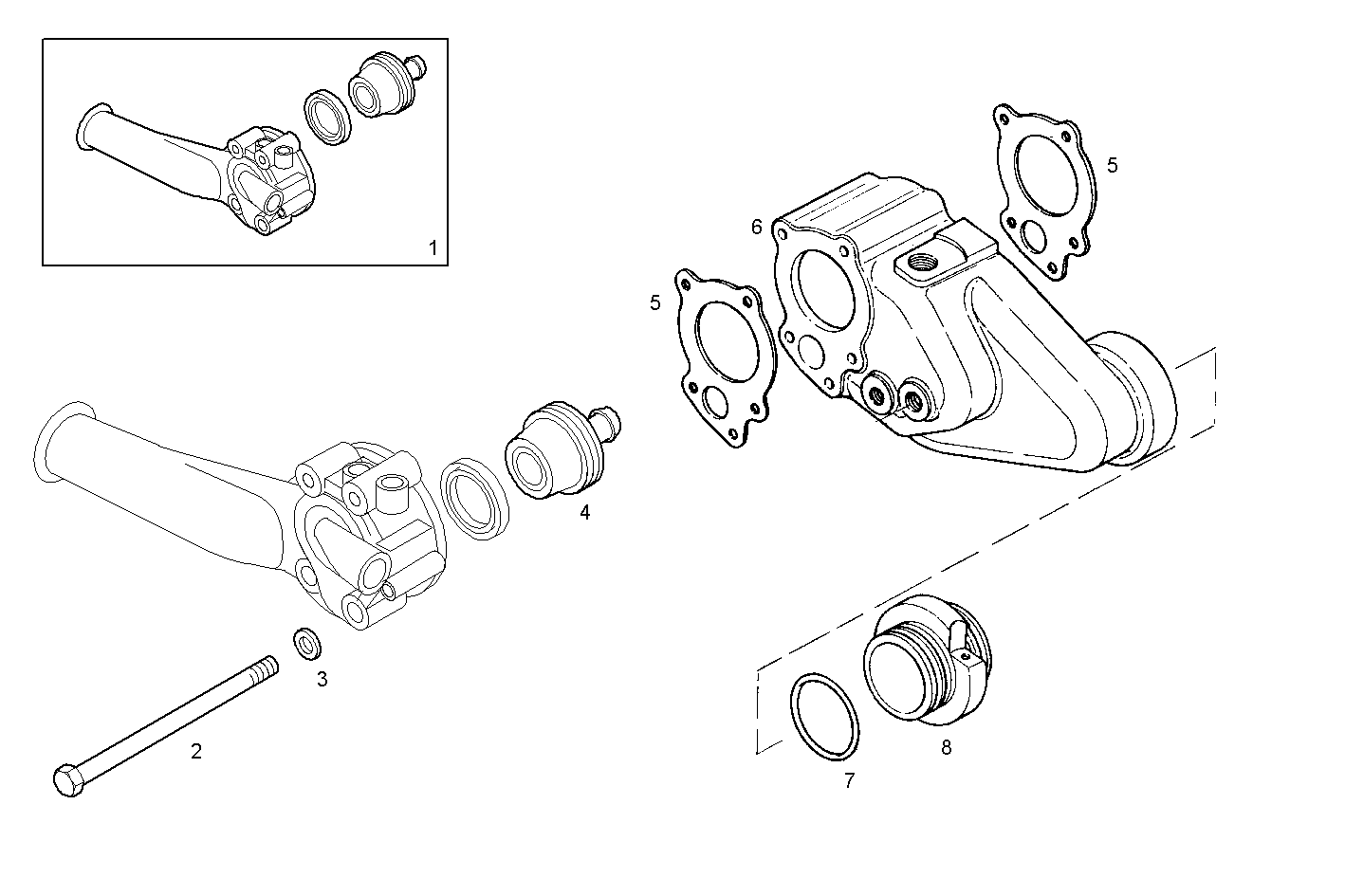

3260.000 TEMPERATURE REGULATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 99459444 | THERMOSTAT BODY |
| 2 | 16046321 | HEXAGON BOLT M8X160 MM |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 504096443 | THERMOSTAT |
| 5 | 99443426 | FLAT ENGINE GASKET |
| 6 | 8029589 | THERMOSTAT BODY |
| 7 | 17290181 | O-RING Ø59,92 MM SP=3,53 MM |
| 8 | 8028161 | SPACING BAR |
