C78ENSM20.30

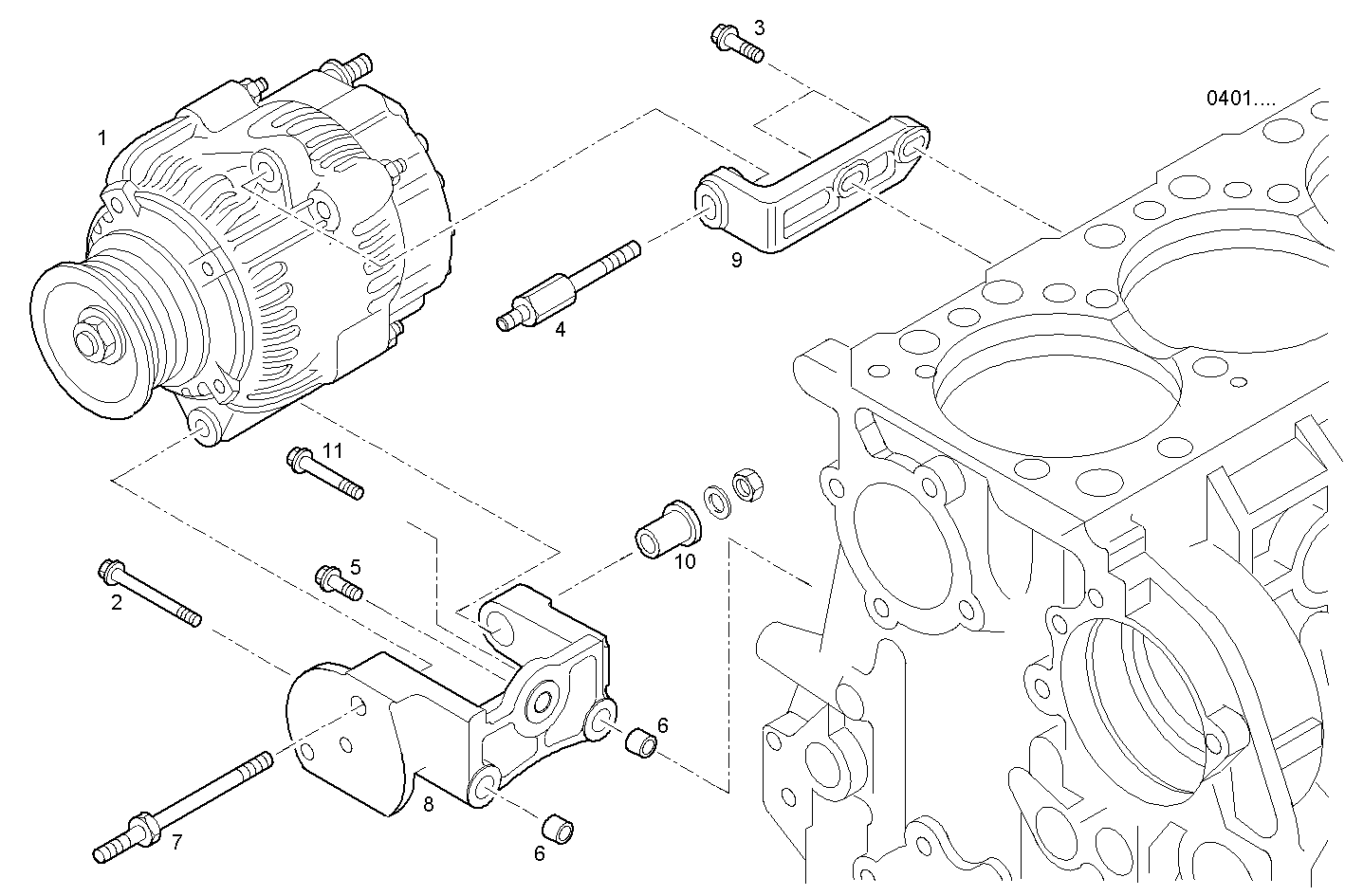

A14200501 ALTERNATOR - 24V - 90A i.p.
| Item | Part number | Description |
|---|---|---|
| 1 | 8036119 | ALTERNATOR ASSY |
| 2 | 8030496 | STUD M10 |
| 3 | 16586524 | HEXAGON BOLT M8X30 MM |
| 4 | 8030495 | STUD M10 |
| 5 | 16587124 | HEXAGON BOLT M10X25 MM |
| 6 | 98405462 | DOWEL PIN Ø10,2 MM |
| 7 | 99474161 | SCREW M10 |
| 8 | 99483766 | GENERATOR SUPPORT |
| 9 | 8033776 | FASTENING BRACKET |
| 10 | 99484032 | SPACER BUSH |
| 11 | 16586624 | HEXAGON BOLT M8X35 MM |
